ENGLISH SWAGTRON EB-5 14" Electric Bike
Section 2. Folding, Unfolding & Adjusting Your SWAGTRON
®
EB-5 E-Bike
WARNING: Be careful not to position your fi ngers between the latch and the frame. Doing so may result in
injury.

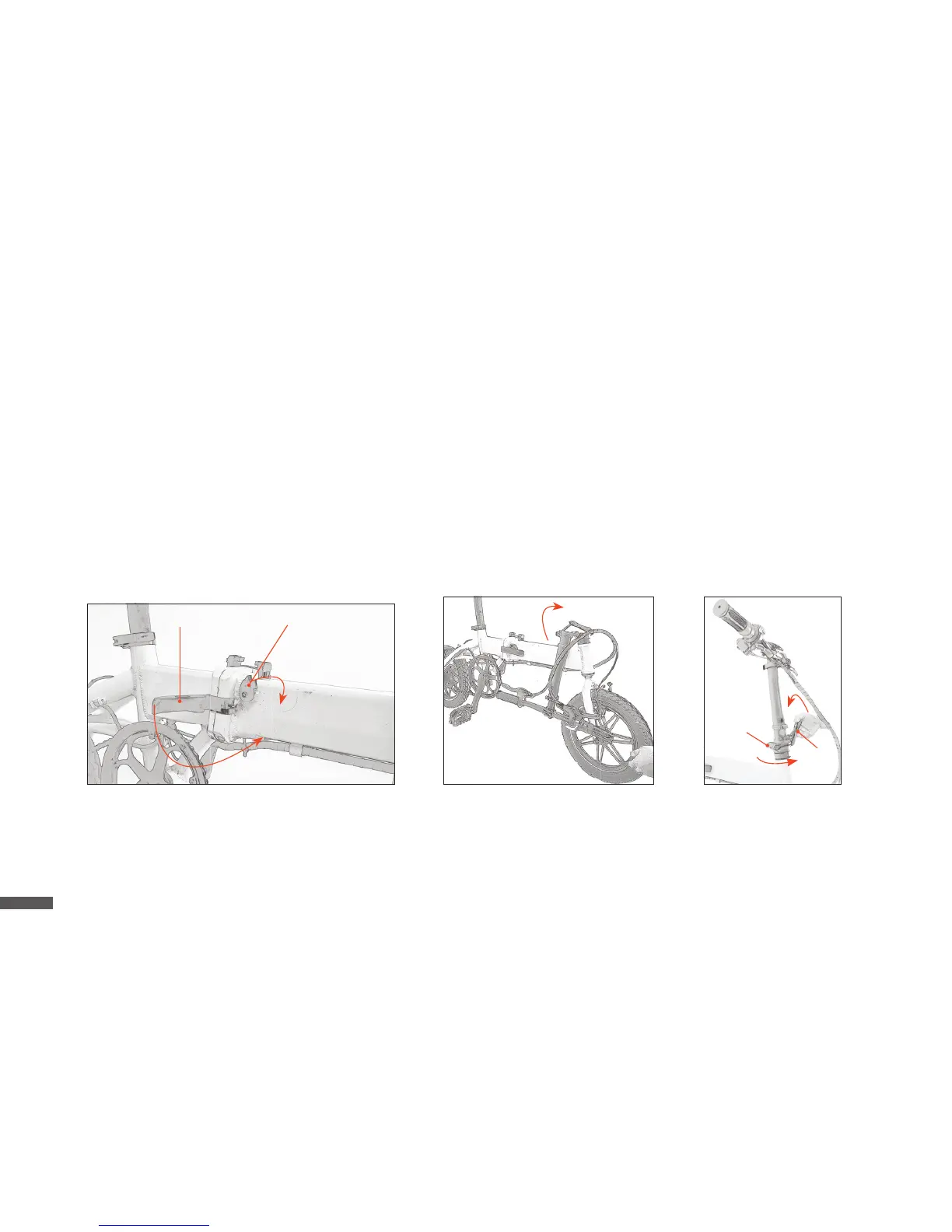

2.1 Unfolding the Head Tube & Frame
Step 1. Unfold the rear wheel / section and hold your E-Bike upright with the kickstand.
Step 2. Push the latch closed so that it's parallel with the bike's frame then turn the lock down towards the
latch to lock it in place (fi g.1).
Step 3. Pull the head tube and handlebars upright (fi g.2)
Step 4. Fold the latch up, then turn the lock so that its end is inserted into the latch to lock it in place
(fi g.3)
Latch Lock
fi g.1 fi g.2 fi g.3
Latch
Lock
