Swann NVK-460 - Getting to Know Your NVR Ports

4
Congratulations on the purchase of your Swann NVR. This quick start guide will assist you on getting your NVR up and
running as soon as possible. We recommend that you connect everything and give it a try before you do a permanent
installation, to make sure nothing was damaged during shipping. On the other side is a detailed connection map which

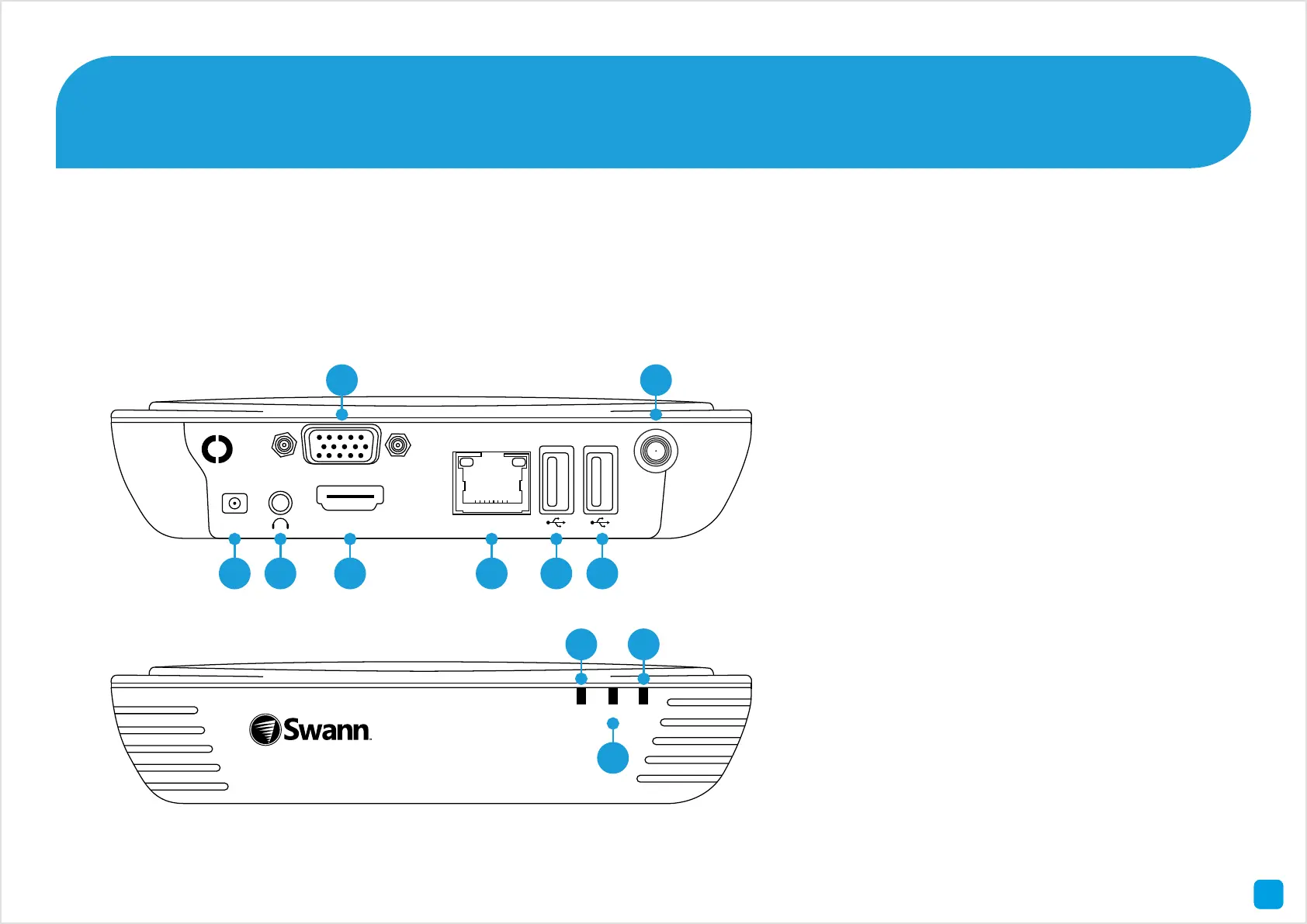

illustrates the various connections on the NVR.
1) Power
2) Audio Out
3) VGA
4) HDMI
5) LAN
6) USB
7) USB
8) Wi-Fi Input
9) LAN LED
10) HDD LED
11) Power LED
2
Getting to know your NVR
DC 5V
HDMI
VGA
LAN
1 2 4
3
5 6 7
8
LAN HDD PWR
9 11
10
