Oil level
4cm

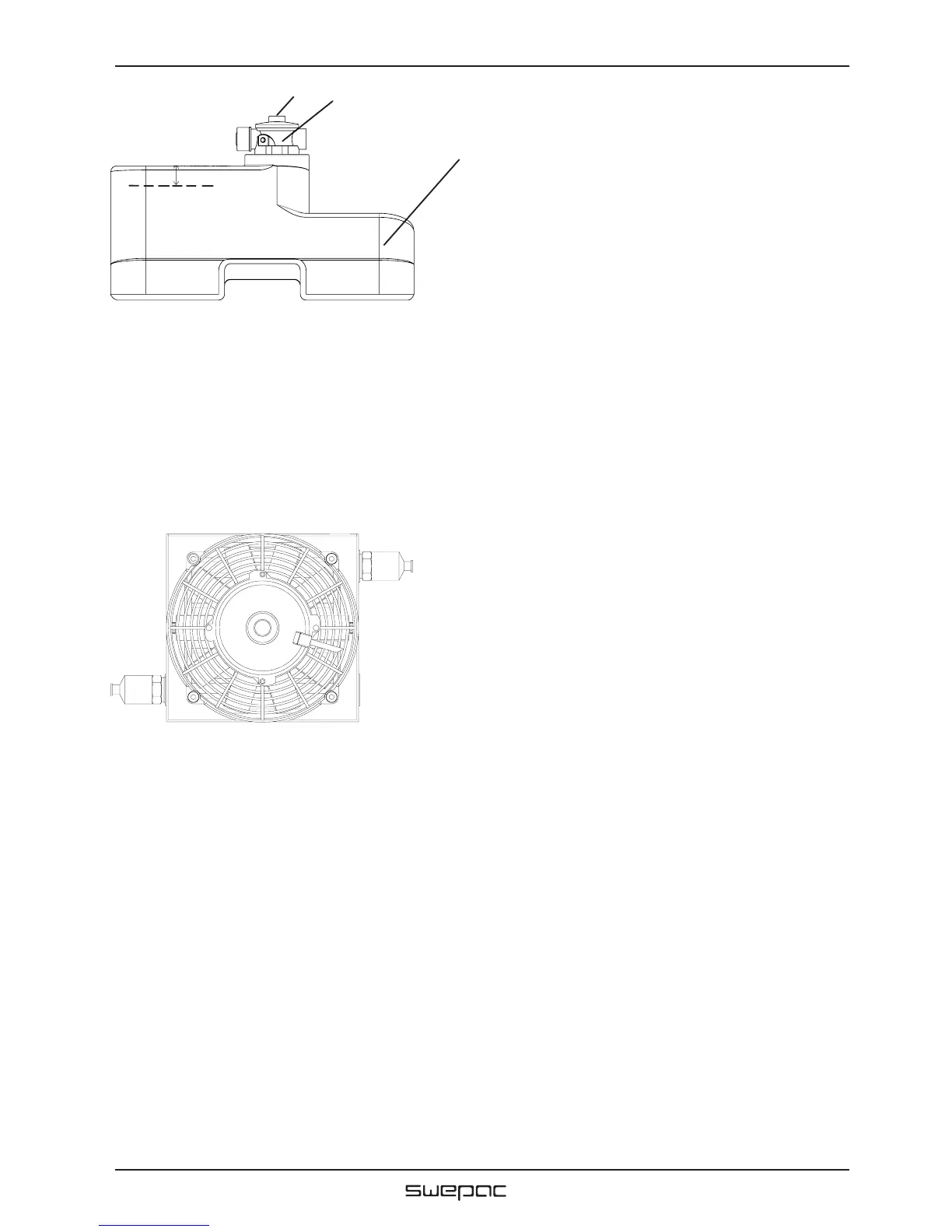

Hydraulic Oil Level Check
Check every day that the hydraulic connections do not leak
or wear during operation. The oil level in the tank must be
according the picture, approximately 4 cm below from the
top of the tank. Fill up hydraulic oil as described below.
Remove the battery cover. Remove the tank cover (1).
Remove the lter (2). Fill up hydraulic oil and reassemble
lter and cover. The cover must be well tightened when
reassembling.
Vibration Element
Check regularly that there is no oil leak. Seal any leaks.
Note! Machines must never be operated if a leak is sus-
pected.
Note! The oil level in the vibration element is 0,5 liter.
Rubber Damper
Check the condition of the rubber dampers regularly.
Replace damaged dampers.
Hydraulic Oil cooler
The machine is equipped with a hydraulic oil cooler. The
cooler start working when the hydraulic oil reach a
temperature +50 ˚C. Afterwards subsequently switch to and
from the coolers as necessary. After shutting off the
machine, the cooling fan run for a short time, which is
normal.
Note! If the indicator light for hydraulic temperature (see
the panel picture for each machine) lights red it indicates
that the hydraulic oil temperature is to heat. Continue dri-
ving the machine means worse compaction capability. Stop
and check the hydraulic oil cooler.
