Electrical Systems
47
CONTROL PANEL AC85 POWER
CONTROL

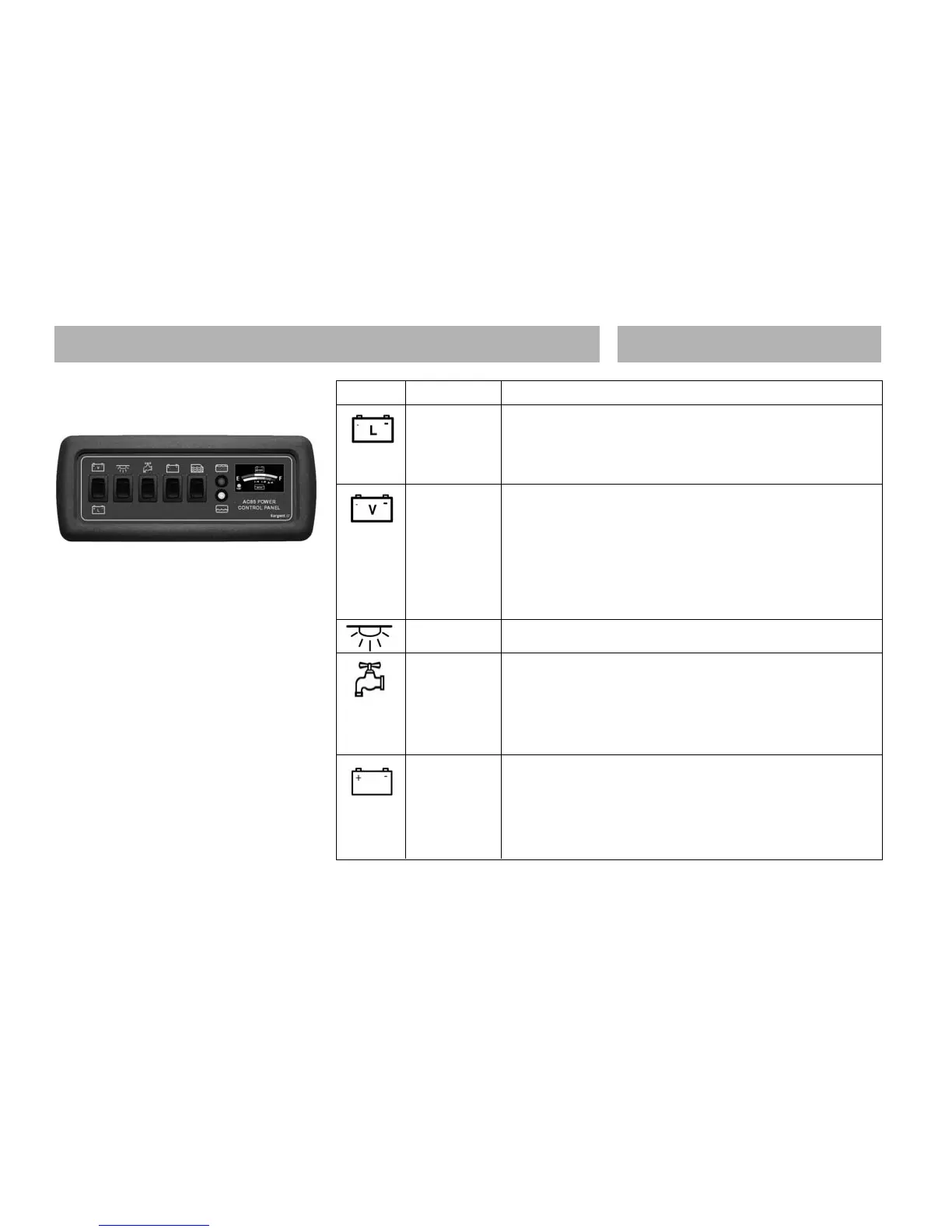

Symbol Function Description
12v power
selection -
leisure battery
12v power
selection -
vehicle battery
Awning light
Water pump
Battery level
test
This switch turns on (or off) the 12-volt power from the Leisure
battery. Place the switch in the down position to draw power from
the Leisure battery. Place the switch in the centre position to turn
the power off.
This switch turns on (or off) the 12-volt power from the Vehicle
battery. Place the switch in the up position to draw power from the
Vehicle battery. Place the switch in the centre position to turn the
power off.
Please note that the vehicle battery should only be used for short
periods of time / small loads otherwise the battery may become
discharged and could prevent the vehicle from starting.
This switch operates the external awning light.
This switch turns on power to the internal water pump ready for
use. It can be used to turn off the pump over night to avoid any
noise from the pump.
Note: A green indicator lamp will illuminate within the bottom left
corner of the battery gauge when the pump motor is running.
This switch is used to display the battery voltage level. Press and
hold the switch to display the battery level on the gauge.
The green region indicates a battery with a good charge, the yellow
region indicates a battery with an adequate charge, and the red
region indicates a battery that requires charging.
