Equipment Details
OMNISTEP DOUBLE STEP
OPERATION
- The OMNISTEP is operated by the lever
switch.
- IMPORTANT: When extending the step,
hold the switch until the step is completely
extended. NEVER MOUNT THE STEP IF
RETRACTED OR IF NOT FULLY
EXTENDED, because then the blocking is
not working and the motor can be
damaged.
- Check if the step is retracted before
departure.
MAINTENANCE
Dirt and frost can prevent the step from
operating properly. In this case the moving
parts should be cleaned or defrosted. All
points of movement are layered in
maintenance-free bearings.
IN CASE OF ELECTRICAL BREAK DOWN
If the step does not retract by motor:
- Loosen the square connection according to
fig. 2 (actions 1, 2 and 3), push the
footboard in (4) and tie it to the frame
(fig. 3).
CURRENT DRAWN
- 7 A. When fully extended or retracted: 19 A

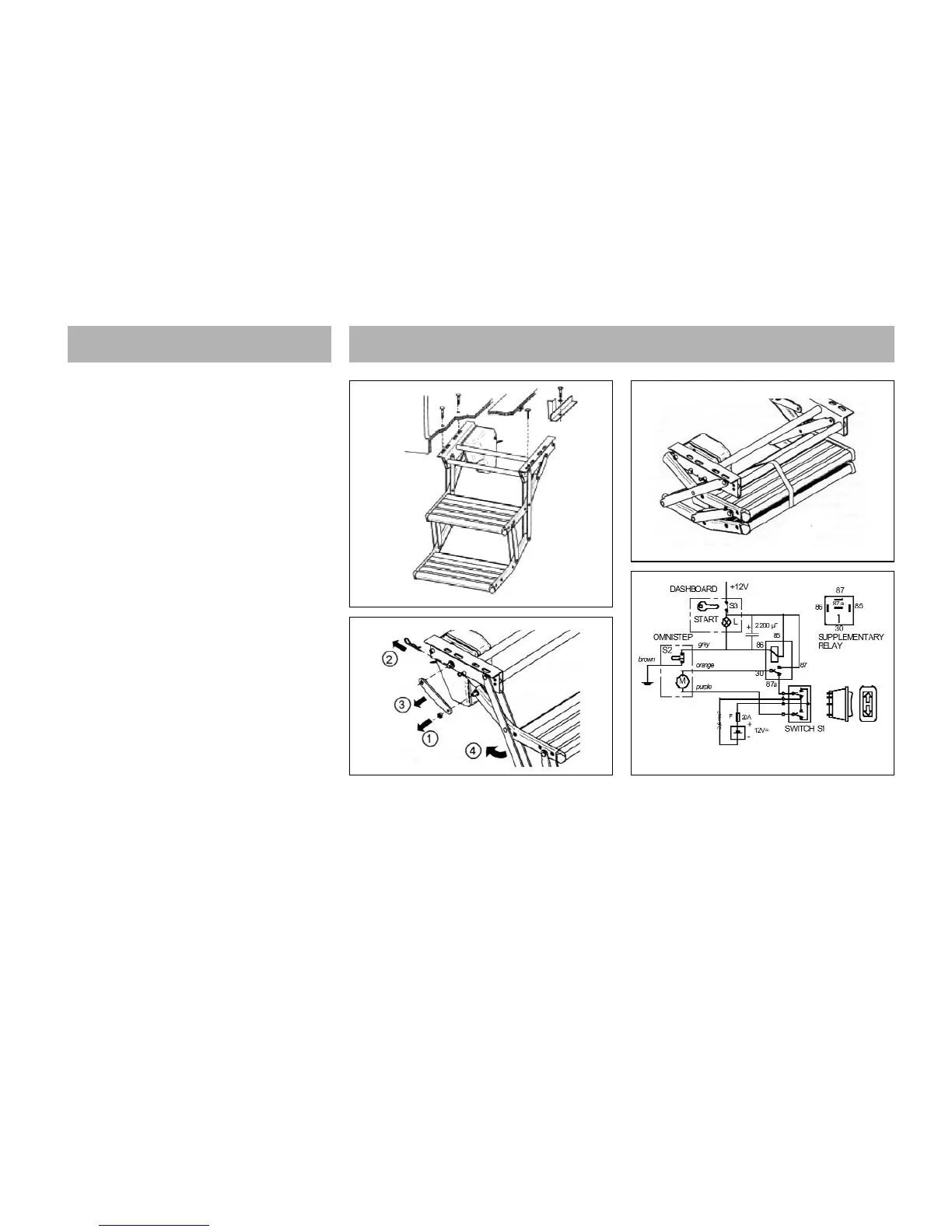

Fig. 1
Fig. 2
Fig. 3
Fig. 4
