Swift Rio User Manual

Equipment Details
The boiler is now emptied to the outside
through the safety/drain valve. Place a
bucket beneath the outlet to check whether
the water content has completely drained
away (12 litres). There is no guarantee
cover for damage caused by frost!
GAS OPERATION
(HEATING AND HOT WATER)

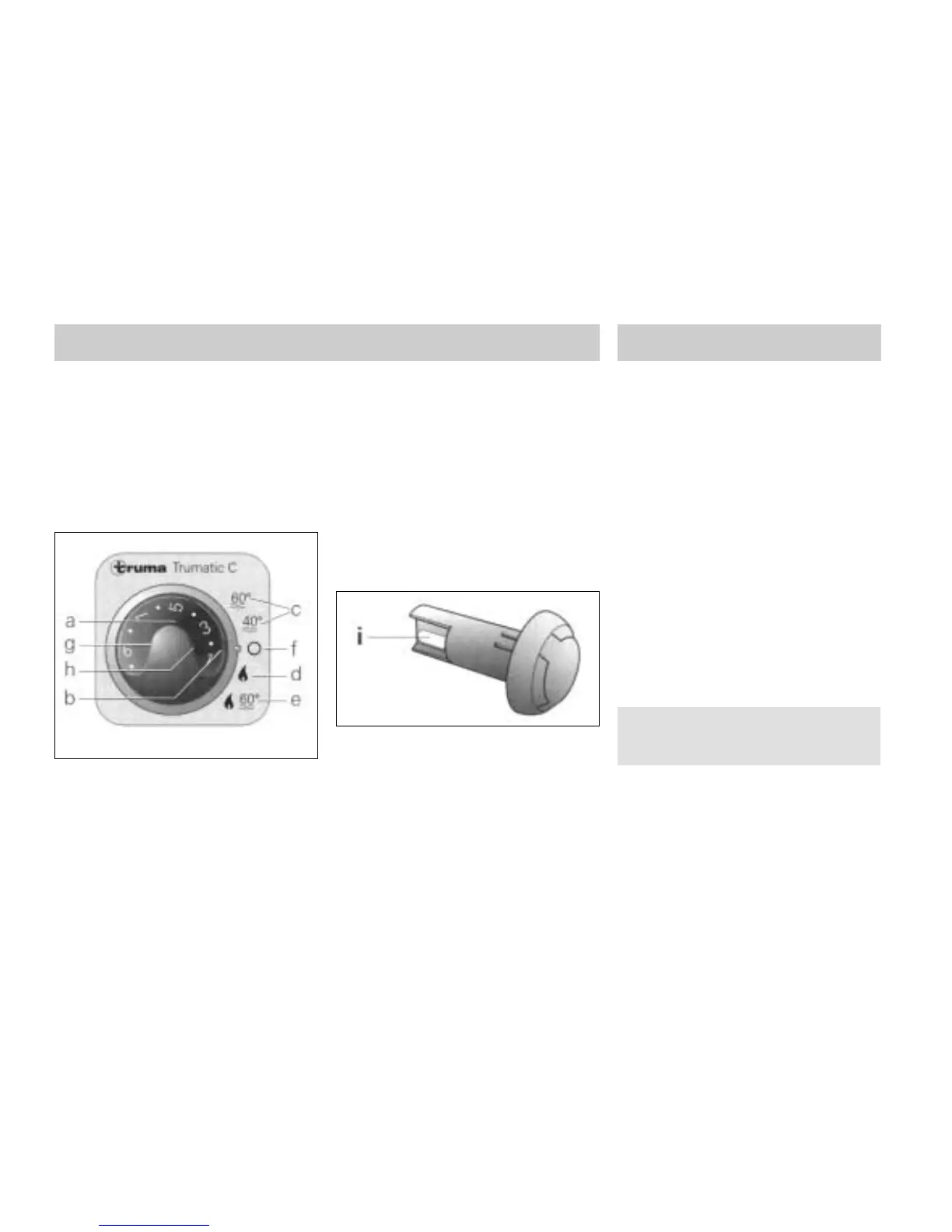

a = Rotary switch for room temperature
(1-9)
b = Green "Operation" monitor lamp
c = Summer operation (water temperature
40°C or 60°C)
d = Winter operation (heating without hot
water requirement)
e = Winter operation (heating with hot
water requirement)
f = Rotary "Off" switch
g = Yellow "Boiler heating phase" monitor
lamp
h = Red "Fault" monitor lamp
When using vehicle-specific switches: refer
to operating instructions of vehicle
manufacturer.
Room thermostat
i = Room temperature sensor
To measure the room temperature, an
external room temperature sensor (i) is
located in the vehicle. The location of the
sensor is determined individually by the
vehicle manufacturer, depending on the
vehicle type; consult the operating instructing
for your vehicle for further details.
The thermostat setting on the operating
element (1-9) must be determined individually
depending on the heating requirement and
the type of vehicle. For an average room
temperature of about 23°C, we recommend a
thermostat setting of about 6-8.
Taking into operation
1. Check that the cowl is not obstructed.
Always remove any covers, open deck
cowl on boats.
In winter, if a roof chimney is fitted, it is
recommended that a chimney extension
be fitted (see Accessories). This must be
removed when the vehicle is on the move.
To run the chimney through the roof on a
caravan, a chimney extension piece is
likewise used, which must be fixed to the
roof with clamp rings (see Accessories).
2. Turn on gas cylinder and open quick-
acting valve in gas supply line.
Attention: Heating operation is basically
possible without restriction with or
without water content.
SUMMER OPERATION
(HOT WATER ONLY)
Set the rotary switch to Summer operation
(c), 40°C or 60°C.
Once the water temperature which has been
set (40°C or 60°C) has been reached, the
burner will switch off and the yellow monitor
lamp (g) will go out.
