WINTER OPERATION
Heating with hot water requirement:
1. Set the rotary switch (a) to the desired
thermostat setting (1-9). When the system
is switched on, the green monitor lamp
(b) will light up, and shows the setting for
the room temperature.
2. Set the rotary switch to the operational
setting "e".
The device automatically selects the output
stage required, depending on the
temperature difference between the room
temperature which has been set and the
temperature at the particular time. Once the
room temperature set on the operating unit
has been reached, the burner switches back
to the lowest stage, and heats the water
content to 60°C. The yellow monitor lamp (g)
indicates the heating-up phase is in
progress, and goes out once the appropriate
water temperature has been reached.
Heating without hot water requirement:
1. Turn the rotary switch (a) to the desired
thermostat setting (1-9). When the system
is switched on, the green monitor lamp
(b) will light up, and shows the setting for
the room temperature.
2. Set the rotary switch to the operational
setting "d".
The device automatically selects the output
stage required, depending on the
temperature difference between the room
temperature which has been set and the
temperature at the particular time. Once the
room temperature set on the operating unit
has been reached, the heating will switch off
(regardless of the water temperature).
If the boiler is filled, the water will
automatically be heated at the same time.
The water temperature is then dependent on
the heating output being given off, and the
duration of heating required to reach the
desired room temperature.
In this operational mode, the yellow monitor
lamp (g - Boiler Heat-up Phase) only lights
up if the water temperature is below 5°C.
Attention: Heating operation is basically
possible without restriction with or
without water content.
SWITCHING OFF "GAS OPERATION"
Switch heating system off at the rotary
switch (f).
Always drain water contents if there is a
risk of frost!
If the appliance is not to be used for a
prolonged period, close the quick-acting
valve in the gas supply and turn off the gas
cylinder.
RED INDICATOR LAMP "FAILURE"
In the event of a fault, the red monitor lamp
(h) will light up.
Please consult the Trouble-Shooting
Instructions for possible causes.
Release is effected by switching the system
off and then on again.
230 V ELECTRICAL OPERATION
(450 W/2 A) - TRUMATIC C EL ONLY -
(HOT WATER ONLY)

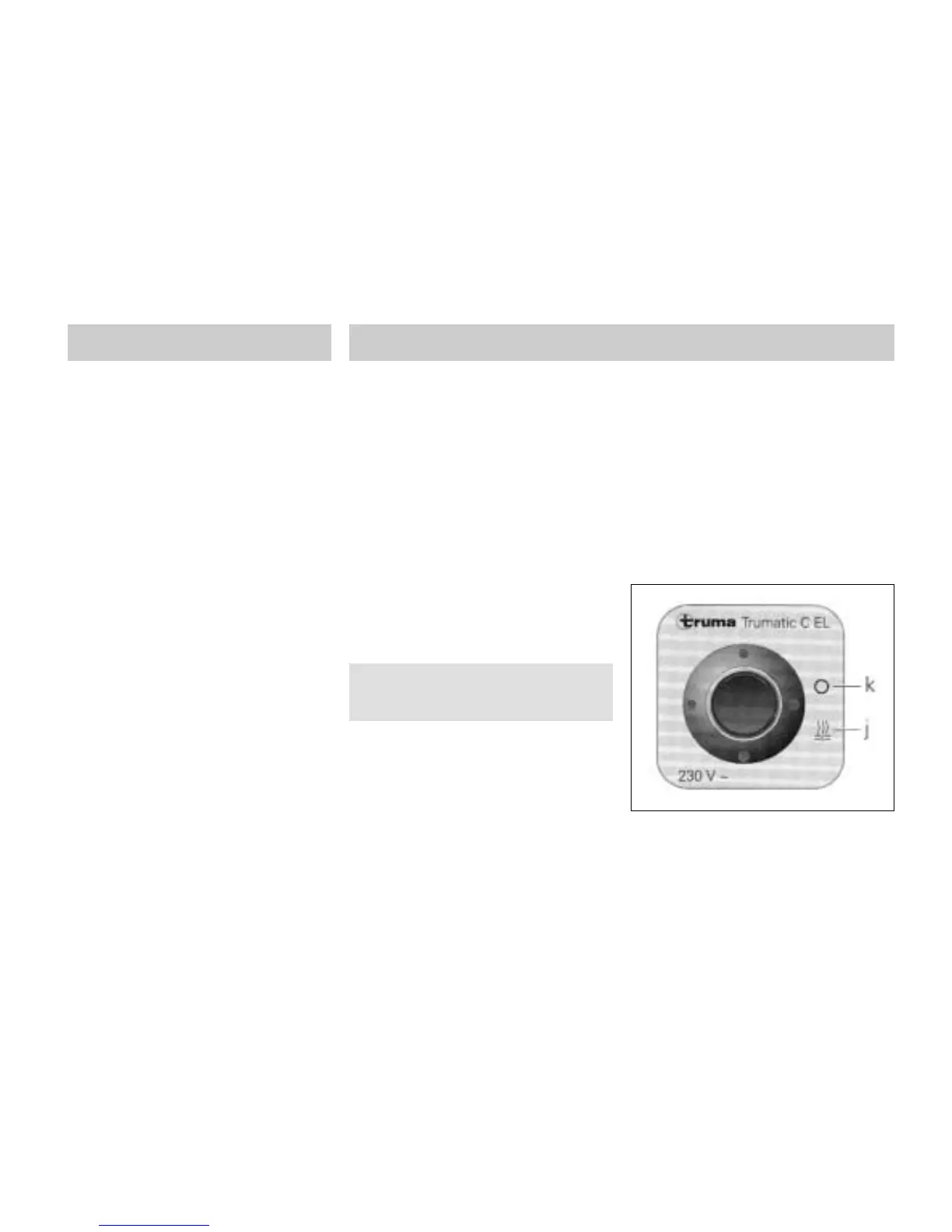

j = Rocker switch "On"
k = Rocker switch "Off"
