Alde 3020 - 113
Colour Touch Operating
Instruction
This quick start guide allows end users to
confidently use the core features of their
Alde control panel. See the operating and
installation instructions for the Alde control
panel for more details.
Important: Please read the operating
instructions for the Alde 3020 Compact HE
boiler before using the system.

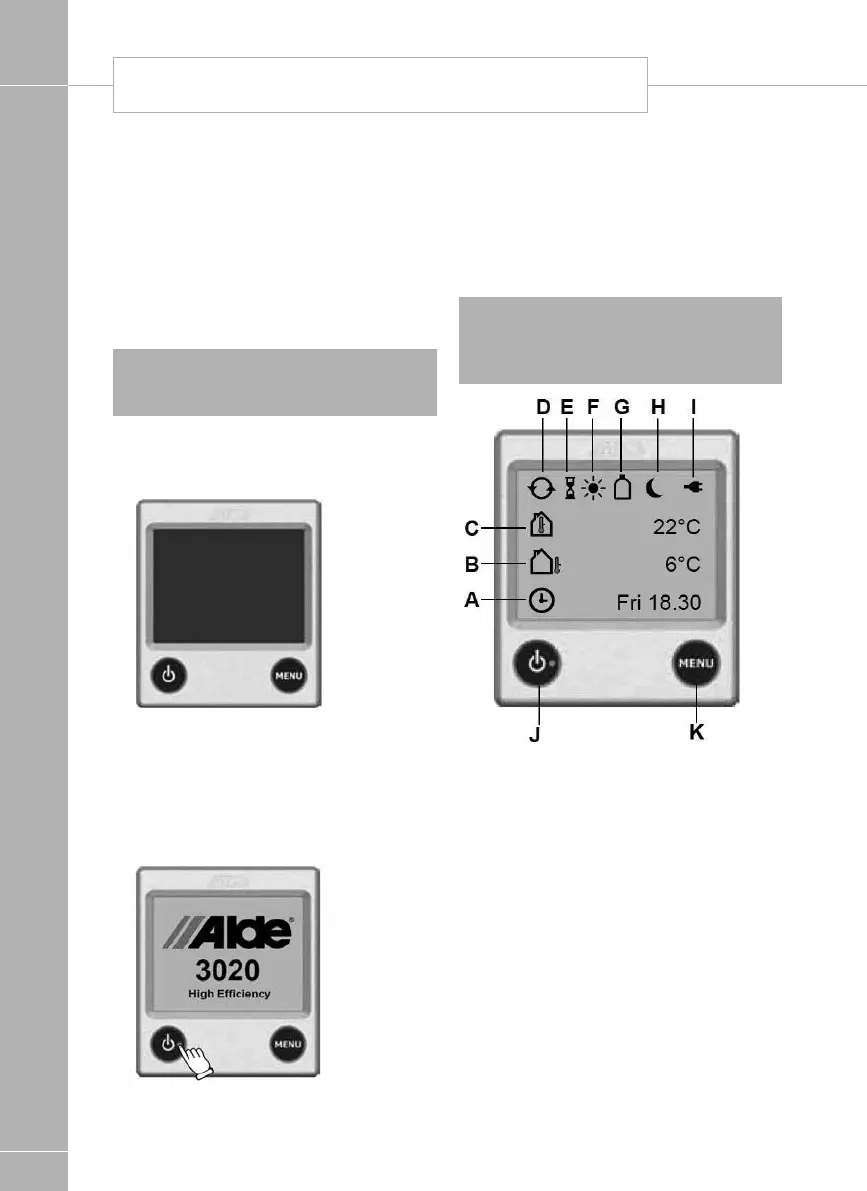

1. Starting the system
i. Both the control panel and boiler are off.
ii. To start the system, press the Power button
on the control panel. The Splash Screen is
displayed and green LED is lit. The boiler will
now start with the previously saved settings
(factory settings by default).
The system will now be drawing variable
0.2–1 A of current from the 12v supply.
2. Standby screen
The Standby Screen is displayed after the
Splash Screen. This screen contains useful
information about the status of your heating
system.
Note: If Standby Screen is set to “Dark” in
Backlight settings, the Standby Screen will
not be displayed, the screen will be dark
unless touched.
A. Clock
Clock is enabled. Day of the week and time
shown.
B. Outdoor temperature
Optional outdoor temperature sensor required.
C. Room temperature
Measured at the control panel.
(Optional discrete room temperature
sensors available).
D. Circulation pump
Central heating circulation pump is active.
E. Delayed start
Delayed Start/Cycle is enabled.
F. Day mode
Day Mode active.
G. Gas cylinder status
Gas Cylinder Status. Full/empty and active
