Stabiliser unit
To operate the stabiliser (once coupled to the
towball), simply press the stabiliser lever down
as far as it will go (Fig 9/Item 3).
To ensure the stabiliser is correctly coupled,
check the arrowhead lines up with the black
line marked 2 (Fig 9 /Item 4 and Fig 13/C).
Uncoupling
Pull the stabiliser lever up as far as it will go,
open the coupling handle and lift the AKS
3004 from the towball. With larger nose loads,
coupling and uncoupling can be made easier
by using the jockey wheel to assist lifting.
Note: The friction pads (Fig 10/Items 1, 2
& 3) are pressed against the towball and
hence generate a stabilising/damping force.
These pads are therefore subject to wear
over time, however they will have a long
service life (circa.30,000 miles), provided
they are well maintained and kept free of
grease/dirt.
Operating instructions
AL-KO

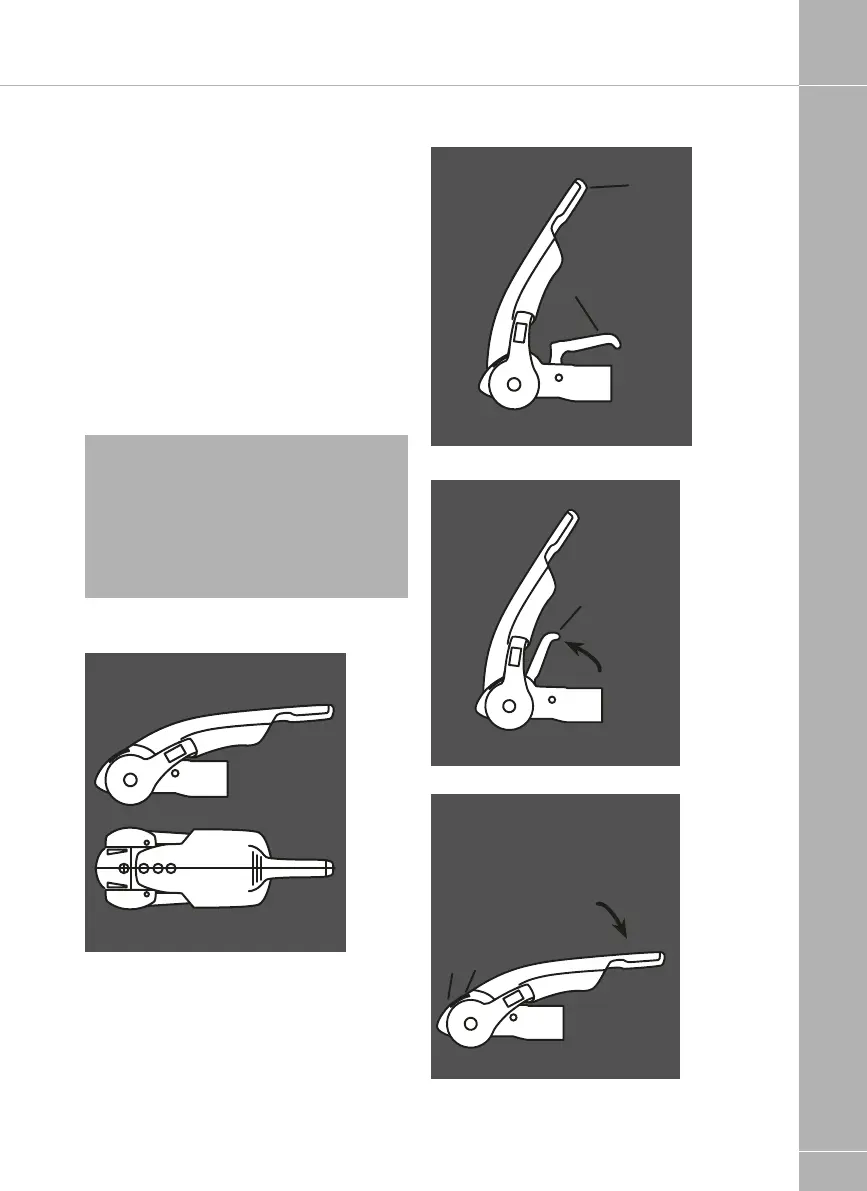

Figure 6 - AKS 3004 stabiliser
1
2
Figure 7 - Raise stabiliser lever
1
Figure 8 - Pull coupling handle up
3
4
2
Figure 9 - Correct engagement with towball
