Fontan Mobilstar M, Fontan Mobilstar E, Fontan Mobilstar ER
Commissioning - generally applies to all device variants M, E and ER
The Fontan Mobilstar “M”, “E” and “ER” models are loaded onto vehicles and used outdoors for the control of pests,
mosquitoes and desert locust as well as for plant protection measures in plantations.

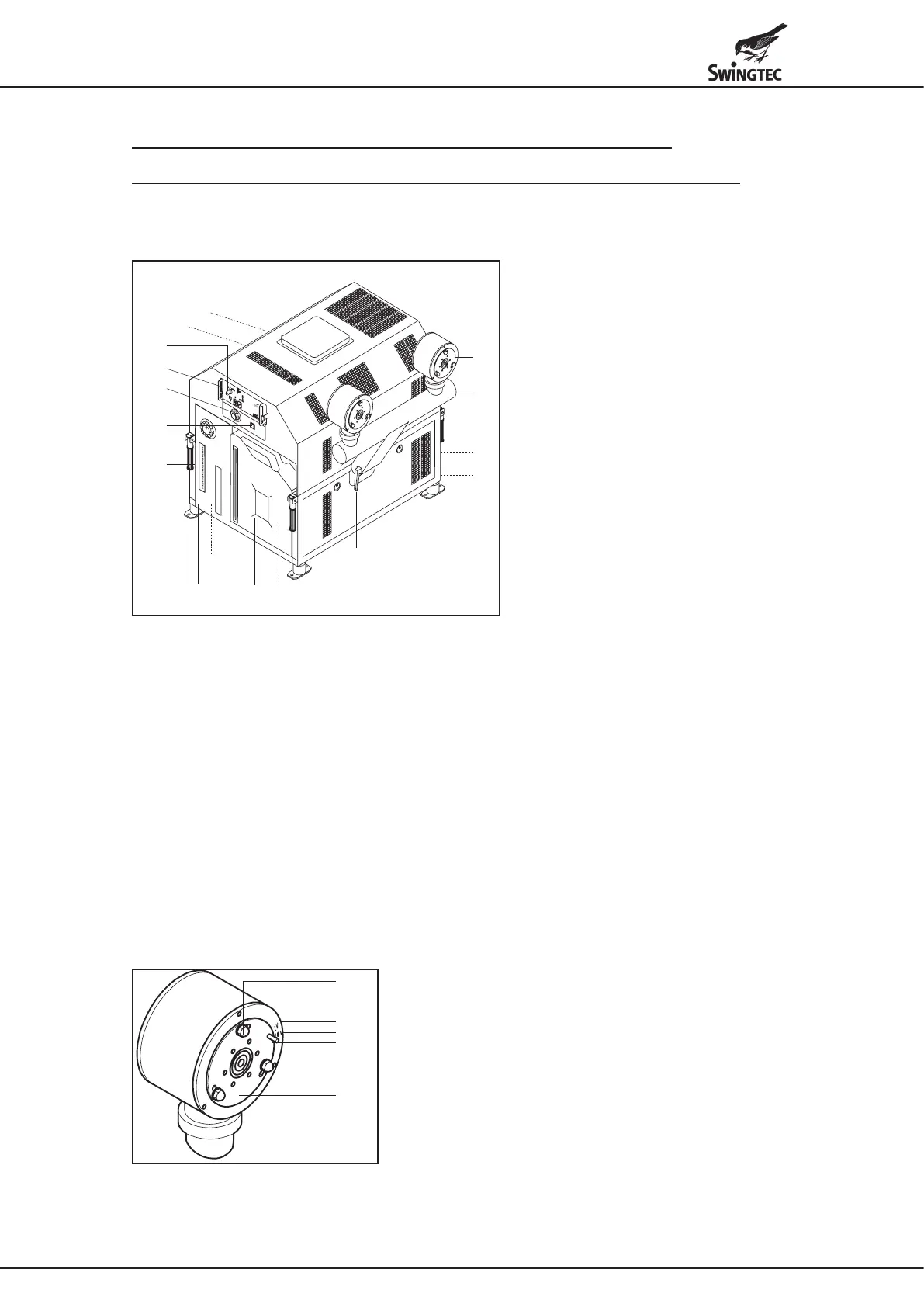

1 Spray heads
2 Bar (vertical adjustment of the spray heads)
3 Clamping lever (fixation of the bar)
4 Control unit / remote control
5 Emergency shutdown engine
6 Ignition key
7 Engine start button
8 Fuel tank
9 Carry handle
10 Door
(access to the rinsing fluid container)
11 Rinsing fluid container
12 Manual recoil starter
13 Choke
14 Dry cell battery 12 V / 36 Ah (optional
accessory)
15 Air filter (compressor)
16 Solution line
1
10
9
8
7
5
4
3
2
15
6
14
11
13
12
16
The devices can be used with the ULV (ultra low volume), ULV-Plus and LV (low volume) spraying processes.
Spraying process Spray output
(measured with water)
Droplet spectrum Fog drift
depending on wind
conditions
ULV 5 - 49 l/h 85% < 20 μm 100 - 200 m
ULV-Plus 50 - 100 l/h 80% < 40 μm up to 100 m
LV 5 - 100 l/h VMD (volume median diameter)
75 - 100 μm
20 - 50 m (drift-reduced)
• Check the engine's oil level.
• Install and connect the battery (12) (observe the polarity +/-).
• Fill the fuel tank (7) (regular petrol, unleaded or leaded).
Use the fuel funnel with strainer (small, standard accessory).
• Fill the spraying tank. Use the chemical funnel with strainer (large, standard accessory).
• Fill the rinsing tank with a suitable cleaning fluid.
Use the chemical funnel with strainer (large).
Use water if watery fog liquids are used, and diesel oil for oily fog liquids.
• Set the spray bar (2) to the required height and fix it with the clamping lever (3).
• Adjust the spray heads (1) (ULV / ULV-Plus and LV)
a Cap nut
b Setting plate with setting pin (ULV / LV)
c Setting pin
d ULV / ULV-Plus setting
e LV setting
e
d
a
b
c
Loosen the cap nuts (a) and set the adjusting plate (b) to ULV or LV spraying with the setting pin (c).
Fix the setting with the cap nuts (a).
