Swingtec Fontan Series - Page 5

5
Decommissioning
• The stainless steel spraying tank (see below) is emptied by connecting the tank emptying device (see below [g]) to
the quick coupling (e). The cap of the spraying tank (a) must be open.
• When using Swingtec's polyethylene spraying tank for the Fontan Mobilstar E and ER models, the tank-emptying
device is also connected to the solution line's quick coupling. The cap of the spraying tank must be open.
Polyethylene tanks (Fontan Mobilstar E and ER) are cleaned via the filling opening, and stainless steel tanks
through the cleaning opening (f).
• Disconnect the battery (14).

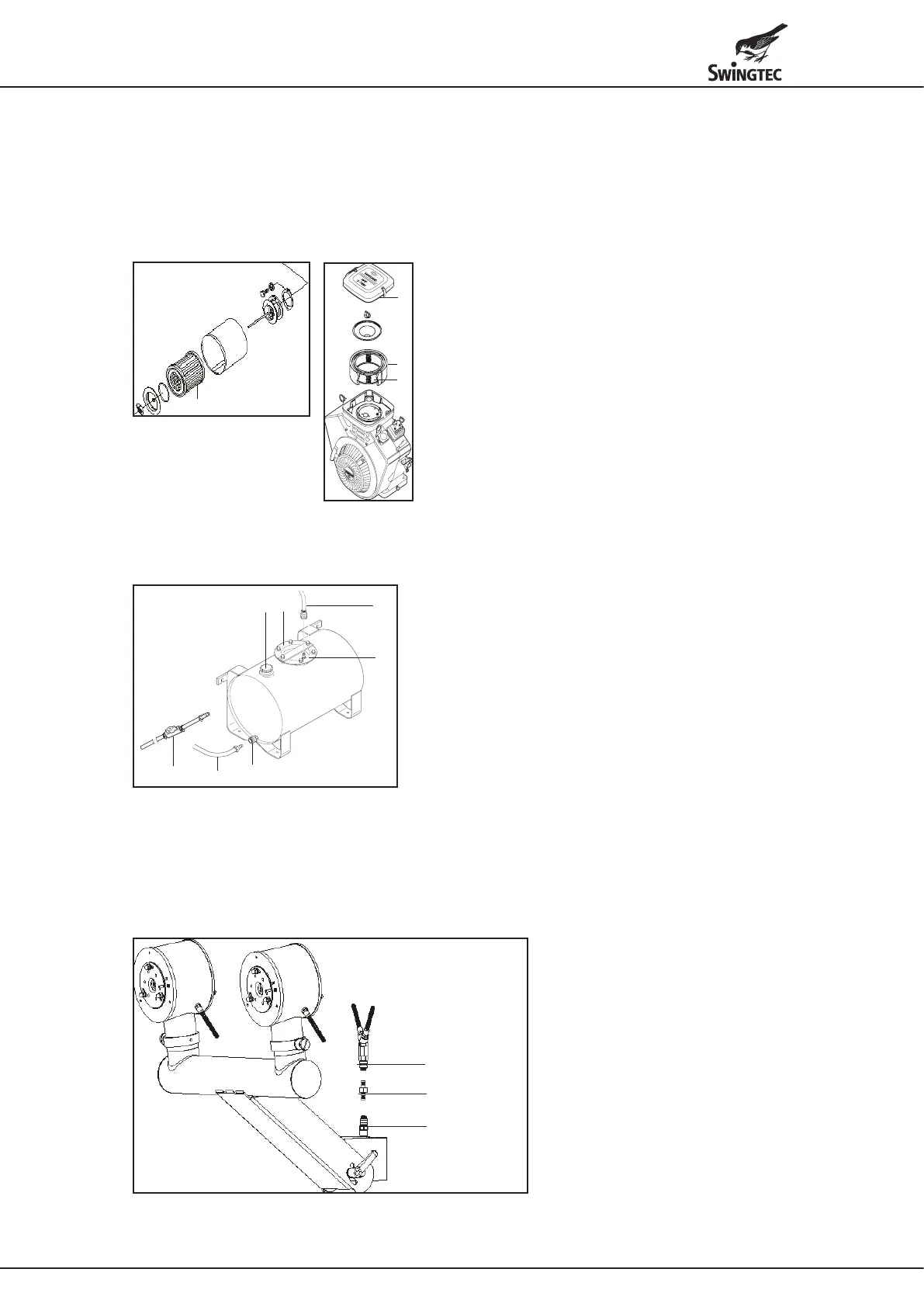

• Check the compressor's air filter (15) and the engine's air filters. This is especially important if the device is operated
in a dusty environment. Clean the filters if contaminated. Heavily contaminated filters must be replaced.
a Engineltercover
b Enginepre-lter
c Enginelterinsert
a
c
b
15
15 Airltercompressor
Fontan Mobilstar M
Device start
• Connecting the spraying tank
a Capofsprayingtankwithlterinsert
b Pressure line with quick coupling
c Connection piece for “b”
d Solution line
e Quick coupling for “d”
f Cleaning and service opening
g Tank emptying device
a
g
f
e
d
c
b
• Connect the pressure line (b) to the connection piece (c).
• Connect the solution line (d) to the quick coupling (e).
• The tank can be emptied by connecting the tank-emptying device (g) to the quick coupling (e).
The cap of the spraying tank (a) must be open to do so.
• The tank can be cleaned through the cleaning opening (f).
Selecting and assembling the dosing nozzles
To prevent manipulation of the spray output, the device is operated with fixed nozzles with defined flow rates.
a Top quick coupling solution lines
b Bottom quick coupling solution line
c Dosing nozzle
a
c
b
