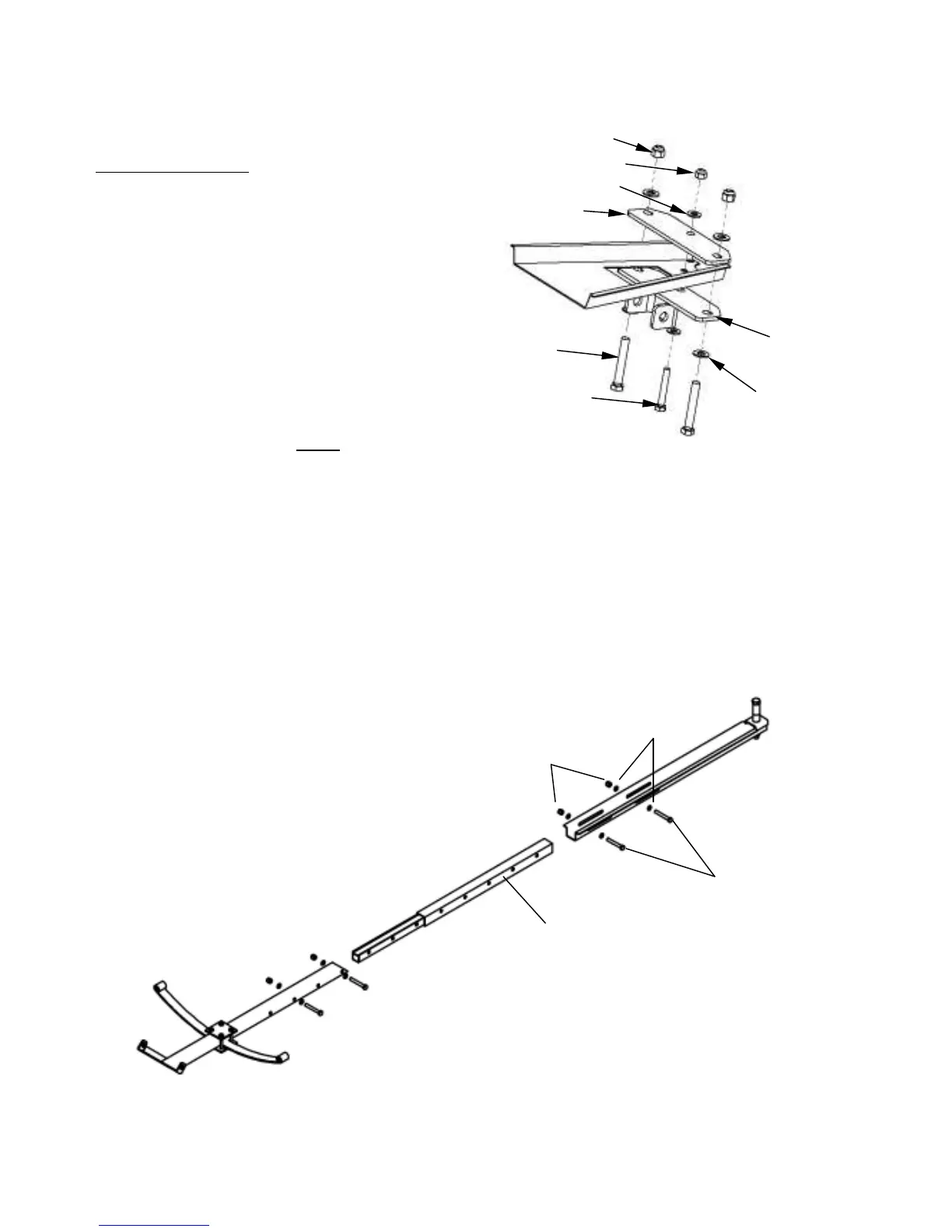

MOUNTING INSTRUCTIONS
(REFERENCE FIGURE ABOVE, LEFT SIDE SHOWN)
RAISE ATV SO THERE IS ENOUGH ROOM TO WORK. MAKE SURE THE SUPPORT
USED TO HOLD UP THE ATV IS VERY
STABLE. LAY OUT THE PARTS AND HARDWARE UNDER THE ATV.
MOUNT THE BRACKET AND WELDMENT AS SHOWN IN THE FIGURE. REPEAT THE SAME PROCESS FOR THE
RIGHT SIDE.
REMOVE THE EXISTING 5/16 CENTER BOLT FROM THE A-ARM / WHEEL ASSEMBLY. DO NOT REMOVE ANY
OTHER BOLTS FROM THE ASSEMBLY.
COMPLETE THE INSTALLATION OF THE ACCESSORY MOUNT USING THE INSTRUCTIONS ON PAGE 5 OF THIS
MANUAL.
Bombardier Outlander
Accessory Mount Brackets Kit #7668
ACCESSORY MOUNT
WELDMENT
3/8 SAE WASHER
5/16 SAE WASHER
3/8 NYLOC NUT
5/16 NYLOC NUT
ACCESSORY MOUNT
BRACKET
3/8 X 2 ½ BOLT
5/16 X 2 BOLT
HARDWARE AND PARTS
2 - ACCESSORY MOUNT BRACKET 7669TK
2 - ACCESSORY MOUNT WELDMENT 7670TK
4 - 3/8-16 X 2 ½ BOLT NB619
8 - 3/8 SAE WASHER NB272
4 - 3/8 - 16 NYLOC NUT NB182
2 - 5/16 - 18 X 2 BOLT NB507
2 - 5/16 -18 NYLOC NUT NB181
4 - 5/16 SAE WASHER NB275
Bombardier Traxter Max Extension Kit
Part # 2900 (Optional)
Note:
Extension of 21 – 33 inches at
Six inch increments.
NB577 (2 Needed)
NB177 ( 4 Needed)
NB281 (2 Needed)
2697TK
7
