Installation onto the Go-Kart
Step 1: Complete the engine by assembling the ignition coil, the radiator
and the carburetor. Charge the battery!

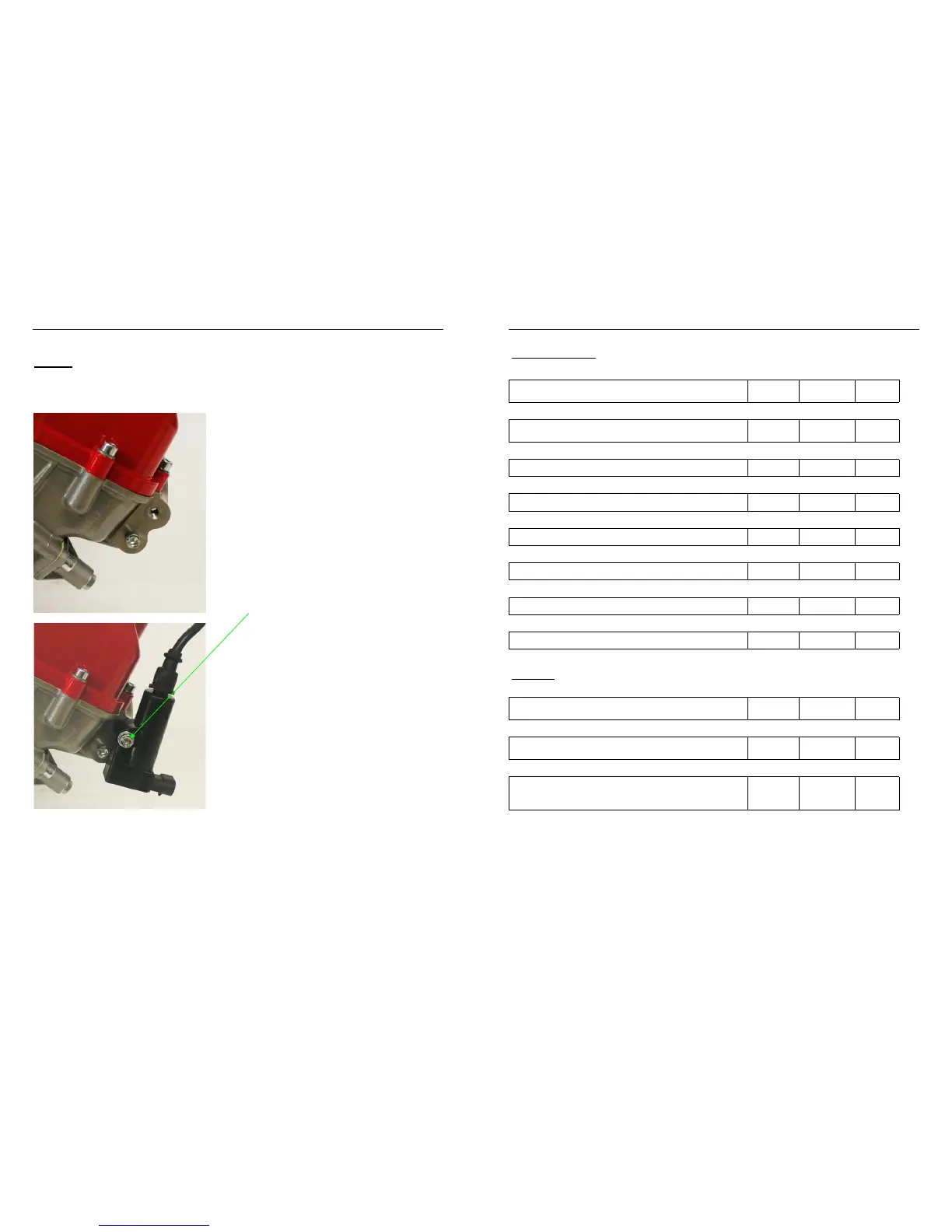

Mount the ignition coil as shown
on the cylinder head.
Use the screw M6x40 with
washer and tighten with 10Nm.
Insert the spark plug boot into
the plug hole and push it onto
the spark plug.
28
Table Tightening Torque
Tightening Torque Thread Strenght Nm
Engine mount allen screw
Loctite
243 M8 8.8 22
Transmission sprocket bolt hexagon
with flange M6 8.8 13
Transmission sprocket nut hexagon M28x1 110
Clutch mount nut heaxagon M24x2 150
Spark plug A/F 16 M10x1 12
Generator-stator (coil) M6 8.8 10
Mounting bolt for oil filter hexagon M14x1.5 26
Oil drain plug hexagon (magnetic) M14x1.5 26
CLUTCH:
Starter sprocket with clutch mount
hexagon M 8 10.9 22
Starter sprocket with clutch mount
hexagon M 7 8.8 22
Starter sprocket with support ring allen
screw
M 6
stainless
steel 10
To Next Page
