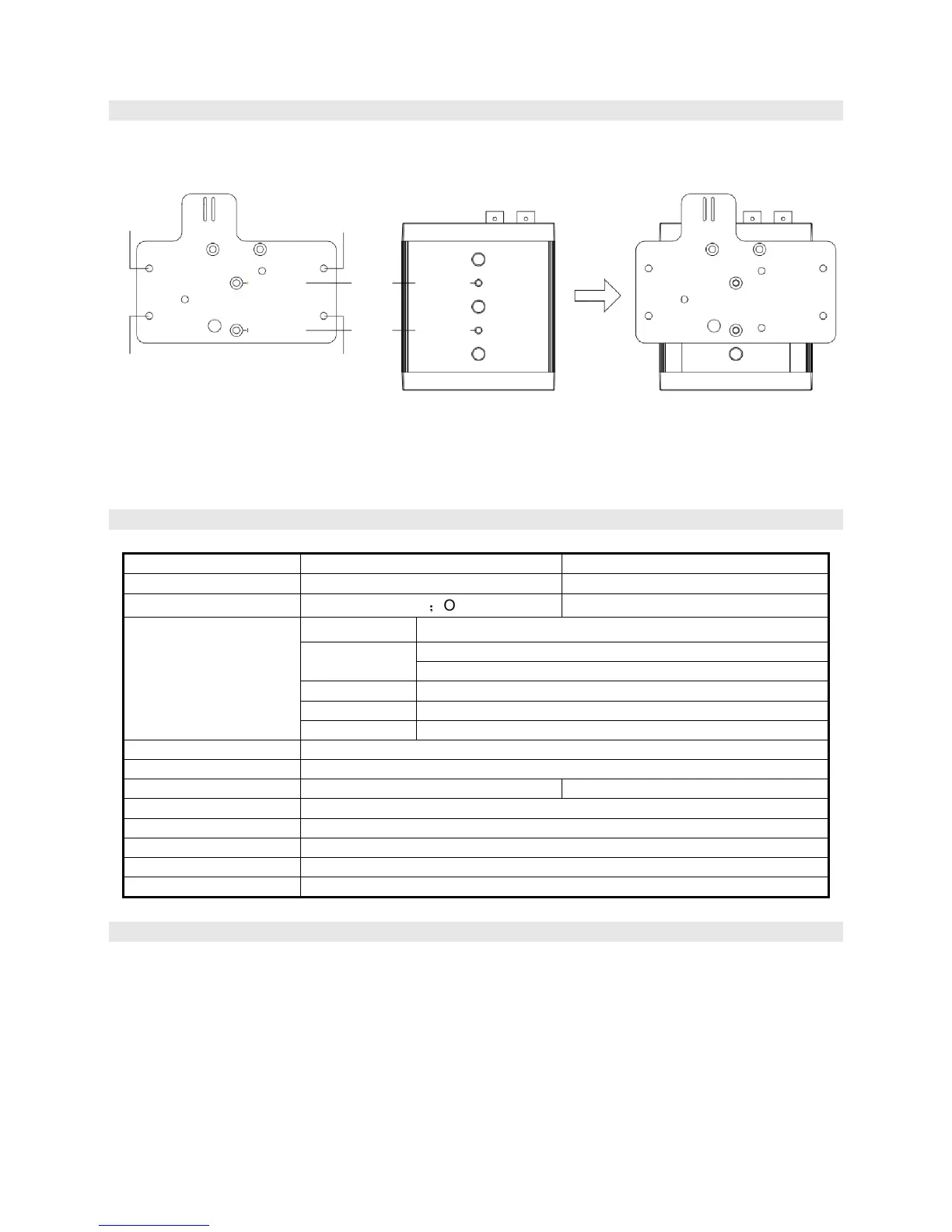

5. Installation Plate
Installation Plate Rear View of S-4605/4606 Installed
Screw hole 3 Screw hole 4
Screw
hole 1
Screw
hole 2
Screw hole 5 Screw hole 6
Match the screw holes 1&2 with the threads 1&2 of S-4605/4606, and fix the installation plate to the
S-4605/4606 by the supplied screws.
The screw holes 3, 4, 5, 6 are used to install the converter to wall or racks.
6. Specifications
Model S-4605 S-4606
Input 3G/HD/SD SDI×1 OPTICAL×1
Output
3G/HD/SD SDI×1
；
OPTICAL×1
3G/HD/SD SDI×2
SMPTE-425M
1080p (60/59.94/50)
1080p (30/29.97/25/24/23.98)
SMPTE-274M
1080i (60/59.94/50)
SMPTE-296M
720p (60/59.94/50)
ITU-R BT.656 576i (50)
SDI Format
SMPTE-125M
480i (59.94)
Optical connector LC
Transmission distance 20km
Wavelength 1310nm 1260nm~1580nm
Power consumption ≤3W
Working voltage DC 6-18V
Working environment Temperature: 0°C -+70°C, Humidity:10%-90%
Dimension 98×84×29 mm
Net weight 200g
7. Maintenance
1. Please do not disassemble the product by yourself.
2. Keep the product away from rain or moisture.
3. Please use the provided power adapter and if you use third party power adapter, please make sure the
voltage range, supplied power, and polarity of power lead are fit.
Match thread 1
Match thread 2
