SwitchBot Curtain 3 Rod - Page 12

12

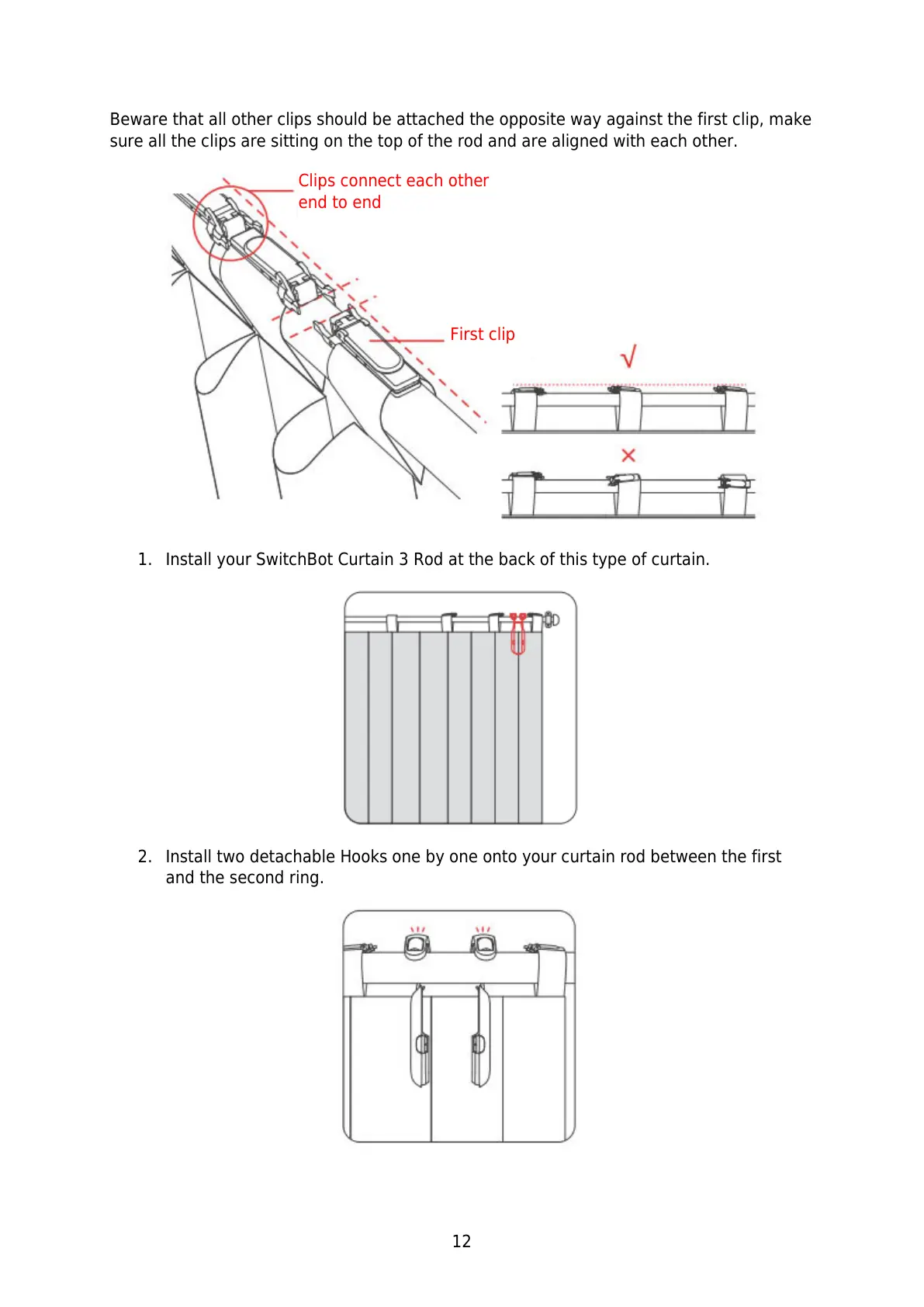

Beware that all other clips should be attached the opposite way against the first clip, make
sure all the clips are sitting on the top of the rod and are aligned with each other.
1. Install your SwitchBot Curtain 3 Rod at the back of this type of curtain.
2. Install two detachable Hooks one by one onto your curtain rod between the first
and the second ring.
First clip
Clips connect each other
end to end
