SwitchBot Curtain 3 Rod - Page 14

14

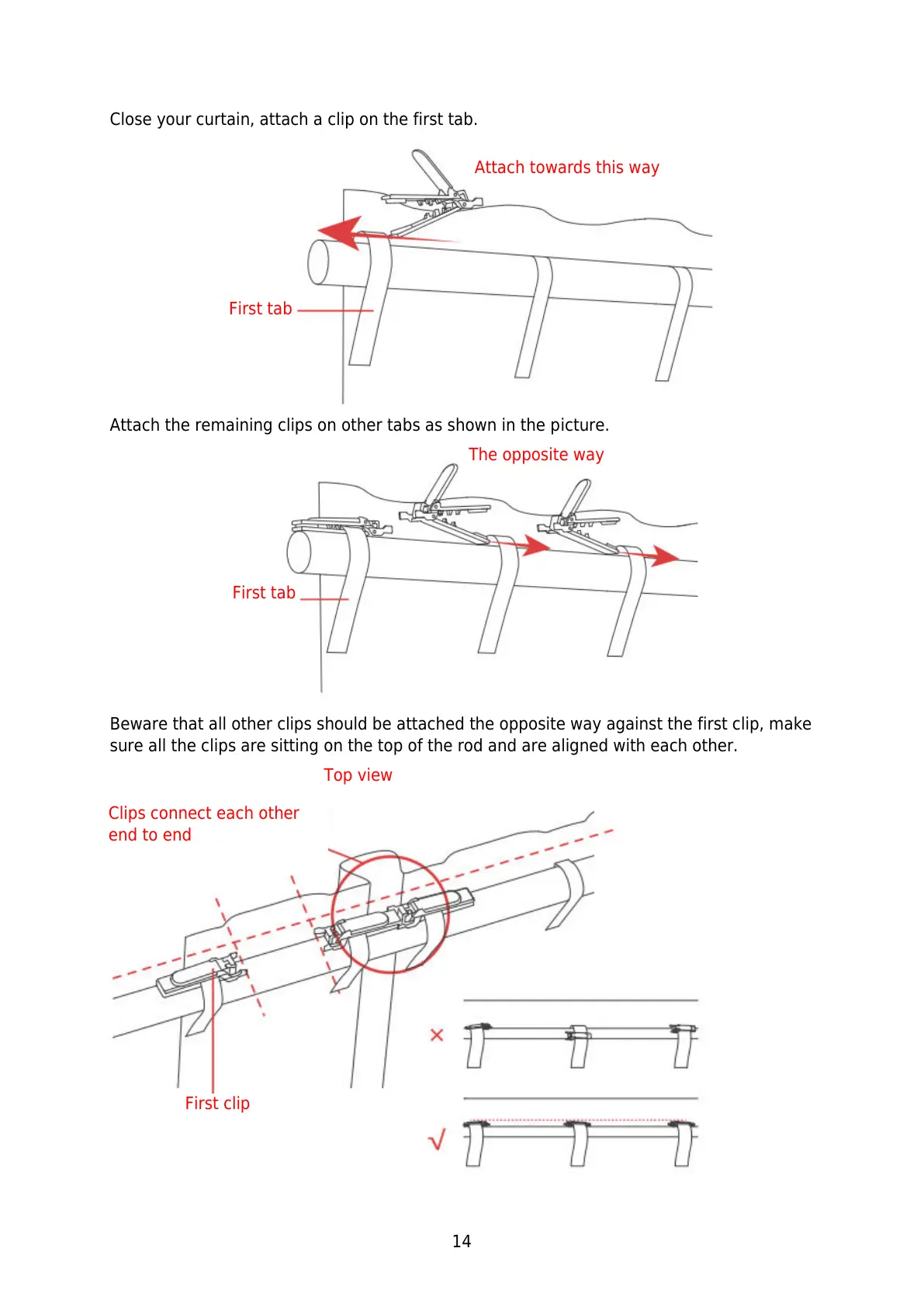

Close your curtain, attach a clip on the first tab.
Attach the remaining clips on other tabs as shown in the picture.
Beware that all other clips should be attached the opposite way against the first clip, make
sure all the clips are sitting on the top of the rod and are aligned with each other.
Attach towards this way
First tab
First tab
The opposite way
Top view
Clips connect each other
end to end
First clip
