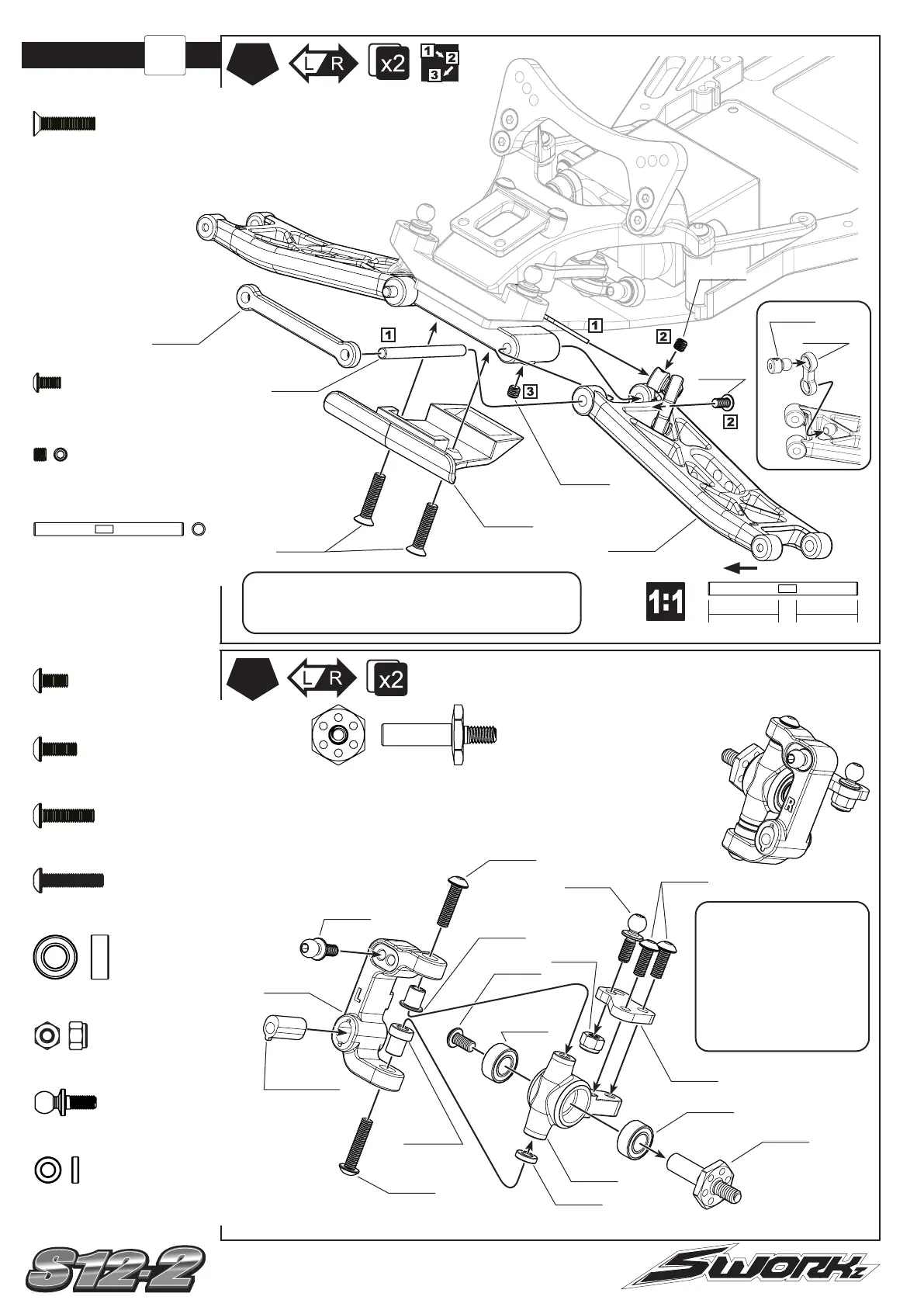

SWorkz S12-2 - Page 14

14
BAG
D
15
16
106010
116010
116010
101026
220038
342003
330643
103001
220038
332014
332015
220035
106020
330537
108005
106001
106008
330643
334021
334020
220047(#0)
106017
Left
Right
F
16mm16mm 14mm14mm
108005
M3x14mm FH/ST HEX Screw
x2
330537
Rear Hub Carriers Hinge Pin
x2
104004
M3x3mm Set Screw
x4
220040
104004
104004
330315
220047
106008
M3x12mm Hex Socket OH/TP Screw
x2
106010
M3x6mm FH/ST HEX Screw
x2
116010
Ball Bearing 5x10x4mm
x4
106001
M3x8mm Hex Socket OH/TP Screw
x4
330643
Steering Linkage Ball Stud 5mm
x4
103001
M3 Nut Lock
x2
332014
Steering Hub Hinge Pin
x2
101026
SWORKz Aluminum Washer 3X6X1.5mm
x2
106017
M3x14mm Hex Soket OH/TP Screw
x2
106020
M2.5x5mm Hex Socket OH/TP Screw
x2
PRO TIP:
The part 220047 Front
C-Hub Insert has 3 different
sizes. There are 0/2.5/5
degree hubs that can change
the front C-hub to 5 different
caster angles -5/-2.5/0/2.5/5.
The less angle, the faster the
response.
OPTION:
SW-220035H
S12-2 Front Lower Arm Set in Pro-composite Hard Material
