SWorkz S35-4e EVO - Assembly Steps

7
2
1
BAG
B
338027
116006R
330015
328001
400002
101039
210091
116006R
338024
101027
330015
328001
400002
330015
Pin M2.2x9.9mm
x4
400002
O-ring S5 4.8X1.5
x4
101004
Washer 3.5X10X0.2mm
x8

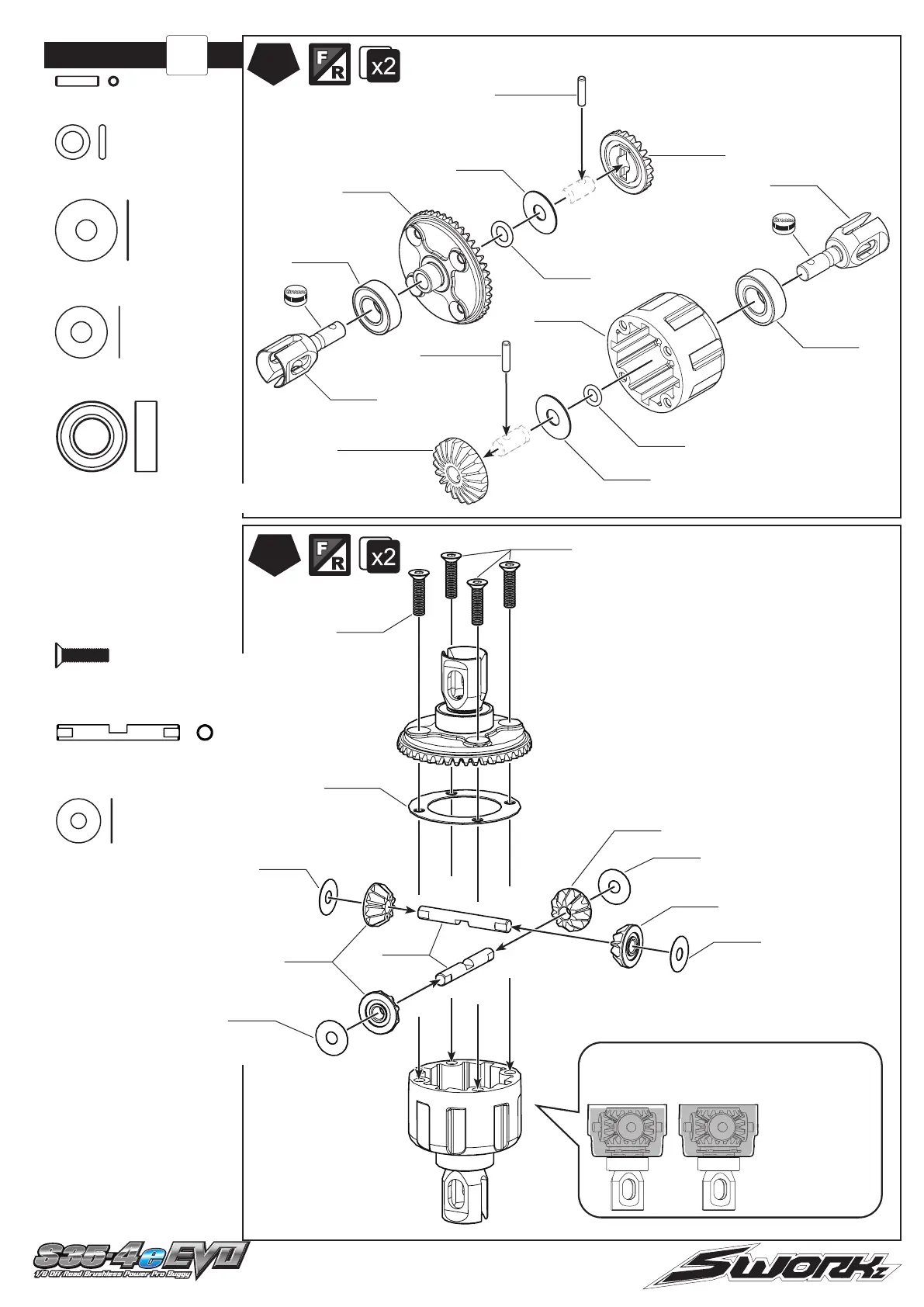

Fill the differentials
with oil up to 80%
above the satellite
gears.
Put the SWORKz
Di󰀨. Oil 10000cps
for the front Di󰀨.
and 5000cps for the
rear Di󰀨.
Remember to apply a light coat of
grease to the o-ring, then slide it over
the shaft of the out drive and seat it in
the di󰀨 case.
Insert the pin through the hole in the
di󰀨 case and through the hole in the
shaft of the out drive.
OK! NG!
338027
101004
101004
101004
101004
610023P
328001
328001
338025
328001
108001
108001
338025
S35-3W Bevel Gear Shaft
x4
116006R
Ball Bearing 8x16x5mm (Red Rubber Case)
x4
108001
M3x12mm FH/ST HEX Screw
x8
101027
Washer 5x14x0.5
x1
101039
Washer 5x12x0.3
x1
