INPUT PANELS
Megoliath™
The Megoliath offers the ultimate in both power handling and
application flexibility! Essentially, the Megoliath™ is two inde-
pendent 8, 4x10 enclosures that can be run separately from
two different sources (stereo) or as one mono 4, 8x10 enclo-
sure by connecting the top and bottom enclosures from {G} to
{I} using the Speakon® speaker cable provided.
Goliath enclosures offer both /" phone jacks and Speakon®
jacks to provide flexibility in making your speaker connec-
tions. Use the Speakon® jacks whenever possible to take
advantage of their superior power transfer efficiency and
secure locking connectors. All jacks are wired in parallel.

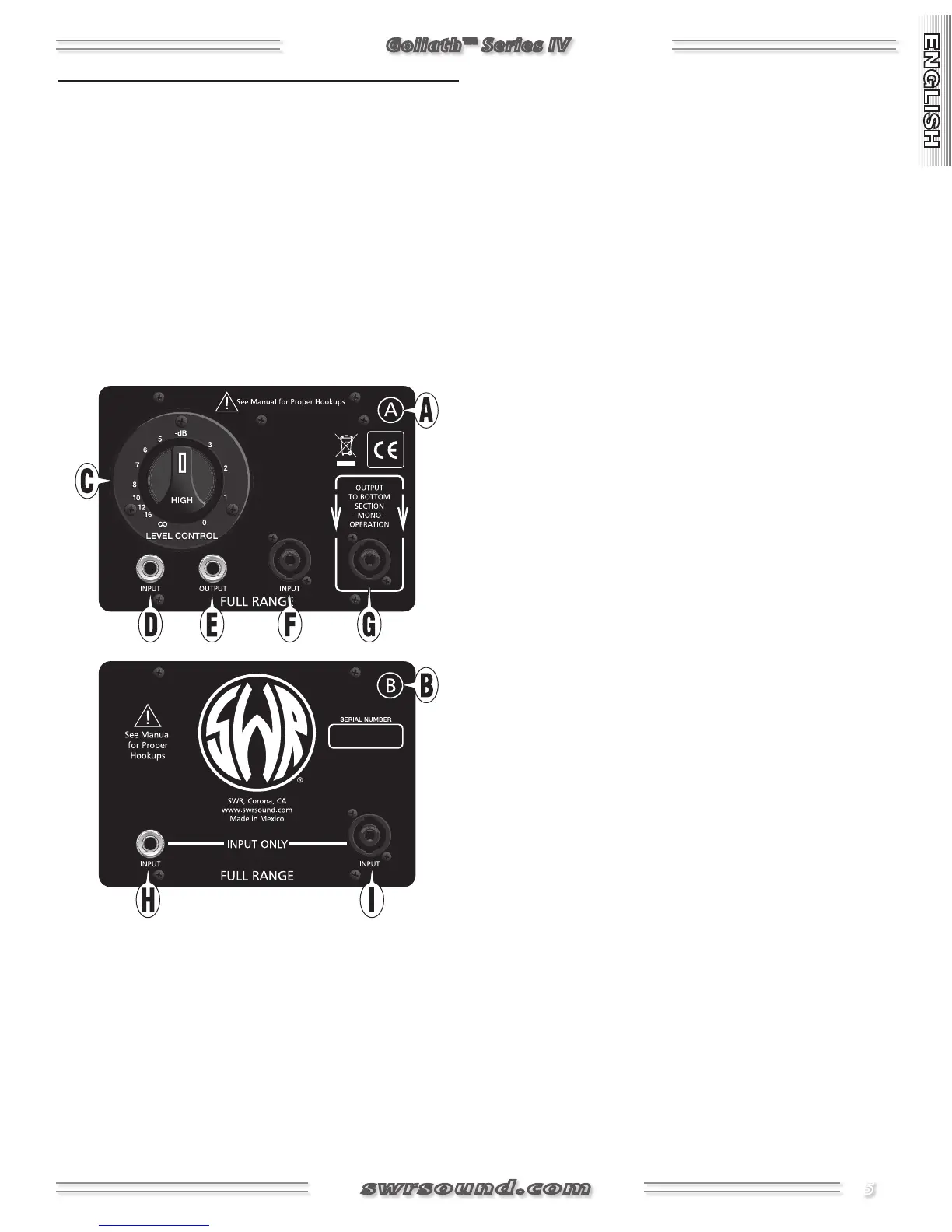

A. ENCLOSURE "A"Input/control panel for the top half of
the Megoliath cabinet (x and tweeter).
B. ENCLOSURE "B"Input panel for the bottom half of the
Megoliath cabinet (x).
C. TWEETER ATTENUATOR CONTROLUse this knob to
adjust the tweeter volume level anywhere from infinite
"∞" resistance (no tweeter), to zero resistance (maximum
tweeter) for Enclosure "A". A normal setting for this
control is straight up (approximately –dB attenuation).
NOTE: Any amplifier clipping (distortion) that occurs will
always be accentuated by the tweeter. Turn down the
master volume on your amplifier to reduce clipping.
An internal (passive) crossover divides the signal, sending
frequencies above kHz to the tweeter and frequencies
below kHz to the drivers.
D. /" PHONE INPUTInput jack for Enclosure "A."
E. /" PHONE OUTPUTOutput jack for Enclosure "A"
when linking multiple enclosures together.
F. SPEAKON INPUTInput jack for Enclosure "A."
G. SPEAKON OUTPUTOutput jack for Enclosure "A" when
linking multiple enclosures together. Connect to Input
{I} on Enclosure "B" when operating the Megoliath as a
single x mono cabinet.
H. /" PHONE INPUTInput jack for Enclosure "B."
I. SPEAKON INPUTInput jack for Enclosure "B."
