Remote Control Keypad and LCD Manual
4
左右微调
Strife fine-tuning: Power-on start in
the centering.(Be Turn Left/Right Fine
-tuning in Mode2)
Forward/backward fine-tuning: Power
-on start in the middle.
Turn Left/Right fine-tuning: Power-on
start in centering. (Be Strife Fine-
tuning in Mode2)
Throttle lever fine-tuning: Power-on
start in middle.
Throttle shows: Power-on start in
lowest level.(Left and right throttle
shows at one time)
Forward shows: Power-on start in the
lowest level.(At the center square)
Left Strife shows: Power-on start in
the lowest level.(At the center
square)
Backward shows: Power-on start in
the lowest level.(At the center
square)
Right Strife shows: Power-on start in
the lowest level.(At the center
square)
Turn left : Power-on start in zero.
Turn right: Power-on start in zero.
High speed mode:Power-on without
display "H".
Low speed mode: Default mode when
power-on with "L".(Change to H mode
when press button"B".)
Power shows: According to the battery's
energy for the controller.
MODE 1 : Default mode when power-on.
(Suitable for right-handed) In MODE 1,
turn left/rightcontrolled by left lever,Strife
controlled by right lever.
MODE 2 : Push the button "A" to right to
change
MODE 1 into MODE 2 (Suitable for left-
handed).In
MODE 2 ,Strife controlled by left lever, turn
left/right controlled by right lever.
Signal shows: Normally to full frame.
Mini helicopter shows when power on
with on
function now.
0 1
1 1
1 2
1 3
1 4
1 5
1 6
1 7
1 8
0 2
0 3
0 4
0 5
0 6
0 7
0 8
0 9
1 0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
5
1 36
1 36

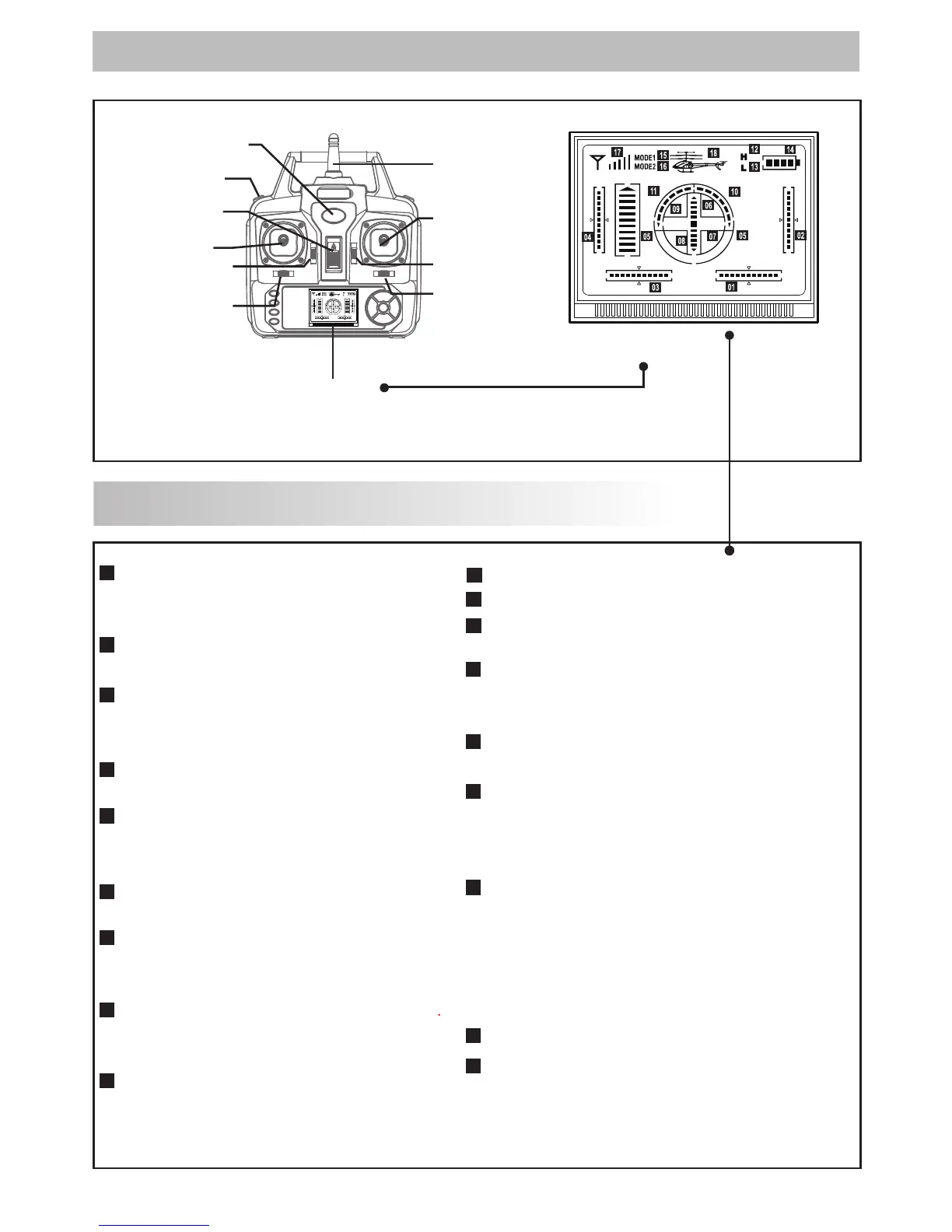

Mode 1:
Turn left/right
fine tuning
Mode 2:
Strifes left/right fine tuning
Mode 1:
Strifes left/right fine tuning
Mode 2: Turn left/right fine tuning
Antenna
Right function lever
(Direction lever)
Forward/backward
fine-tuning
Indicator light
Hight/lLow speed
mode button
Power ON/OFF
Left function lever
(accelerator)
Throttle lever
fine-tuning
LCD manual
“B” Switch
"A" Switch
REMOTE CONTROL KEYPAD AND lcd MANUAL
