User’s Guide
6200 Digital
Voice Processor
To download the latest version of 6200 Designer, a Windows GUI
application interface for the 6200, go to: www.airtoolsaudio.com

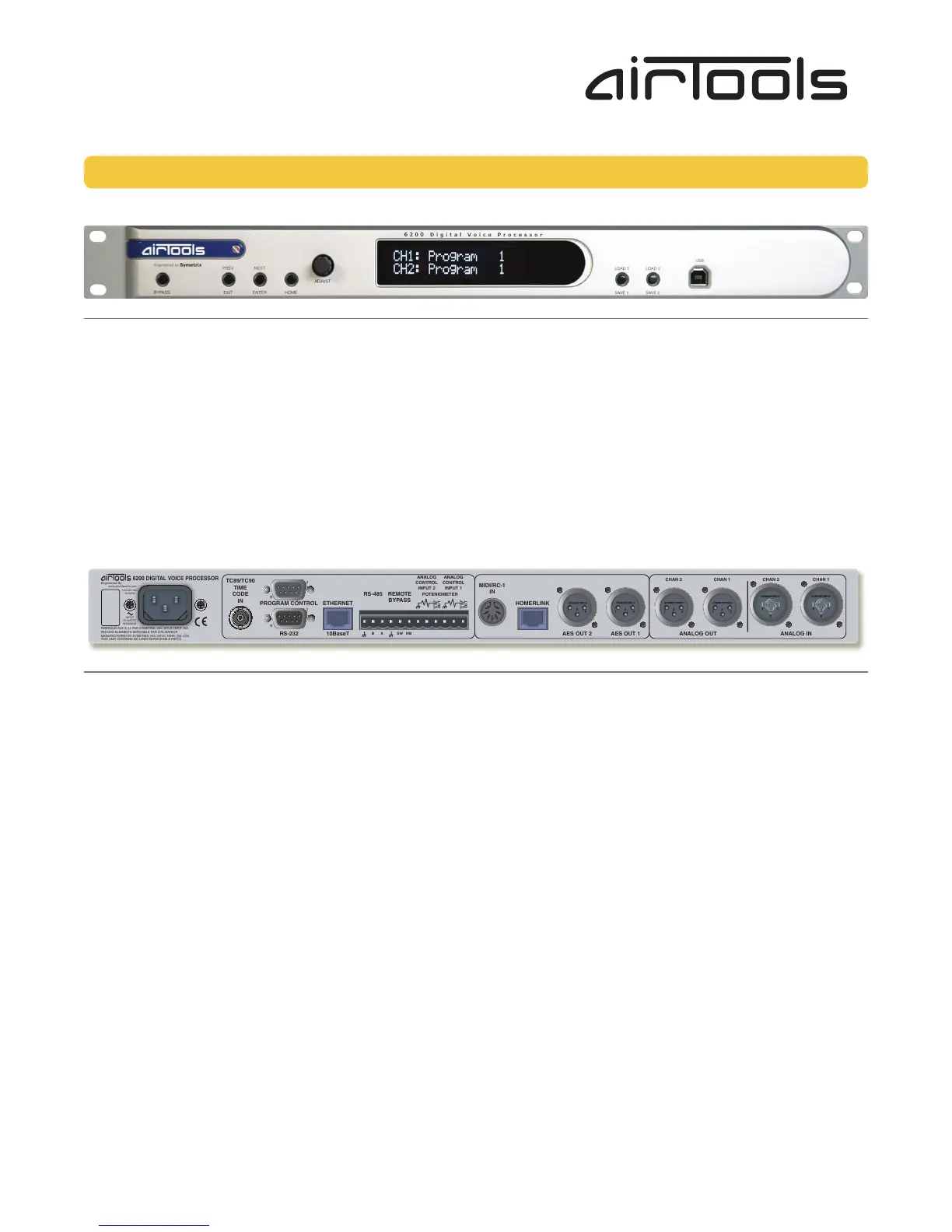

Front Panel
Item Description What It Does
BYPASS Momentary button Toggles DSP bypass state on top level menus. Toggles DSP module bypass state
on individual DSP module menus.
PREV / EXIT Momentary button Moves to the previous menu item or exits to the top of the menu tree.
NEXT / ENTER Momentary button Moves to the next menu item or enters a menu tree.
HOME Momentary button Returns to the “HOME” top-level menu.
ADJUST Continuous rotary encoder Selects the menu to enter or adjusts the currently selected parameter or menu item.
DISPLAY Monochrome Displays status, menu or configuration information.
LOAD 1 / SAVE 1 Momentary button Loads or saves a program for channel 1.
LOAD 2 / SAVE 2 Momentary button Loads or saves a program for channel 2.
USB Female “B” USB 1.1 port Optional connection to a Windows™ PC for 6200 Designer GUI control.
Rear Panel
Item Description What It Does
POWER INPUT IEC 3 prong jack Accepts power from detachable IEC power cable (100-240 VAC, 50-60 Hz, 60
Watts max). Connect only to a grounded power outlet.
TC89/TC90 TIME CODE IN Female BNC Accepts (ESE) TC89 or TC90 time code to drive the real-time clock and Event
Manager. Format and presence is automatically detected.
PROGRAM CONTROL Male DB9 Simple program recall interface.
RS-232 Female DB9 Optional serial communications interface for 6200 Designer on the host PC.
ETHERNET (10 Base T) RJ-45 Optional Ethernet communications interface for 6200 Designer on the host PC.
RS-485 Euroblock Optional long distance serial communications interface for 6200 Designer on the host
PC. Third party 232/422/485 converter products may be required to utilize this port.
REMOTE BYPASS Euroblock Allows remote software (DSP) bypass or output muting (output disconnect via
relays) with simple contact closures.
ANALOG CONTROL Euroblocks Allows real-time control of up to two parameters per port using standard 10k Ohm
INPUT 1 and 2 linear potentiometers.
MIDI/RC-1 IN 7 pin DIN Accepts MIDI program change messages to recall programs for channels 1 and 2.
Can also be used with the AirTools RC-1 remote directly. The RC-1 can also be
powered from this port.
HOMERLINK RJ-45 Transmits 4 AES-3 mono channels and receives 2 AES-3 mono channels over
standard CAT-5. Used for AES digital input, to sync to an external AES clock
source or to integrate with the AirTools Studio Matrix system.
AES OUT 1 and 2 Male XLR AES-3 digital output - software selectable to carry Channel 1/2, 1/1, 2/1 or 2/2
information.
ANALOG OUT Male XLR 2 x analog line level audio outputs with software adjustable output level.
ANALOG IN Female XLR-1/4” combo 2 x analog mic/line level audio inputs with individually software selectable coarse
gain and fine trim.
