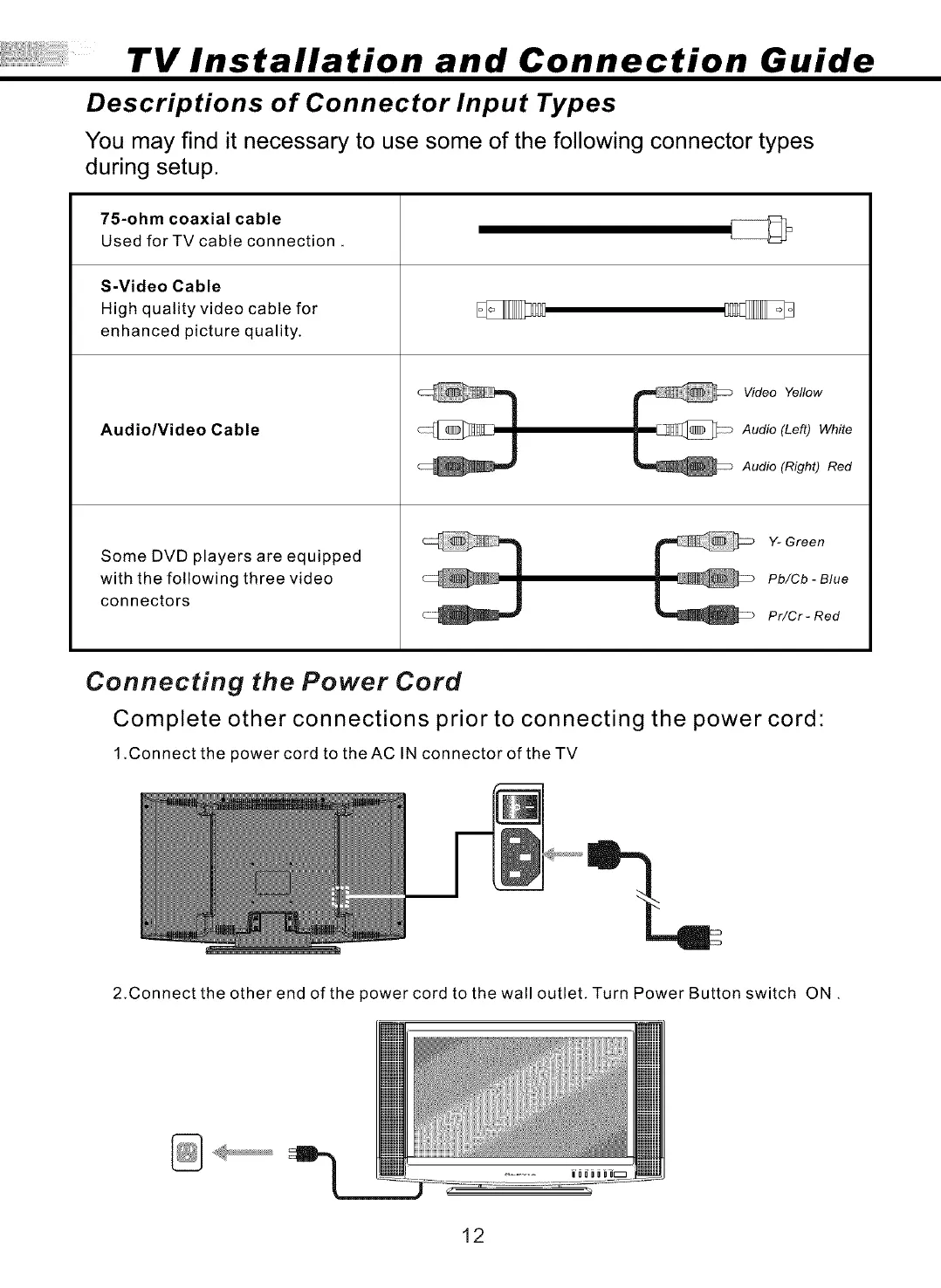

TV Installation and Connection Guide
Descriptions of Connector Input Types
You may find it necessary to use some of the following connector types
during setup.
75-ohm coaxial cable
Used forTV cable connection.
S-Video Cable
High quality video cable for
enhanced picture quality.
Audio/Video Cable
Some DVD players are equipped
with the following three video
connectors
Video Yellow
Audio (Left) White
Audio (Right) Red
Y- Green
Pb/Cb - Blue
Pr/Cr - Red
Connecting the Power Cord
Complete other connections prior to connecting the power cord:
1.Connectthe power cord to theAC IN connector of theTV
2.Connect the other end of the power cord to the wall outlet. Turn Power Button switch ON.
•
