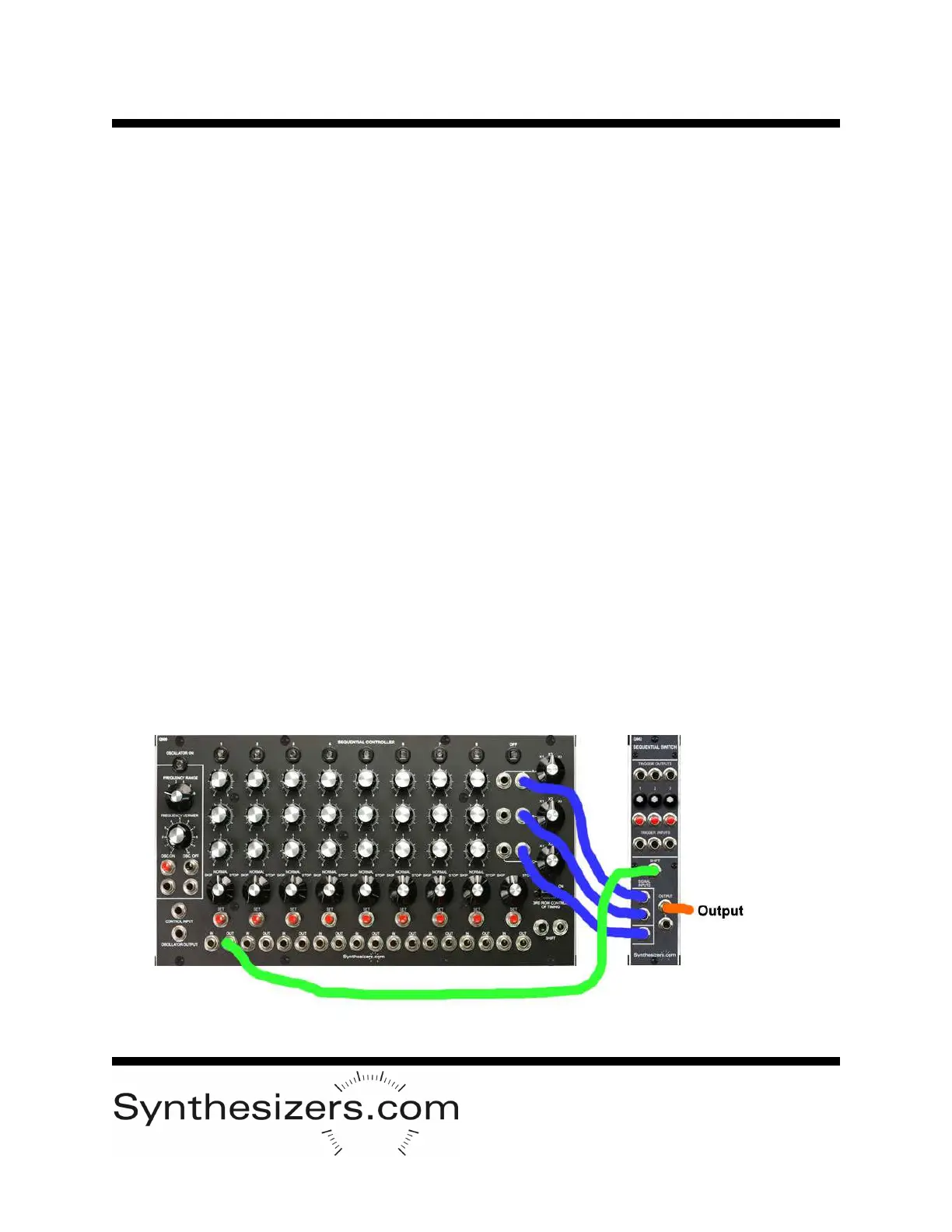

Typical 24-Stage Patch
Stage 9
A special 'Stop' stage where zero volts is sent to row outputs. Stage 9 can be Skipped with the mode
switch, activated manually with the Set button or activated with a trigger input. Stage 9's trigger output
is available as long as the stage is active (Lamp on). Whenever stage 9 becomes active, the oscillator
is automatically turned off.
Row 'X' Switches
Determines the range of the control knobs for each of the 3 row outputs. X1 = 0-2 volts, X2 = 0-4
volts, X4 = 0-8 volts.
Outputs
2 outputs provide the voltage of the selected stage control knobs.
3rd Row Control of Timing Switch
Routes the output of the 3rd row to the oscillator to control frequency. When a stage knob is set to 0,
there will be no affect on the oscillator frequency. Each volt output will double the oscillator frequency
resulting in a halving of the stage On time. Row C's X switch does affect this.
Shift Input
Control of shifting from an external signal such as an oscillator, gate, trigger source. Can be used in
conjuction with the internal oscillator for unusual timing effects.
Shift Button
Manual control of shifting.
Q960 Sequential Controller
Sep 2014
