TROUBLESHOOTING

PROBLEM

CAUSE

CORRECTION

No power from the control.

Open fuse(s)

*Replace the

fuse(s)

Loose connection

Repair

Defective PCB

*Replace PCB

Jumper wire

Ensure C1 & C2

are

closed/connected

No control of power from the control. Equipment runs at full

capacity or with a weak hum. There is no definite stroke.

Defective PCB

*Replace PCB

*Replace only with parts recommended or supplied by SYNTRON.

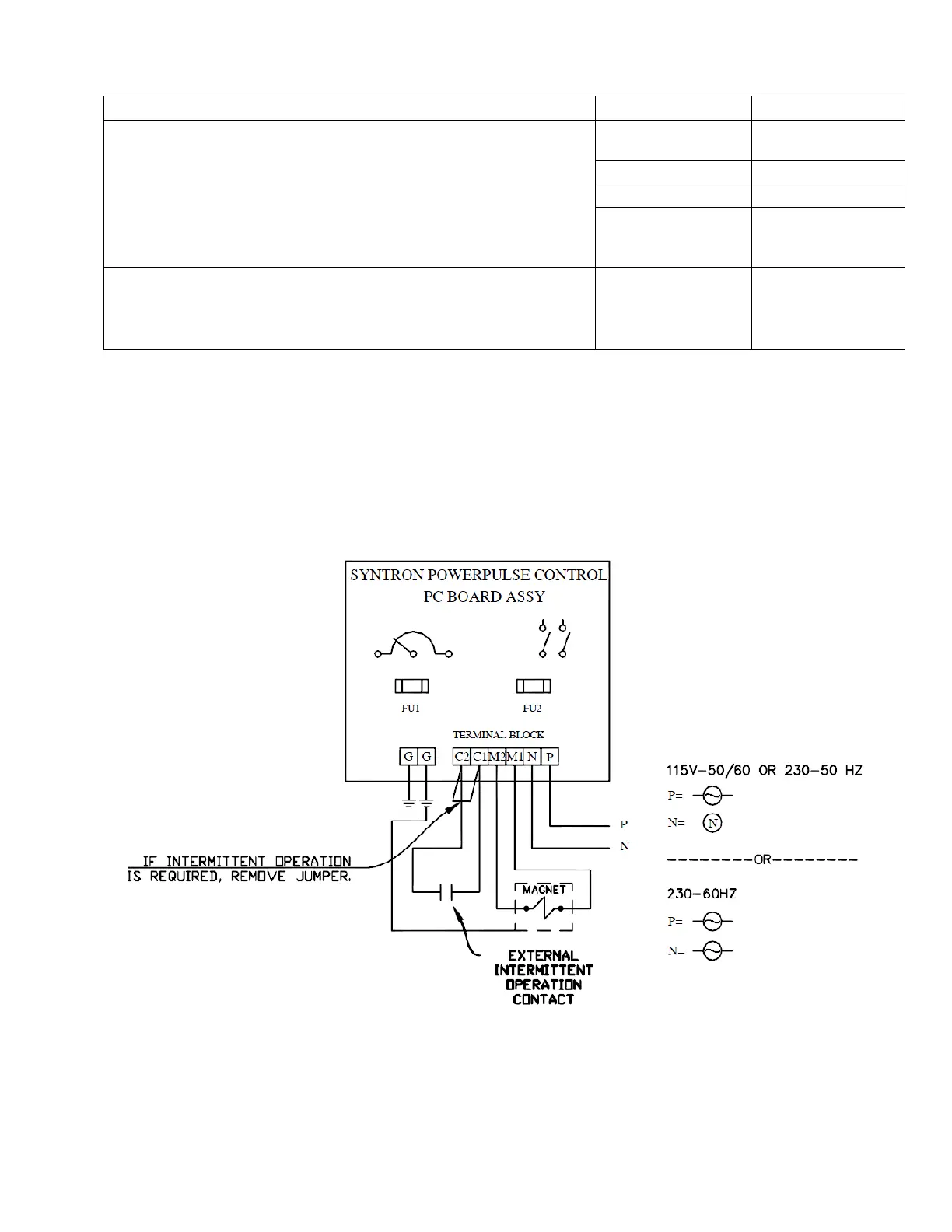

WIRING DIAGRAM
