TROUBLESHOOTING
PROBLEM
CAUSE
CORRECTION
No power from the control
Open fuse
*Replace the
fuse
Loose
connection
Repair
Defective
PCB
*Replace PCB
No control of power from the control. Equipment runs at full
capacity or with a weak hum. There is no definite stroke.
Defective
PCB
*Replace PCB
*Replace only with parts recommended or supplied by SYNTRON.

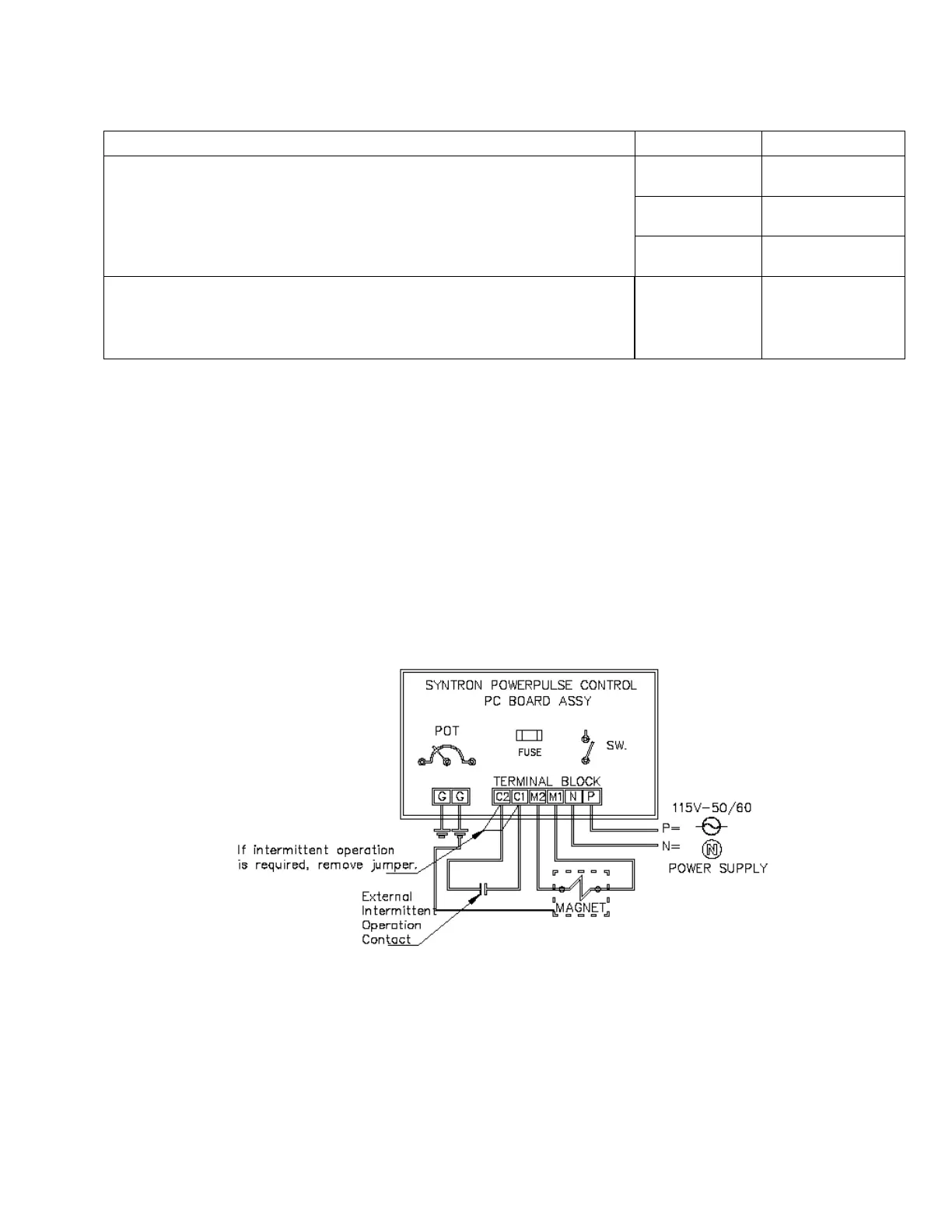

WIRING DIAGRAM
