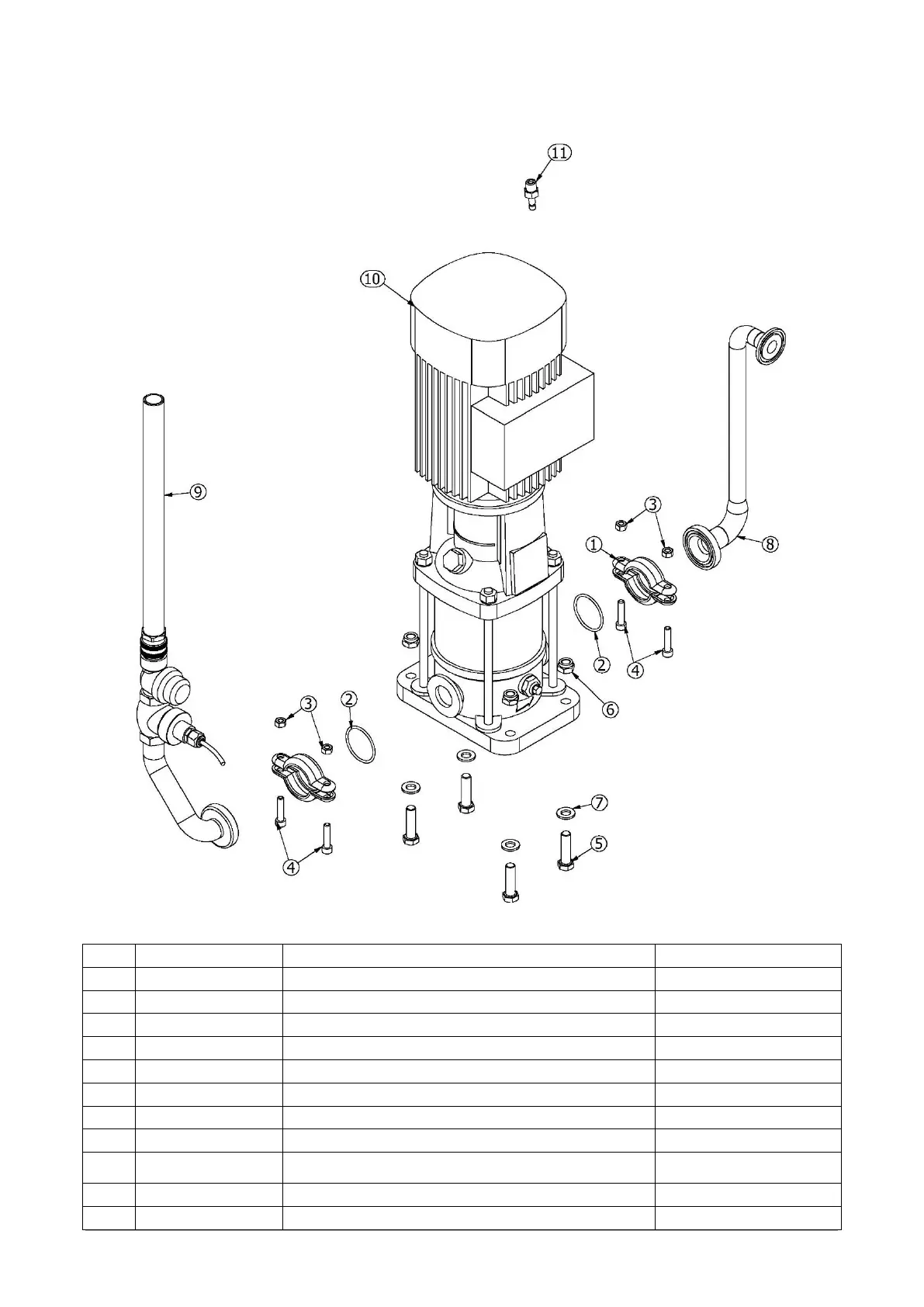

System Cleaners MS1-10 - Pump Assembly Diagrams

Version 1 (03.2020. EN) (MS1-10, MSC1-10)
Page 54 of 71
03-705101
Item
Part Number
Description
Material
1
30-740483
Flexi clamps ø48,3
-
2
17-010010
O-ring 46x3
NBR
3
08-000801
Nut M8
A2
4
08-800835
Cheese-head screw M8x35
A2
5
08-201211
Set screw M12x45
A2
6
08-001201
Lock nut M12
A2
7
08-301202
Disc washer ø12
A2
8
25-250150
Outlet pipe MS1-10/AMM50-10
AISI 304
9
05-040098
Inlet pipe 3/4" NPT MS1-10/AMM50-10/AMM50-10
Vemag
-
10
31-308001
Pump CRN 3-8 1,1 kW 1x120V
-
11
15-000010
Adapter ø8x1/4" NPT SS
AISI 304
