System Sensor MASS12LO User Manual

D900-10-00 4 I56-760-07
© System Sensor 1996
A78-2514-00
A78-2515-01E
1. Screw strobe to sounder with screw B.
2. Complete field wiring. (See Fig. 5 & 6)
3. Screw sounder/strobe to box with screw A.
1. Complete field wiring. (See Fig. 2)
2. Screw strobe to box with screw A.
3. Fill remaining holes with screw B.
1. Screw strobe to plate with screw C.
2. Complete field wiring. (See Fig. 2)
3. Screw strobe plate to box with screw A.
A78-2516-01
A78-2517-02E
1. Screw plate to box with screw E.
2. Complete field wiring. (See Fig.4, 5, and 6)
3. Screw sounder or sounder/strobe to plate with screw A.
4. Fill remaining holes with screw B.
1. Fasten MP-F plate to sounder with
screws C and nuts D.
2. Complete field wiring. (See Fig. 4)
3. Screw plate sounder to box with
screw F.
C
F
F
C
MP-F
MA 12/24EH
D
D
BB-D
A78-1137-08E
1. Plaster ring should be properly mounted to electrical box with
screws supplied with box.
2. Screw plate to plaster ring with screw G.
3. Complete field wiring. (See Fig. 4, 5, and 6)
4. Screw sounder/strobe to plate with screw A and fill remaining
holes with screw B.
A
B
B
G
G
MA 12/24EH
MP-SF
Plaster
Ring
Standard
Backbox
A
A78-1137-21E
B
A
A
B
Signal Strobe
Standard
Backbox
TOP
MA12/24EH
B
B
A
Signal Strobe
Standard
Backbox
A
MP-SF
MA-12/24EH
B
B
A
A
E
E
MP-SF
Signal Strobe
TOP
STANDARD
BACKBOX
C
C
A
A

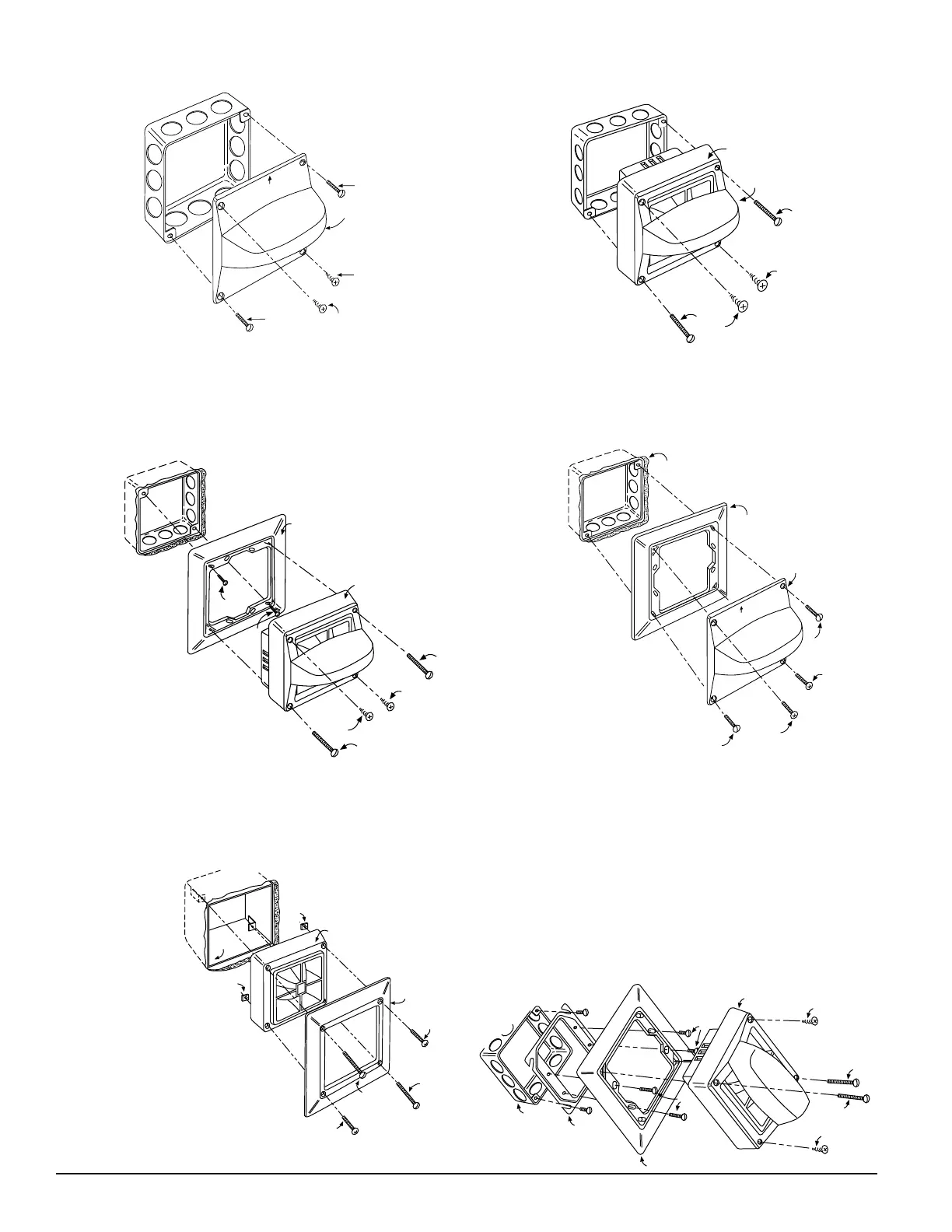

Figure 8. Strobe surface mount: Figure 9. Sounder/strobe surface mount:
Figure 10. Sounder or sounder/strobe semi-flush
mount:
Figure 11. Strobe semi-flush mount:
Figure 12. Sounder flush mount (deep box required):
Figure 13. Sounder or sounder/strobe semi-flush
mount with plaster ring:
Technical Manuals Online! - http://www.tech-man.com
