System Sensor MASS12LO User Manual

D900-05-00 4 I56-496-16
© System Sensor 1996
1. Complete field wiring. (See Fig. 6)
2. Screw strobe to box with screw A.
3. Fill remaining holes with screw B.
A78-1137-04
1. Screw strobe to sounder with screw B.
2. Complete field wiring. (See Fig. 7 & 8)
3. Screw sounder/strobe to box with screw A.
A78-1137-15
1. Screw strobe to plate with screw C.
2. Complete field wiring. (See Fig. 6)
3. Screw strobe plate to box with screw A.
A78-1137-17A78-1137-26
1. Screw plate to box with screw E.
2. Complete field wiring. (See Fig. 5, 7, and 8)
3. Screw sounder or sounder/strobe to plate with screw A.
4. Fill remaining holes with screw B.
A
B
B
G
G
MA 12/24
MP-SF
Plaster
Ring
Standard
Backbox
A
1. Fasten MP-F plate to sounder with screws C and nuts D.
2. Complete field wiring. (See Fig. 5)
3. Screw plate sounder to box with screws F.
1. Plaster ring should be properly mounted to electrical box
with screws supplied with box.
2. Screw plate to plaster ring with screw G.
3. Complete field wiring. (See Fig. 5, 7, and 8)
4. Screw sounder or sounder/strobe to plate with screw A.
5. Fill remaining holes with screw B.
A78-1137-08 A78-1137-20
C
F
F
C
MP-F
MA 12/24D
D
D
BB-D
BB-STD
B
A
A
B
Signal Strobe

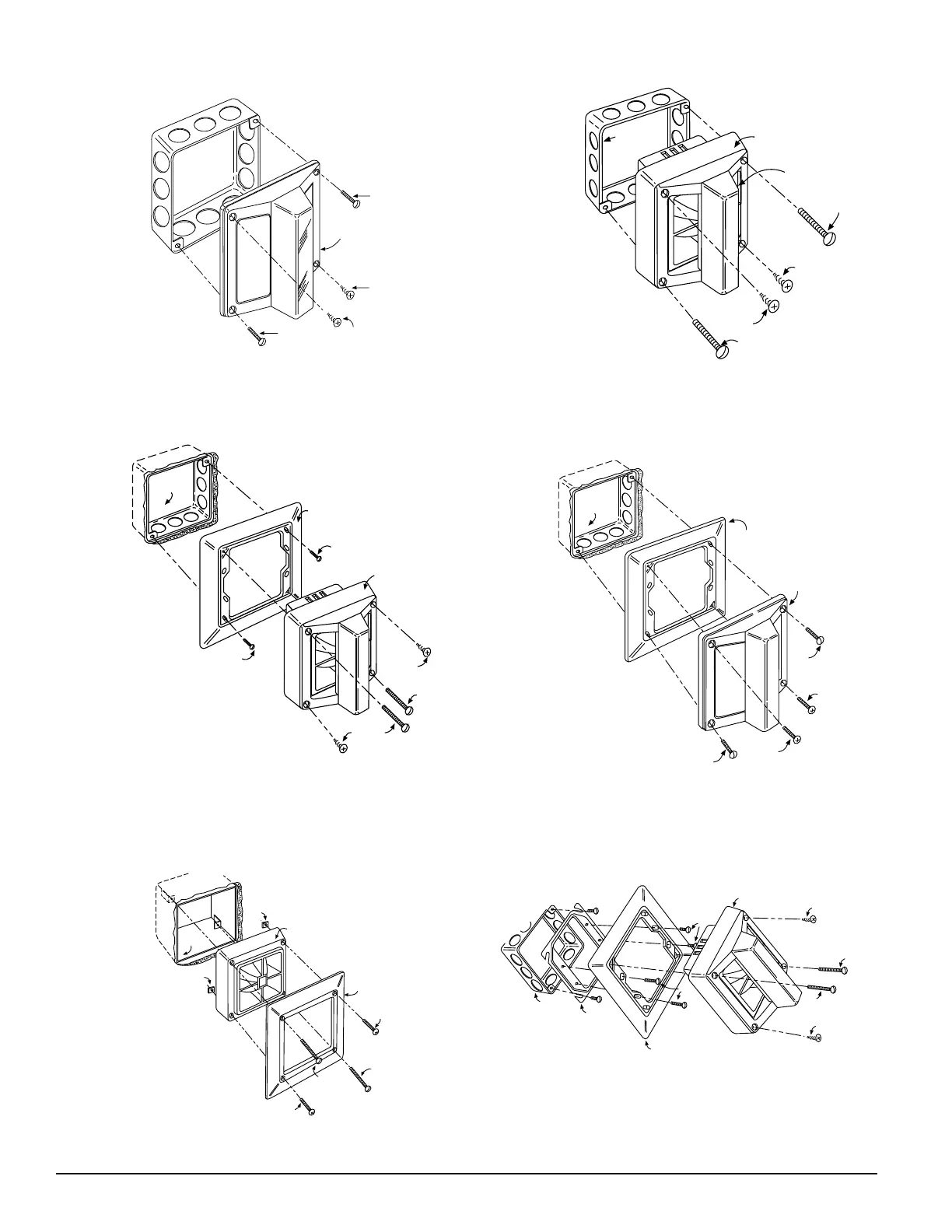

Figure 10. Strobe surface mount:
MA12/24D
BB-STD
A
B
B
A
Signal Strobe
Figure 11. Sounder/Strobe surface mount:
STANDARD
BACKBOX
E
MP-SF
MA 12/24D
E
B
B
A
A
Figure 12. Sounder or Sounder/Strobe semi-flush
mount:
BB-STD
MP-SF
C
C
A
A
Signal Strobe
Figure 13. Strobe semi-flush mount:
Figure 14. Sounder flush mount (deep box required):
Figure 15. Sounder or Sounder/Strobe semi-flush
mount with plaster ring:
