SystemAir KVKF 125 - Page 2

202341 (10-03-2011)
2

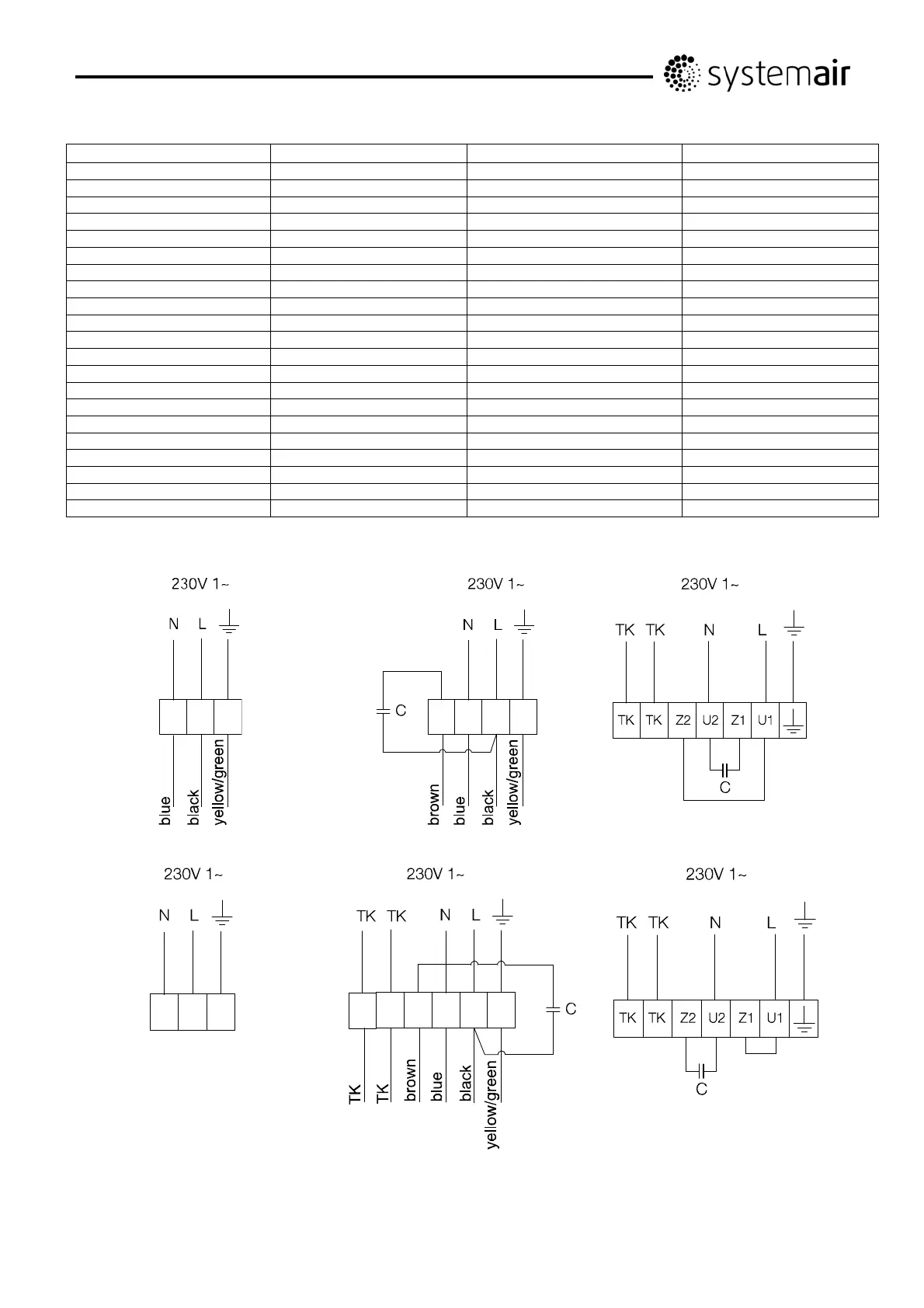

Fan Type Diagram Fan Type Diagram
CE 140 only 2 KVK DUO 5
CE 200 only 5 KVKE-series 4
CE-series (all other sizes) 6 KVKF/KVO 125-315 2
CKS-series 1~ 6 KVKF/KVO 355-400 6
CKS-series 3~ 8 RS 30-15 to 50-25 2
CT 200 7 RS-series 1~ (all other sizes) 6
CT-series (all other sizes) 8 RS-series 60-35 to 100-50, 3~ 8
K-series K/KV 100/125 M 1 RSI-series 1~ 6
K-series (K/KV other sizes) 2 RSI-series 60-35 to 100-50, 3~ 8
KD 200L to 355S 2 RVF 100M 1
KD-series 1~ (all other sizes) 6 RVF 100XL 2
KD-series 3~ 8 TFE 220 2
KDRD-series 8 TFER 125M only 1
KDRE-series 6 TFER 125XL-315 2
KE 40-20 only 5 TFSR 125M - 315L 1
KE-series (all other sizes) 6 TFSK 125M – 315L 1
KT 40-20 only 7 TOV-series 8
KT-series (all other sizes) 8 TOE-series 6
KVK 125-160 2
KVK 200-400 5
KVK 500 3
1
2
3
4
5
6
