SystemAir NOVA drive 370

Systemair NOVA drive 370
|
19
Motor model: 120TYD-S214L
Motor name: No gearbox Low Speed Motor
Motor Type: AC Synchronous Motor
Driver: AC Frequency Converter
Motor Parameters
Phase: 3ph
Supply Voltage: 133/230 V±10%
Rated Frequency: 50HZ
Frequency range: 0-1-50HZ
Speed Per Frequency: 4.286rpm
Current: 2.04/1.18A
Pole pairs: 14
Rated Speed: 214.3 rpm
Speed Range: 0-4.286-214 rpm
Rated Torque 8 N.m
Back Electromotive Force: 214 rpm = V
Rotor inertia
:
0.5
±
0.25Kg.cm
Connection mode: Y/∆
Rotation direction:: CW CCW
temperature rise: 75
℃
Working Time: S2 50%
Insulation Class: F
Insulation Resistance:
＞
200 M
Ω
Protection: IP54
Operating condition temperature: -25℃~50 ℃
Relative humidity: ≤80% (No Dew)
Cooling: IC410（Self-cooling）
Motor Weight: 8±0.05 kg

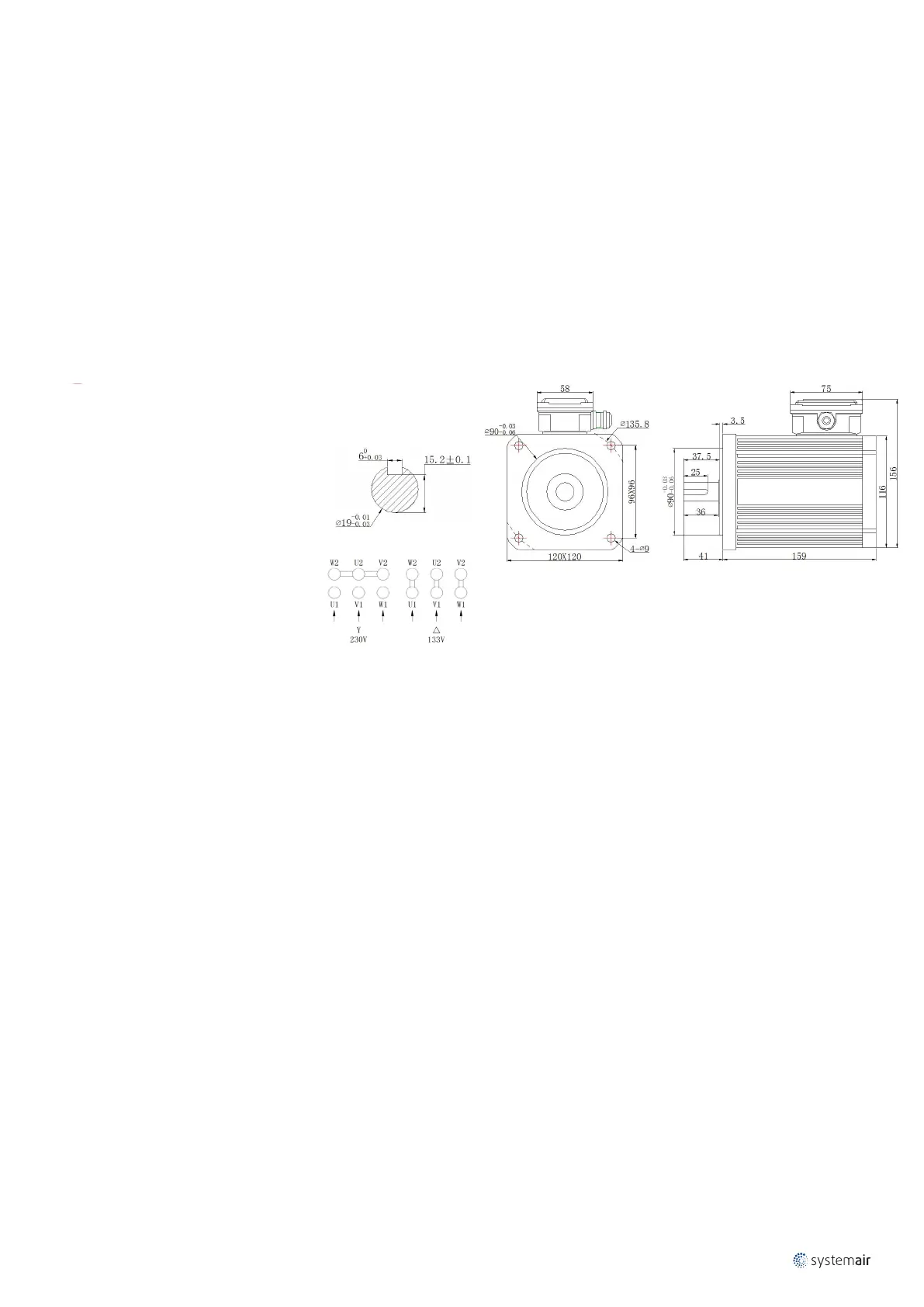

Mounting Dimensions
Systemair Item No. 90801105
Max Torque: 10NM
