Mounting Advices
Make sure that the device is power-off, if you install it!
The device can be installed on a smooth wall surface or a
flush box. It should be selected a representative location for
the measuring medias. The use of deep installation boxes is
recommended due to the increased storage capacity for the
cabling.
Sunlight and drafts e.g. in conduit must be avoided so that
the measuring result is not distorted. If necessary, is the end
of the installation tube seal
(1) For wiring, the upper part of the base plate must be
solved. Base plate and upper part are connected with each
other by mounting clips.
(2) The installation of the base plate to the smooth wall
surface can be done with plugs and screws.
(3) Then, the device is placed on the base plate.

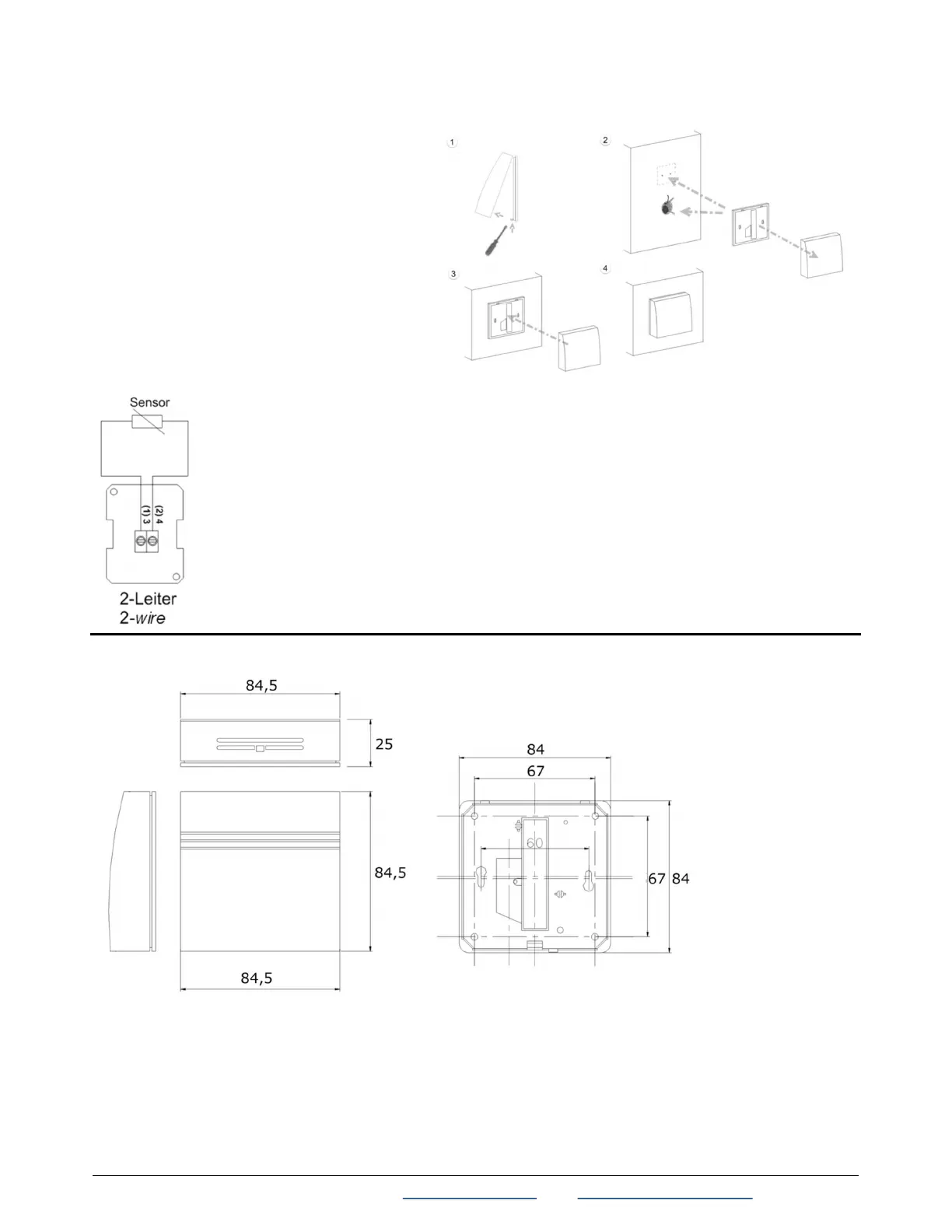

Dimensions (mm)
