SQ 147

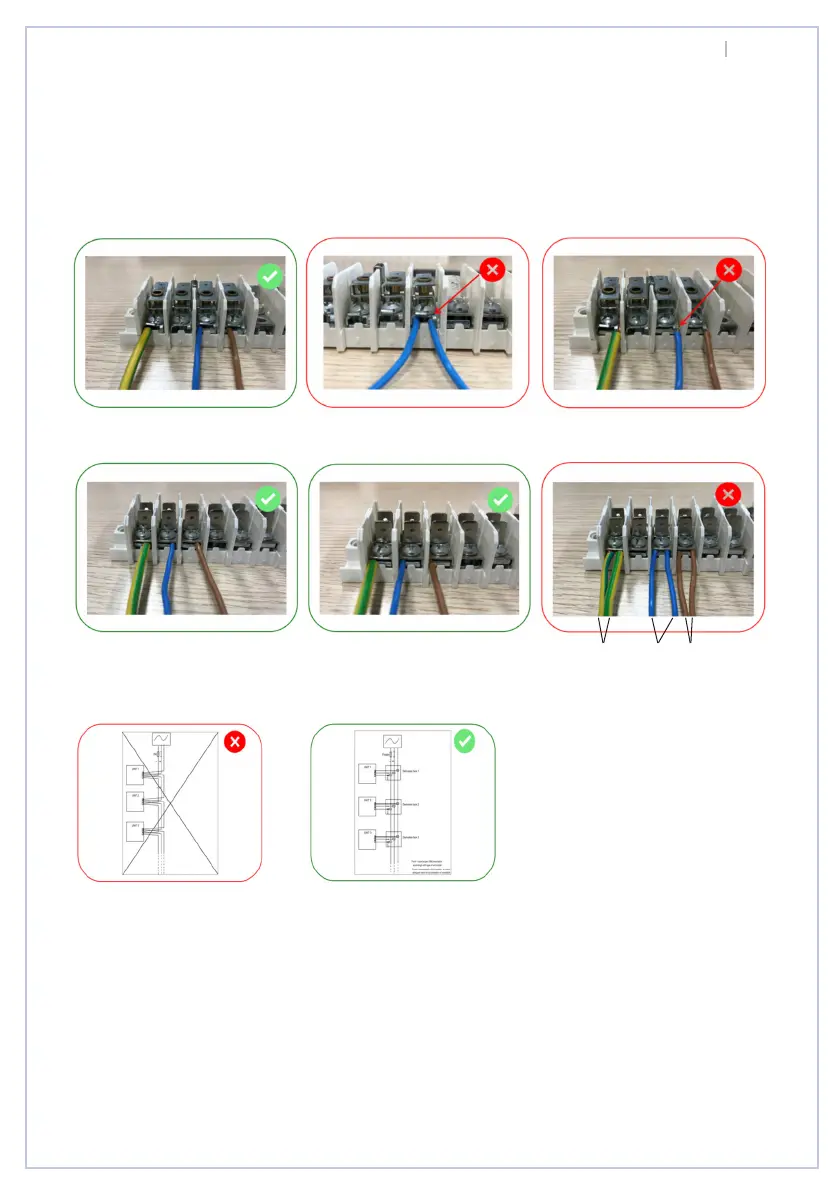

WARNING: When connecting power supply it is forbidden to put more than
• one wire end per screw clamp terminal with «hook» shape connector
Right hook side use is forbidden
• one wire end per screw clamp terminal with “U” shape connector (cf. Daisy chain section).
3. Daisy chain
WARNING: it is forbidden to supply other units from the terminal block
Green/yellow Blue Brown Blue Blue Green/yellow Blue Brown
Green/yellow Blue Brown Green/yellow Blue Brown
Green/yellow Blue Brown
