5.3Installingtheunit
Handleandhingesareremovable.
Inspectiondoorscanbeopenedwithoutahandle.Usea16mmcapkey.
Theunitcanbeinstalledinthefollowingpositions.

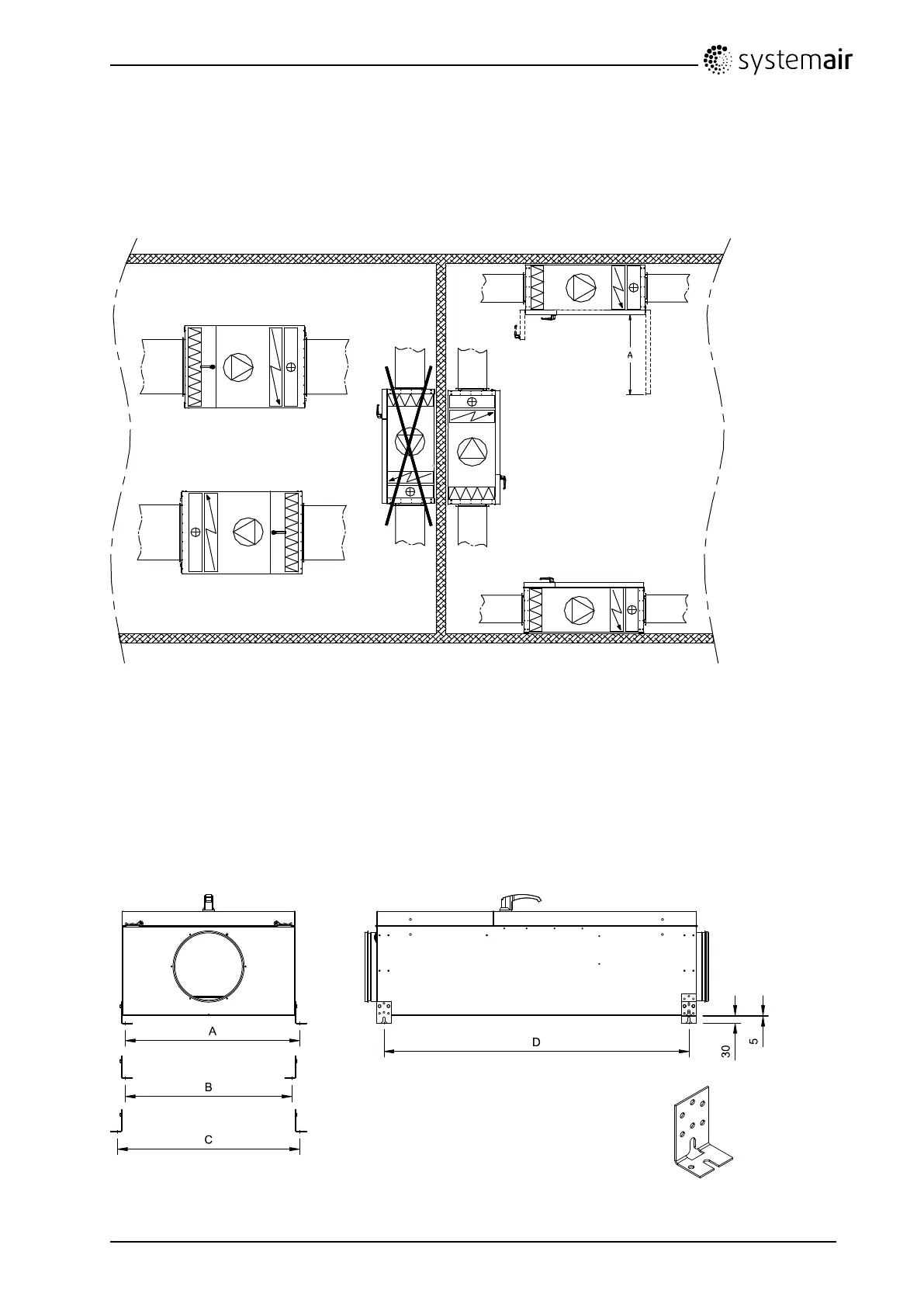

Fig.7Possibleinstallationpositions
WhentheHWunitsaremountedhorizontallyonawall,leftingure7,alwaysmakesurethatthewater
pipeconnectionsareabovethebattery,sotheHWbatterycanbeeproperlyde-aired.Byunscrewing
threescrewstheHWbatterycaneasilyberotated.
5.3.1Mountingbrackets
TogetherwiththeTAunitfollows4mountingbracketsthatallowstheunittobemountedinaccordance
withgure7andgure8.
Fig.8Mountingbrackets
TA450-4500Installationinstructions
132615
