Systemline SLM2 - Module Connection Details; Passive Speaker Wiring; Active Module Terminations; Required Termination Tool

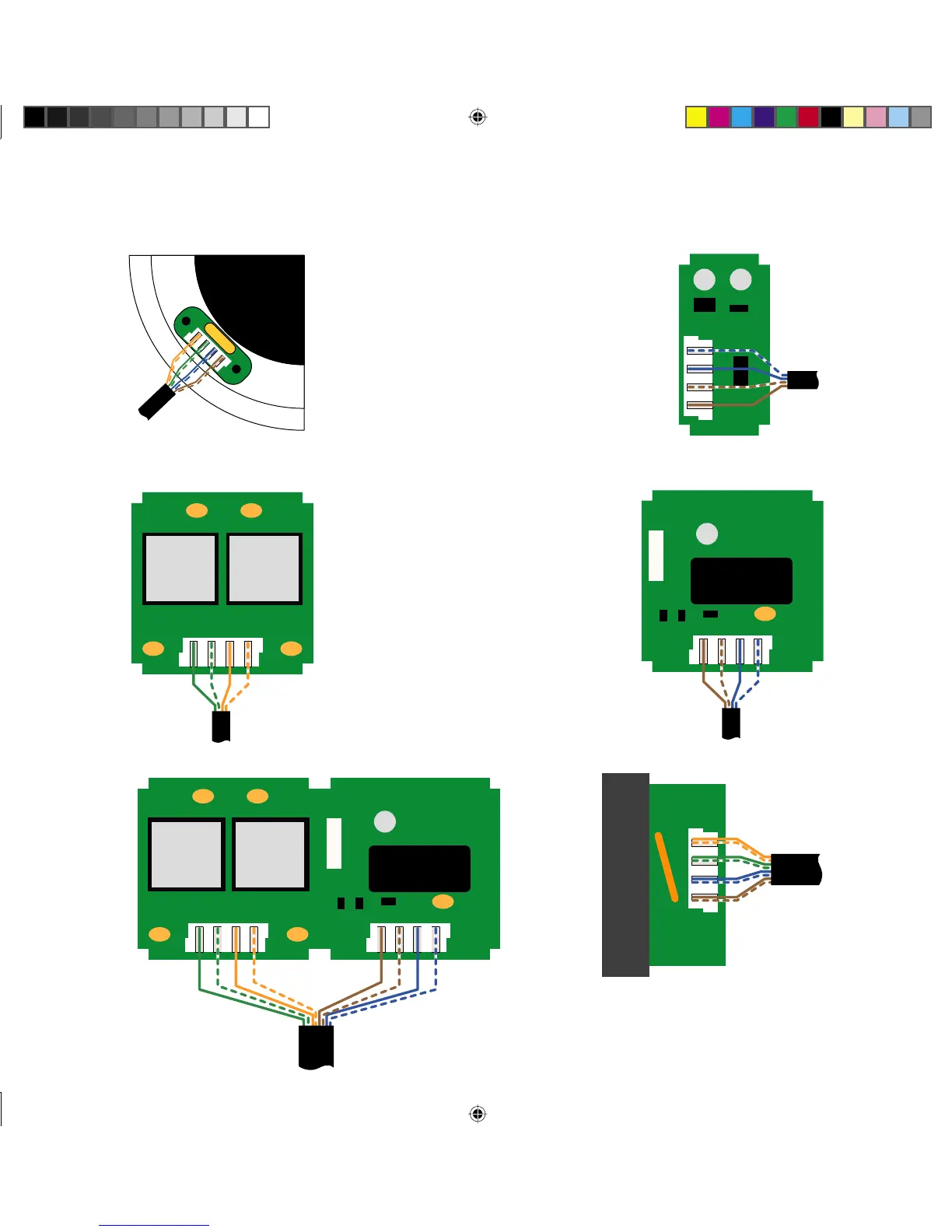

Module connections
All terminations require a 110 punch-down
tool. No other tool should be used or the
crimp connections will be damaged.
SIM
(rear view)
IRM
(rear view)
CIM
(rear view)
KPM1
(rear view)
PIM
(side view)
PASSIVE SPEAKER
(left)
