T.I.P. SPF 250 F User Manual

5

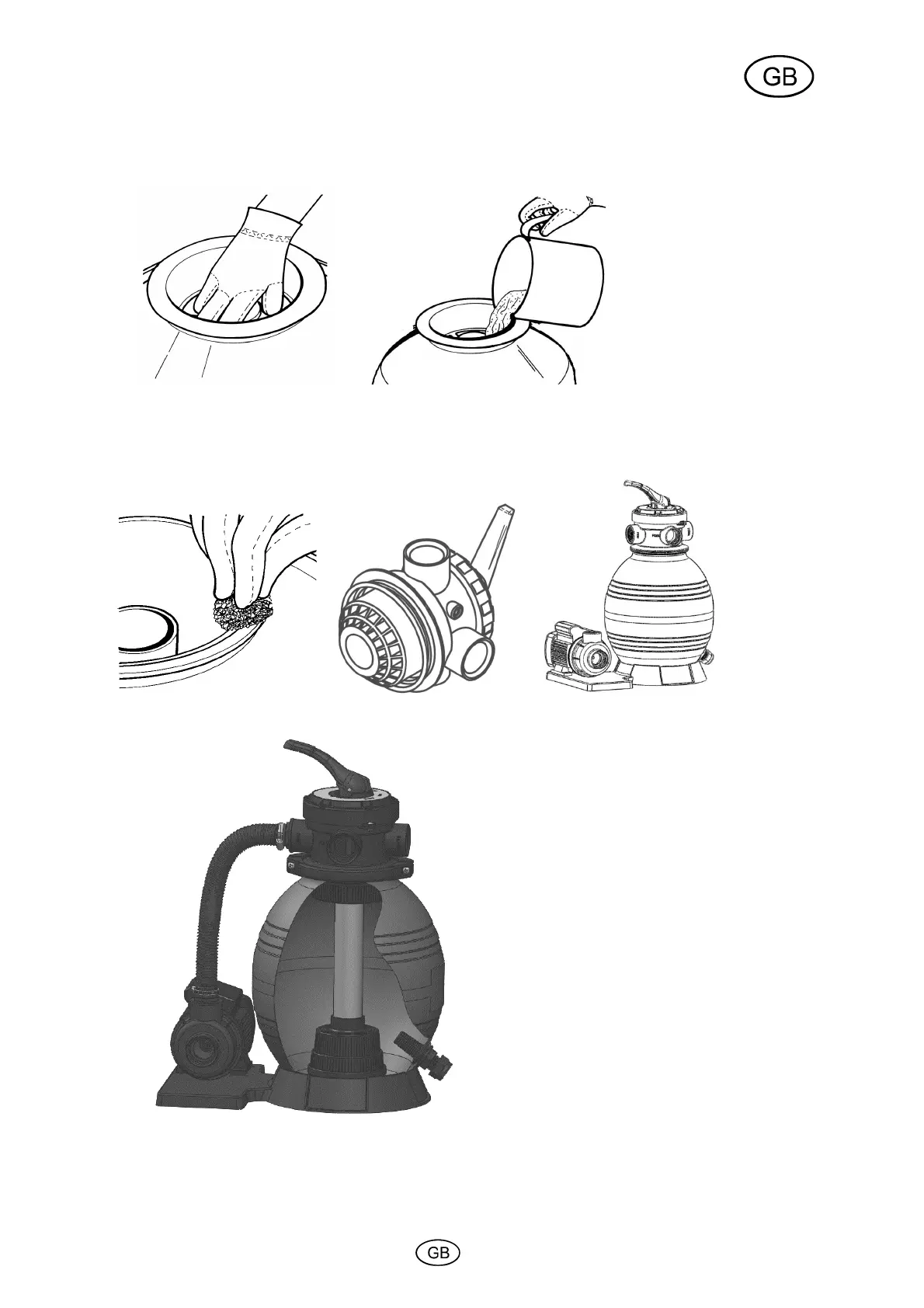

4. Insert the tube with filter basket inside the tank as above picture, then place the funnel on the
tank’s mouth and pour the quartz sand into the tank (sand weight 13 kg). Please ensure no sand is
falling into the tube. (fig. 4)
fig. 4
5. Remove the funnel and clean the edge of the container opening carefully sand residues. To facili-
tate the start-up, it is recommended to fill the sand filter tank to ¾ with water. Then mount the 4-
way valve and the filter gasket (O-ring, Fig. 5). The connection is made with a clamping ring. The
clamping ring is screwed to the clamping ring screw and clamping ring nut.
fig.5
6. Connect the sand tank to pump with hose, hose clamps and hose adaptors. (fig. 6)
fig. 6
20

T.I.P. SPF 250 F Specifications

General

Brand	T.I.P.
Model	SPF 250 F
Category	Lighting Equipment
Language	English
