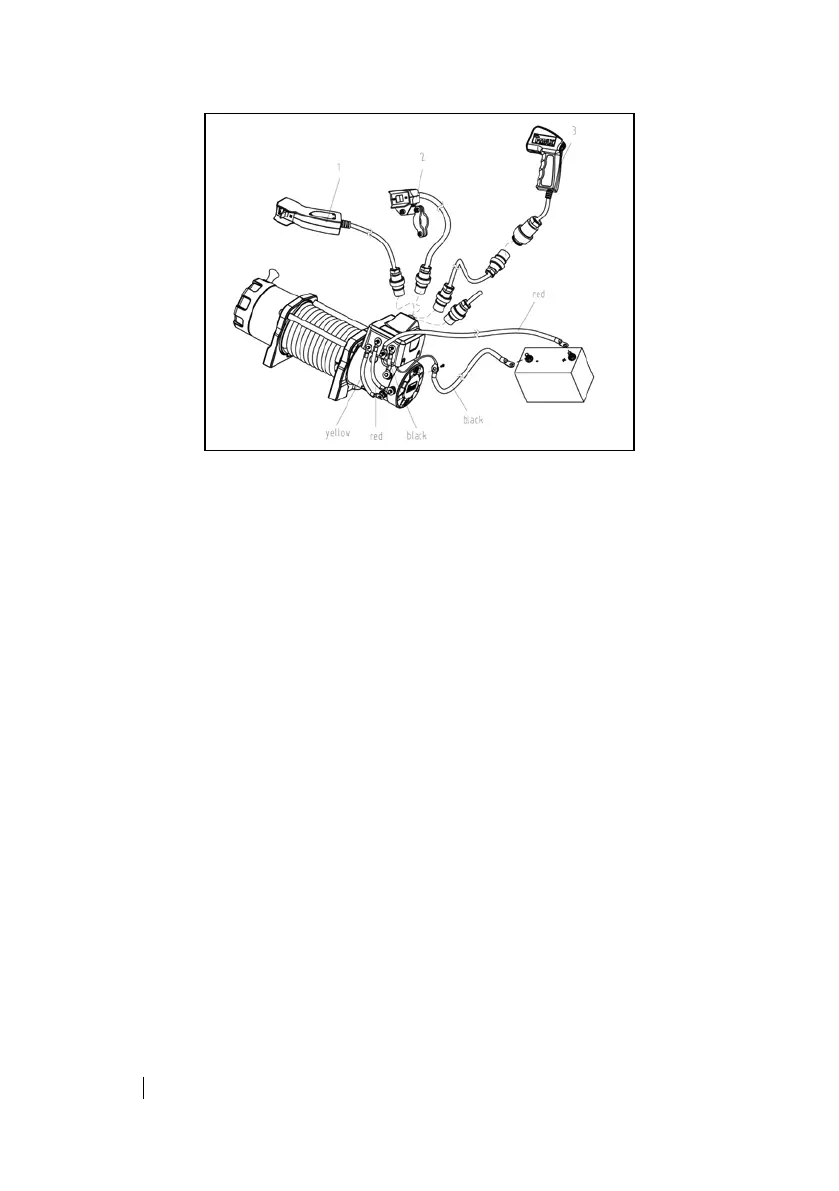

Battery Cable Wiring Diagram
Step (7) Check the Winch
Before to operate your winch, please check the following issues:
1. All connections of cables is correct;
2. No cable or tie-in is uncovered well;
3. All cables should be wrapped by Thermoplastics Pipes;
4. To disengage the clutch, turn on the remote control as “OUT”
position. Cable may be free spooled off the drum;
5. To engage the clutch, turn on the remote control as “IN” position.
The winch is now ready for pulling.
MAINTENANCE
Periodically check tightness of mounting bolts and electrical
connections. Clear any dirt or corrosion that may have accumulated on
the electrical connections.
