T-MAX ATW 6000 - ATW6000 Features and Specifications

T-MAX
UTV SERIES

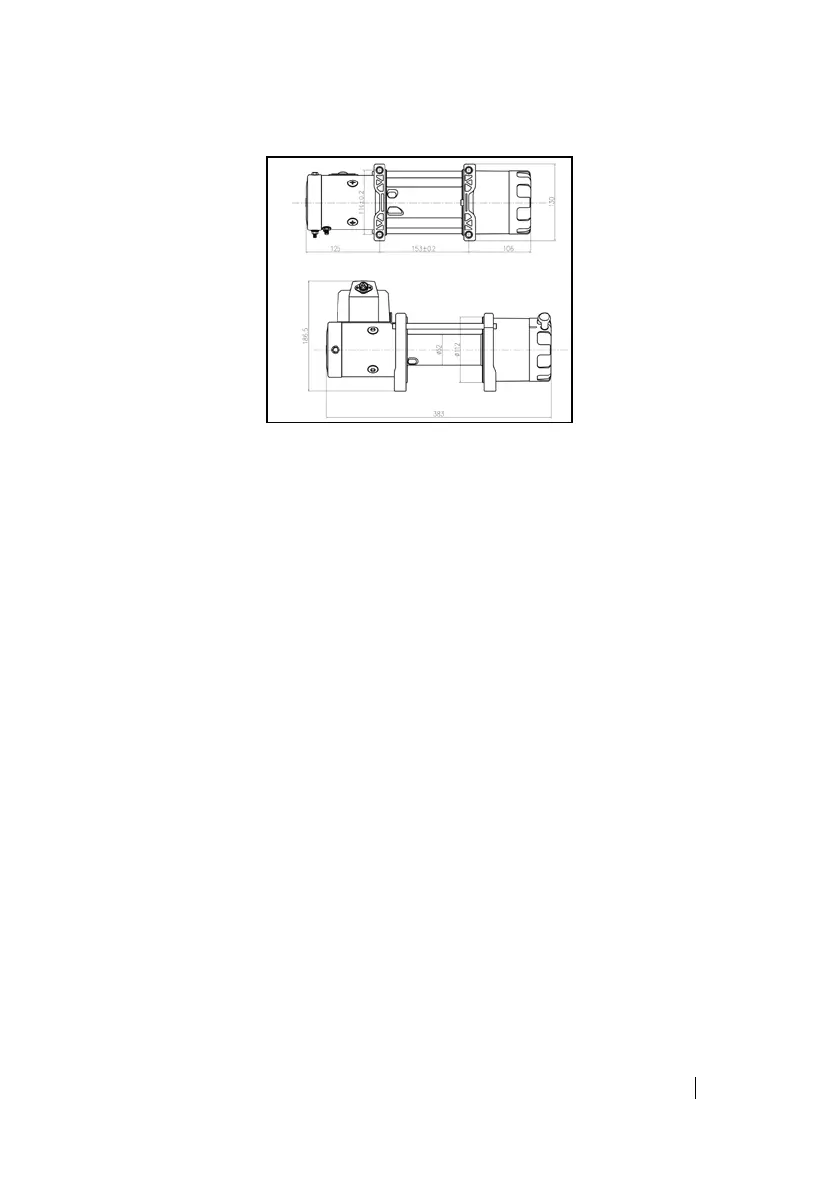

DEMENSION
Note: The unit of dimension is mm.
Features & Specications:
P/N: 7305101(Radio Control)
P/N: 7305100(Non-Radio Control)
Rated Line Pull: 6000 lbs (2720kgs) Single-line
Motor: 12V , 1.3HP (Series Wound)
Control: Radio Control / Remote Control
Gear Ratio: 148:1
Clutch: Turn 90°By Hand wheel
Barking: Eccentric Block Type
Drum Size: Diameter 2.08” (53mm) x Length 5.33” (128mm)
Recommended Battery:650CCA Minimum for Winching
Fairlead: Roller Fairlead
Wire Rope: Length x Diameter (18mX6.8mm)
Mounting Bolt Pattern: 6.02” (153mm) x 4.33”(110mm)
Weight: 17KGS(37.5Lbs)
Overall Dimensions: (LxWxH) 15.08”x5.12”x7.32”(383mm x 130mm
x186mm)
P/N: 7305111(Radio Control)
P/N: 7305110(Non-Radio Control)
Rated Line Pull: 6000 lbs (2720kgs) Single-line
Motor: 12V , 1.3HP (Series Wound)
Control: Radio Control / Remote Control
Gear Ratio: 148:1
Clutch: Turn 90°By Hand wheel
06
