T-MAX ATW 6000 - Page 6

T-MAX
UTV SERIES
05

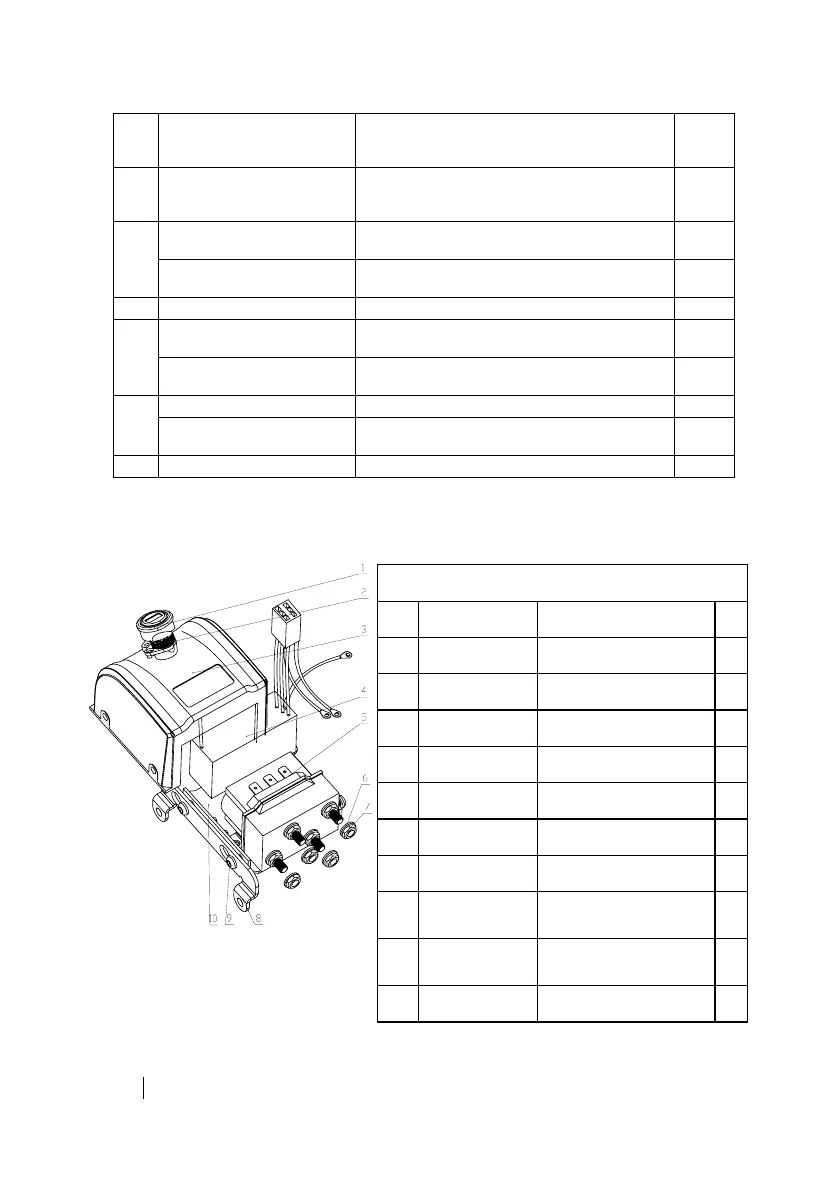

EXPLODED VIEW OF ATW6000’s CONTROL BOX
No. Description Qty
1 7329200.6A-10 Plug Cover 1
2 7329200.6A-11 Socket 1
3 7241100.6.5-1 Mini box 1
4 7241100.6.5-2
Radio Sender &
Receiver
1
5 7241100.6.1 ISM 1
6 GB/T93 6 Washer 8
7 GB/T41 M6 Nut 8
8 7241100.6.5-3 Mounting Plate 1
9 G B / T 7 0 . 2
M5×10
Bolt 8
10 7241100.6.5-4 Control Box soleplate 1
39 7241100.6-2
Short Black Cable (25mm2 x 10cm)
(wrapped by Red Thermoplastics
Pipes)
1
40 7241100.6-3
Short Black Cable (25mm2 x 10cm)
(wrapped by Yellow Thermoplastics
Pipes)
1
41
7241100.6.2 (W)
Control for ATV Use (match to Wire
Rope)
1
7241100.6.2 (S)
Control for ATV Use (match to Synthetic
Rope)
1
42 7241100.6-4 Long Cable (25mm2 x 180cm) 2
43
7241100.6.3 (W)
Remote Handle Control for UTV &
Utility Use (match to Wire Rope)
1
7241100.6.3 (S)
Remote Handle Control for UTV &
Utility Use (match to Synthetic Rope)
1
44
7241100.6.4 (W) Control Box Assy(match to Wire Rope) 1
7241100.6.4 (S)
Control Box Assy(match to Synthetic
Rope)
1
45
7241100.6.5
Radio Hand Control 1
Part No.
