PM SERIES PROFESSIONAL MIXING CONSOLE

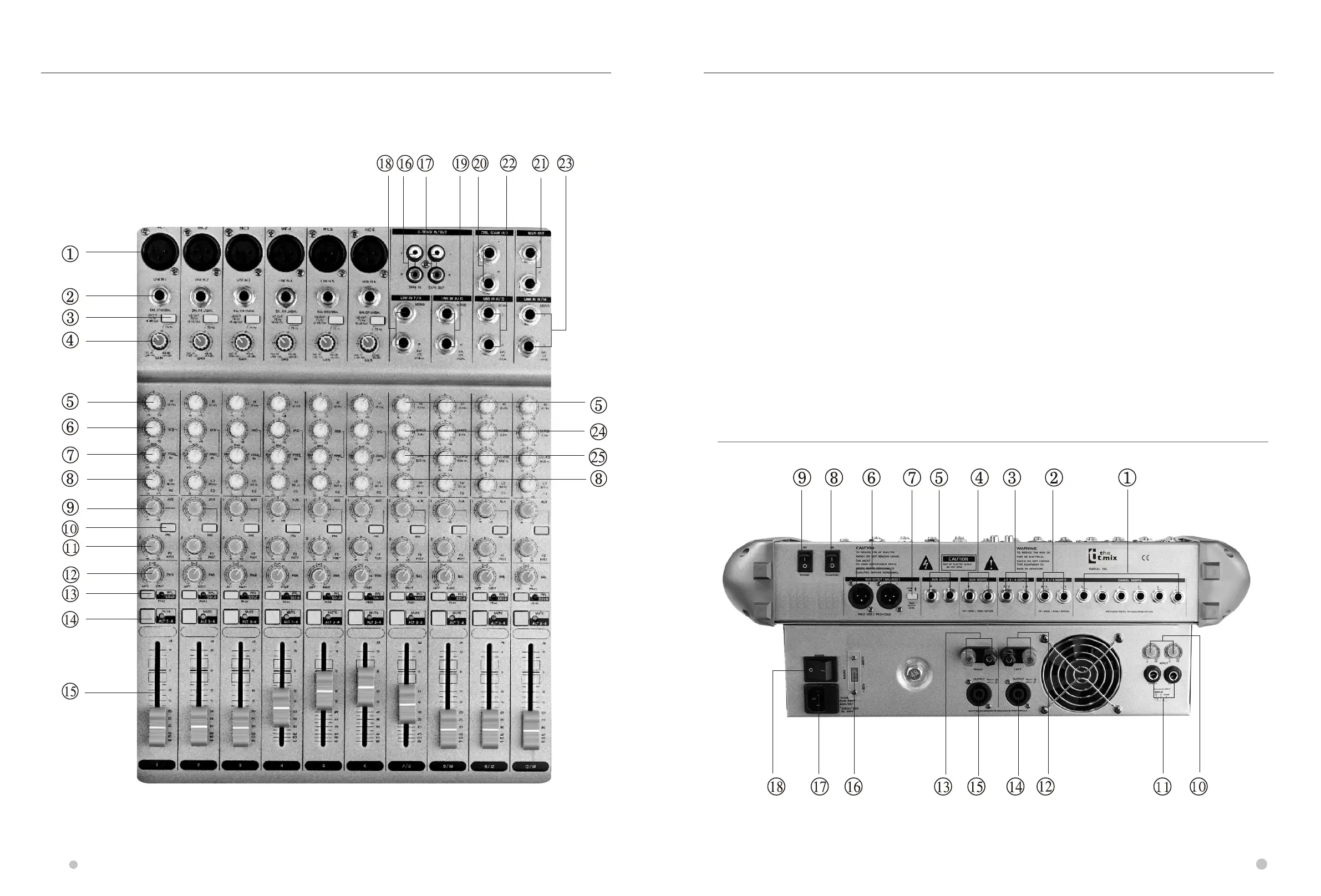

(24) ALT3-4 OUTPUT PFL
(25) PFL/SOLO
When you push the SOLO/PFL button, the SOLO/PFL control led will light up.
(26) OUTPUT LEVEL DISPLAY AND WORKING INDICATOR
You can choose the master channel and monitor the output level from the chosen bus channel.
(27) HEAD PHONE JACK
You can monitor the working condition by phone. You can also monitor the master sound and a certain channel.
(28) +48V PHANTOM POWER
(29) POWER INDICATOR
(30)(31) UP AND DOW BUTTONS
You can choose the desired preset
(32) ENTER BUTTON
It activates the secleted preset.
