50
(2).

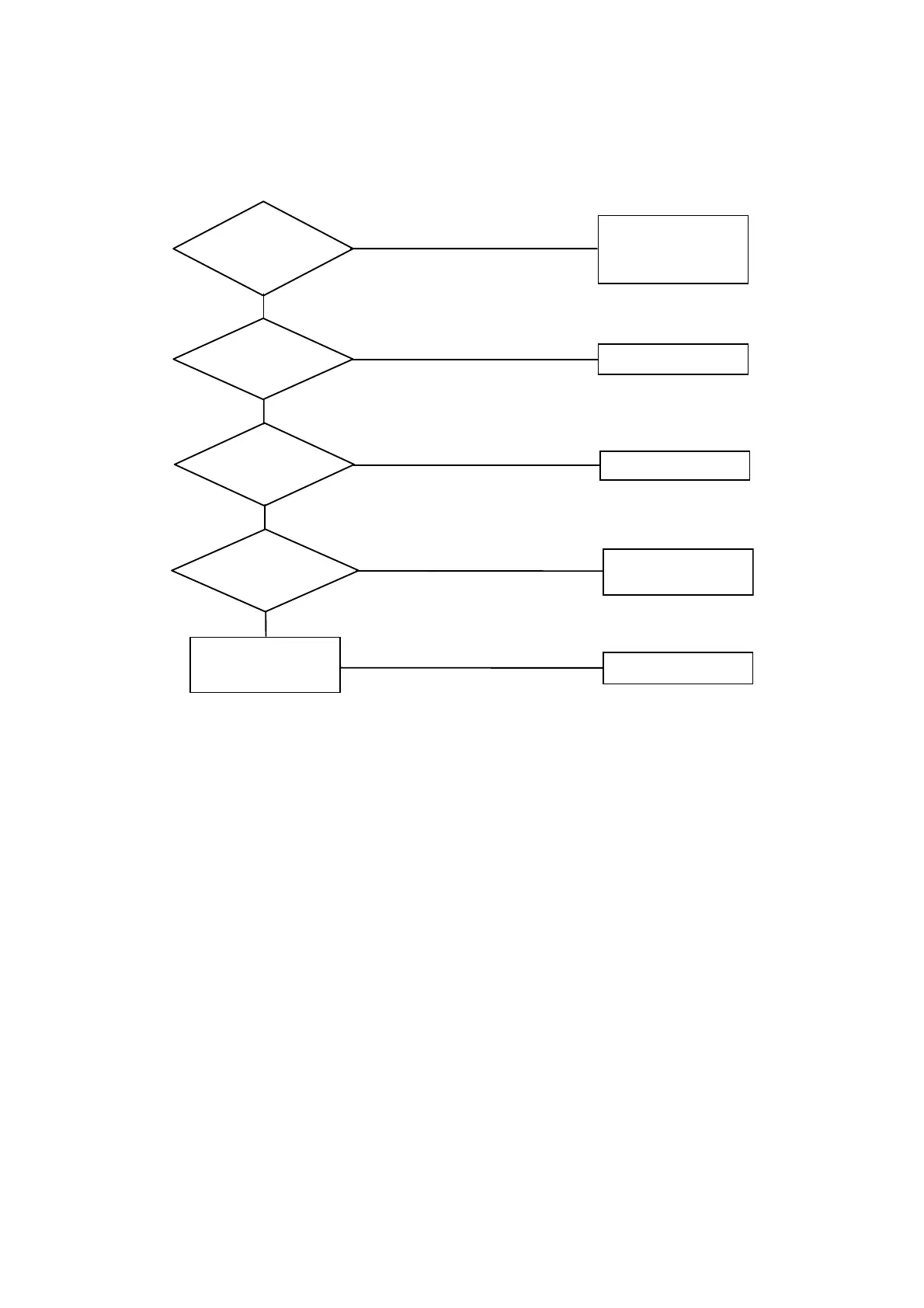

Motor over-heat
Is there
anything that
might
affect motor
cooling?
Reduce
loading
Enlarge
E2
and
Moto
r capacity
Is the
voltage level between
T1-T2,
T2-T3, and T3-T1
normal?
YES
Operate at
low
speed for a long time?
Select another motor
Remove ob
stacle
affecting motor cooling
Correct the connection
NO
YES
YES
E2 malfunction
Poor connect
ion
betw
een E2 and motor
Is
there over-loading
condition or the load c
urrent
exceeds rated
current?
NO
YES
YES
NO
NO
51
53
Table of Contents
Table of Contents
2
Safety Information
3
Examination before Installation
4
Precautions for Operation
5
When Power Is Applied
6
Under Operation
7
When Performing an Examination or Maintenance
7
Precautions of Operation Environment
8
Hardware Instructions and Installation
9
Operational Environment
9
External Fan Placement
9
Sample Model No. Identification
10
Specification
11
Suitable Optional and Wiring Specification
13
Application and Precautions of Peripherals
14
Leakage Circuit Breaker
14
Magnetic Contact
14
Inverter
14
EMI Connections
15
Control Circuitry
16
The Grounding Terminal of the Inverter
16
To Reduce the Noise Interference and Avoid Operational Problems
16
Wiring Diagram
17
Inverter Terminal Descriptions
19
Primary Circuitry Terminal Block (TM1) Descriptions
19
Control Circuitry Terminal Block (TM2) Description
19
SW1 Function Description
20
Dimensions & Location of Terminal Block
20
Dimensions & Installation of Class B Filter
21
Mounting Instructions
22
Din Rail Mounting Diagram
23
Additional DIN Rail Installation
23
Circuit Diagram
26
Connectiona and EMC Mounting
27
Software Index
29
Keypad Operating Instructions
29
Brief Keypad Operation Flowchart
29
Parameter List
30
Parameter Function Description
31
Acceleration / Deceleration Time Calculation Formula
31
Operation Mode Selection
32
Motor Rotation Direction Setting = 0: Forward
32
F_05: V/F Pattern Setting = 1 ~ 6
33
Frequency Upper/Lower Limit Range=1~120Hz
34
Start / Stop Control
34
Speed Control
35
Carrier Frequency = 1 ~ 10
35
Torque Compensation Gain = 0 ~ 10 %
35
Motor Rated Current
37
The Electronic Thermal Overload Protection for Motor
37
The Electronic Thermal Protecting for Inverter
37
Multifunctional Input Terminal 1/2 Function
38
External Emergency Stop
38
External Base Block (Immediate Shut Down)
38
Multi-Function Output Terminal Control = 1 ~ 3
39
Reverse Lock-Out
39
Auto-Restart after Momentary Power Loss
40
Number of Auto-Restart Times
40
Return to Factory Pre-Settings
41
Multi-Speed2/3
41
CPU Program Version
42
Last Three Faults
42
Malfunction Indications and Countermeasures
43
Manual Reset Inoperative Malfunctions
43
Manual Reset Operative Malfunctions (Auto-Reset Inoperative)
43
Manual Reset and Auto-Reset Operative Malfunction
44
Special Condition Description
45
Keypad Operation Error Instruction
45
General Malfunction Examination Method
46
Troubleshooting Procedures
47
Inverter Malfunction
47
Error Handling of Malfunction Indication of OC.OL
49
Error Handling of Malfunction Indication of OV.LV
50
Motor Inoperative
51
Motor Over-Heat
52
Disturbing Motor Operation
53
Routine Examination and Periodical Examination
54
Connection for Dielectric Strength Test
55
Voltage Current Measurement
56
EMI Filter (Class B) Specification
57
DIN RAIL Specification
57
Specification of Braking Resister and Input Reactor
57
Specification of Braking Resister
58
Parameters Table
59
Basic Specification
60
