IDENTIFICATION OF CONTROLS
Take a minute to familiarize yourself with the transmitter’s controls. The
transmitters in the illustrations for both 3 and 4-channel are the same, but the
servos are connected to the receiver differently depending on whether or not
your model has ailerons.

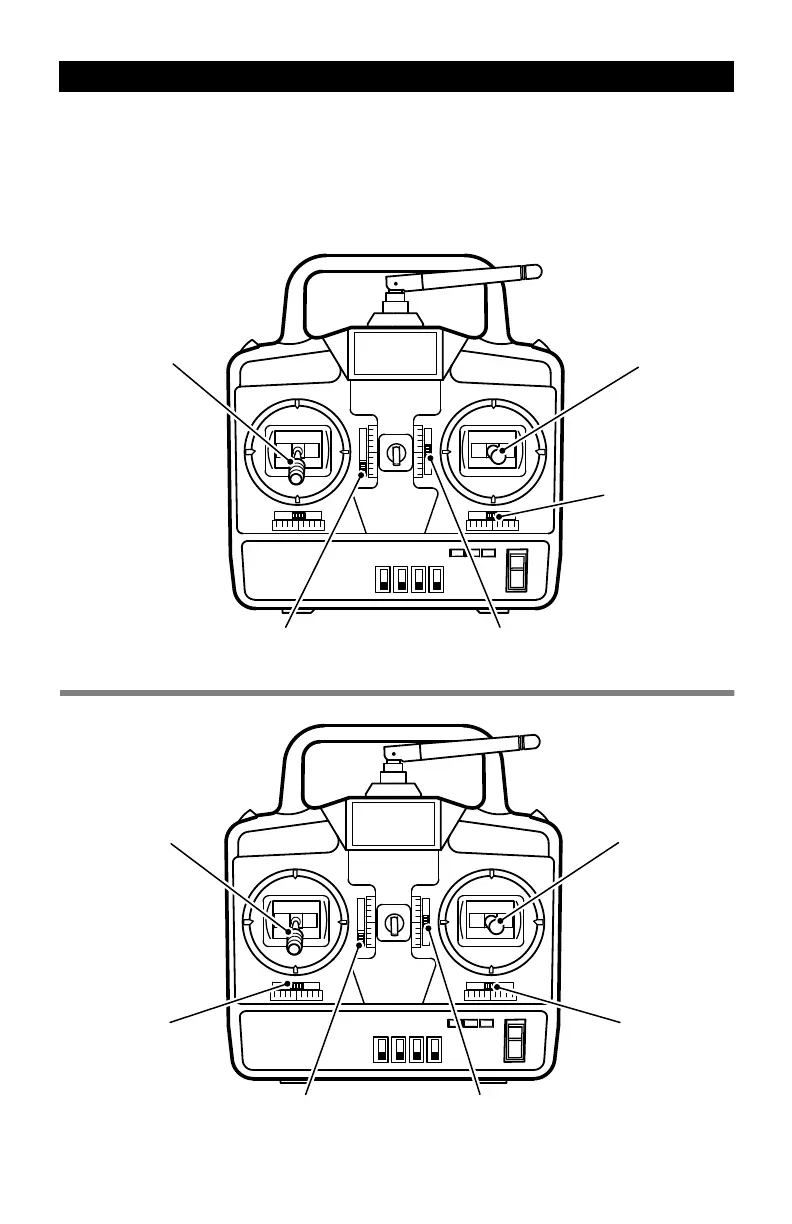

FLIGHT CONTROLS
3
channel
Rudder
Trim Lever
Throttle
Trim Lever
Elevator
Trim Lever
(throttle-channel 3)
LEFT
Control Stick
(rudder-channel 1,
elevator-channel 2)
RIGHT
Control Stick
Rudder
Trim Lever
Aileron
Trim Lever
Throttle
Trim Lever
Elevator
Trim Lever
(throttle-channel 3,
rudder-channel 4)
LEFT
Control Stick
(aileron-channel 1,
elevator-channel 2)
RIGHT
Control Stick
4
channel
