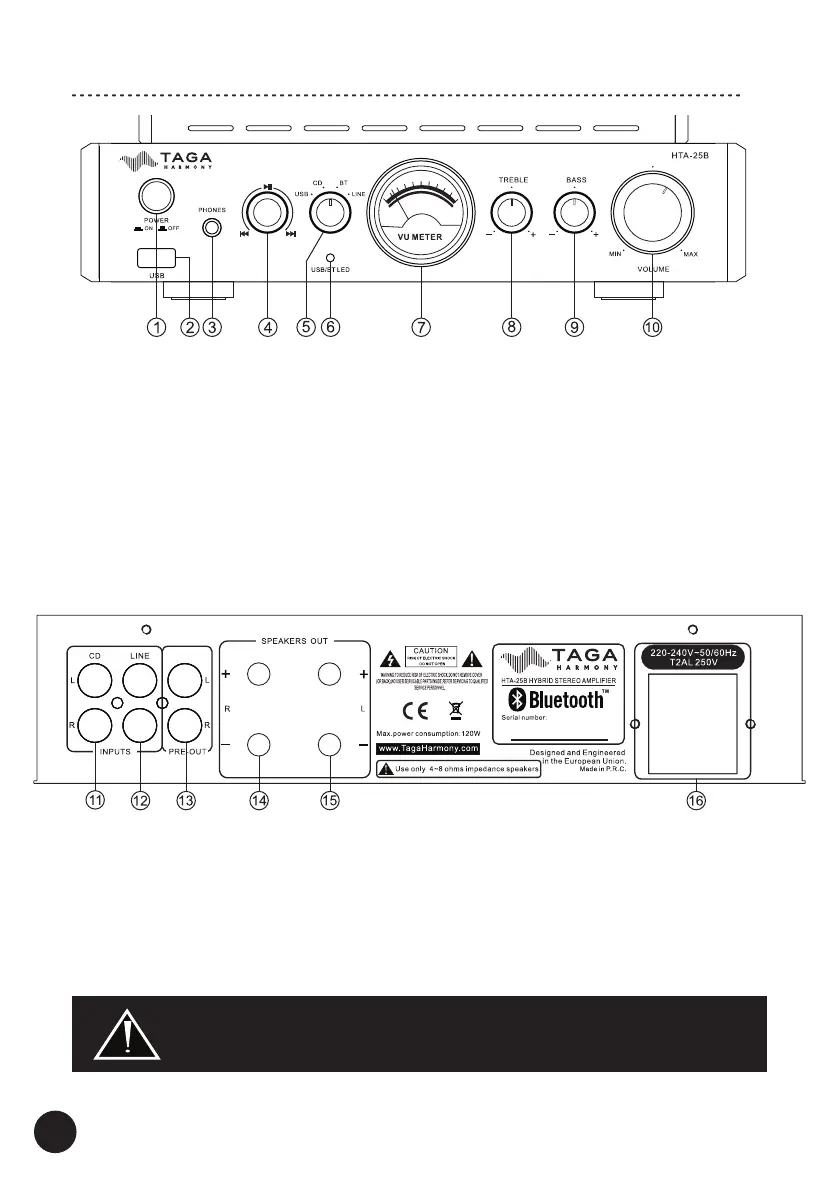

Front and Rear Panel

Front Panel

1. Power Switch (ON and OFF) and Power Status Indicator (around the Power Switch)

2. USB Port

3. Headphone 3.5 mm (1/8") Output

4. USB and Bluetooth

Knob (Play/Pause, Next/Previous)

5. Input Selector (USB, CD, Bluetooth, LINE)

6. USB/ Bluetooth

Input Led Indicator

7. Signal Level Meter

8. Treble Regulator

9. Bass Regulator

10. Volume Regulator

Rear Panel

11. CD Stereo RCA Input

12. LINE Stereo RCA Input

13. Preamplier Stereo RCA Output

14. Speaker Right Channel Output (Speaker Connectors)

15. Speaker Left Channel Output (Speaker Connectors)

16. Power Cable Input and Fuse Box

A blown fuse should be only exchanged for exactly the same type

as indicated on the rear amplier panel.

The Power Cable should be disconnected!
