174 Interface Fault Finding TM8100/TM8200 Service Manual
© Tait Electronics Limited June 2006

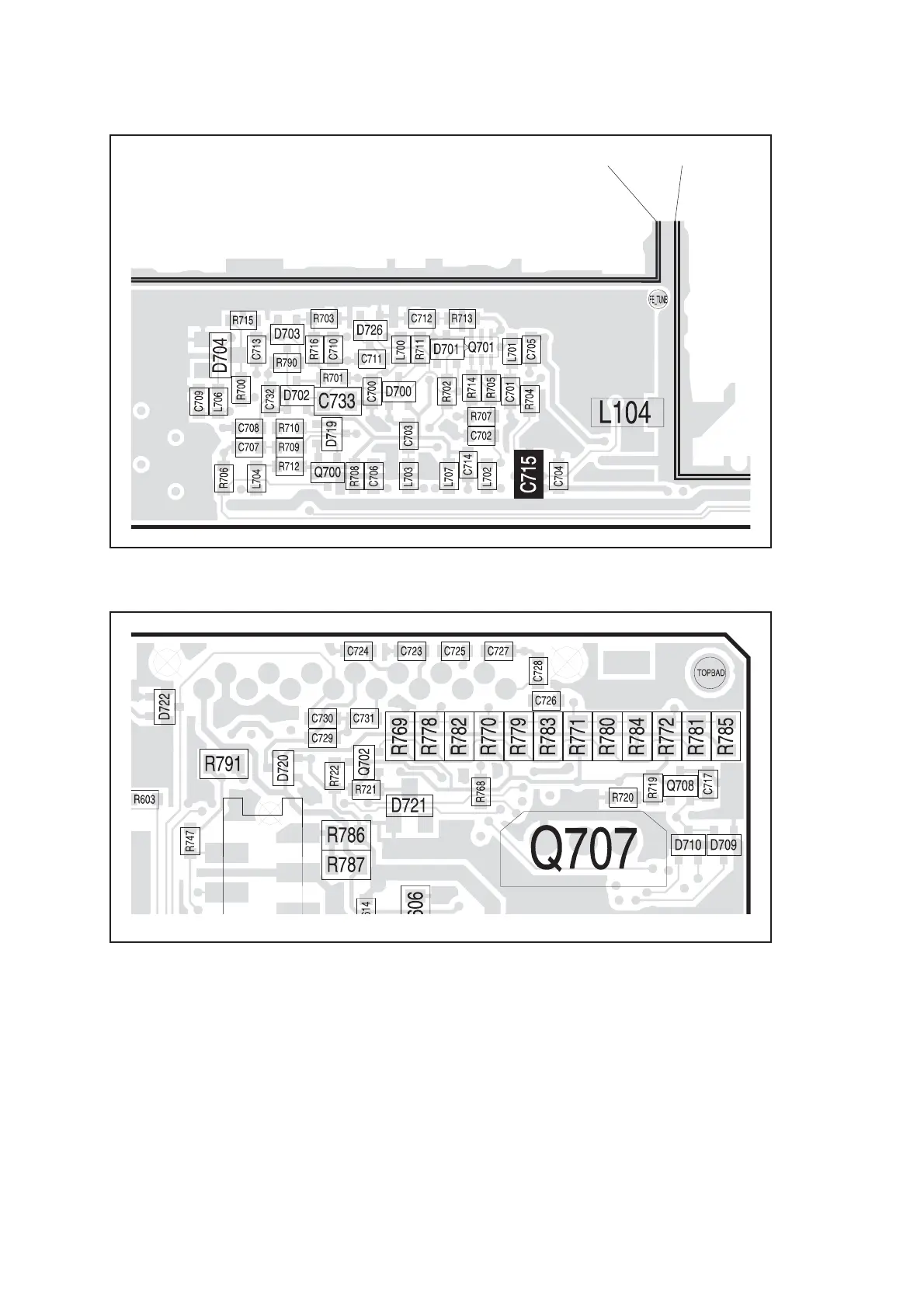

Figure 8.2 Components of the interface circuitry (top side near the CDC TOP and IF TOP cans)
Figure 8.3 Components of the interface circuitry (top side at the corner)
CDC TOP CANIF TOP CAN
