186 Frequency Synthesizer Fault Finding TM8100/TM8200 Service Manual
© Tait Electronics Limited June 2006

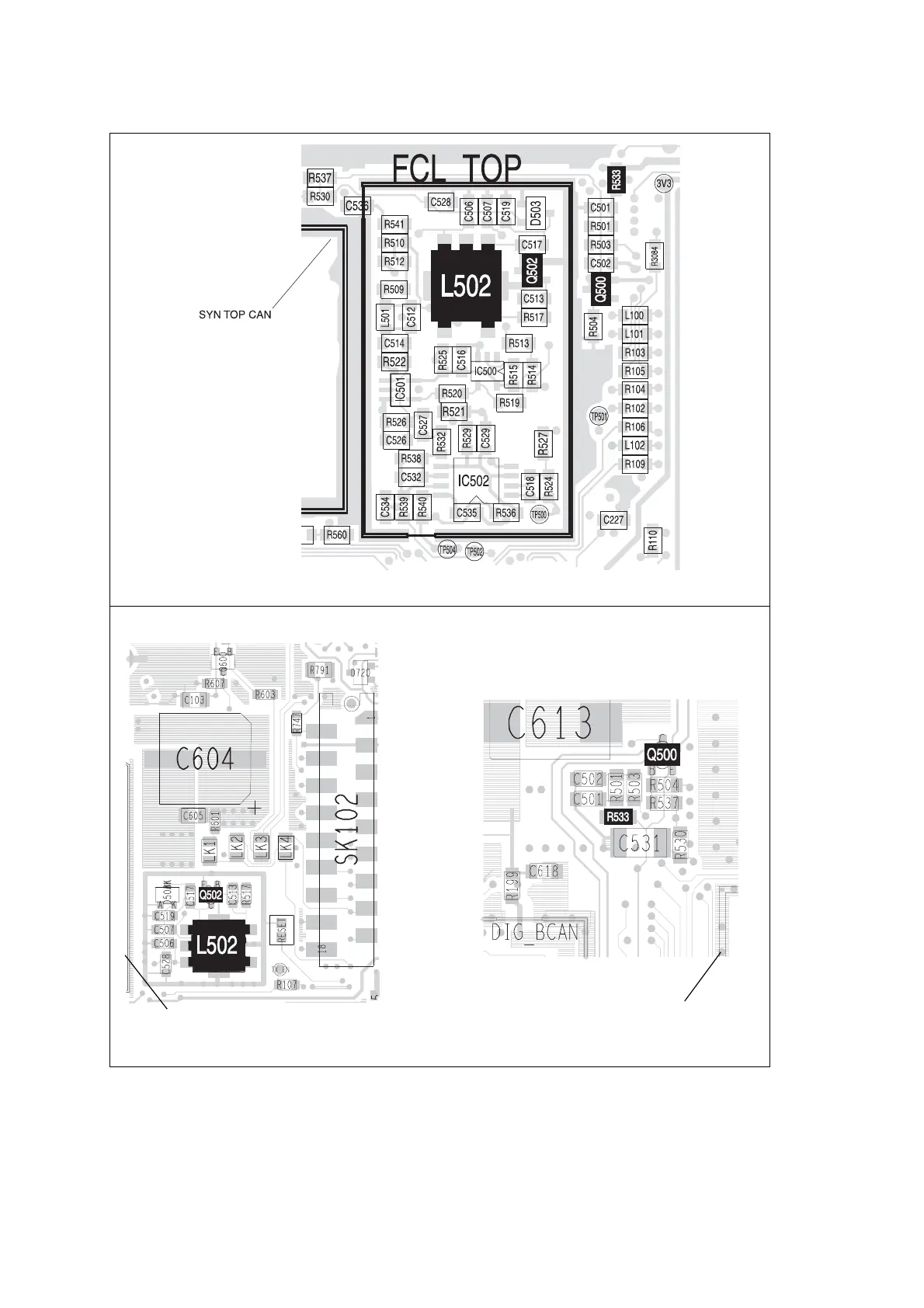

Figure 9.3 Synthesizer circuitry under the FCL TOP can (top side)
A4 band
PAD TOP can
(top side PCB)
VCXO BOT can
(bottom side PCB)
