TM8100/TM8200 Service Manual Receiver Fault Finding 241
© Tait Electronics Limited June 2006

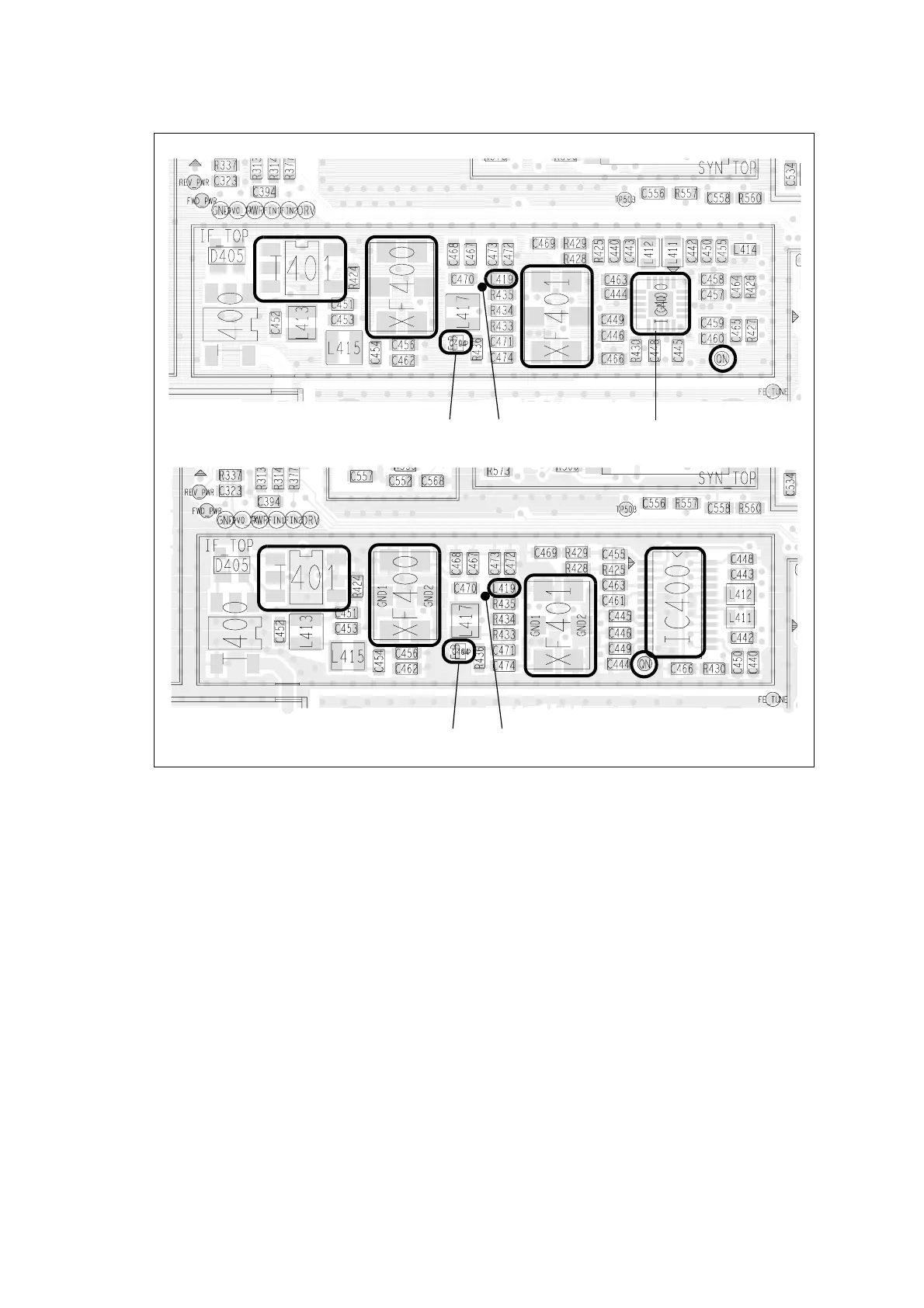

Figure 10.1 Receiver circuitry under the IF TOP can (top side)
Q404
UHF
Measurement point
VHF
Q404 Measurement point
IC400
