TM8100/TM8200 Service Manual Transmitter Fault Finding (40W/50W) 321
© Tait Electronics Limited June 2006

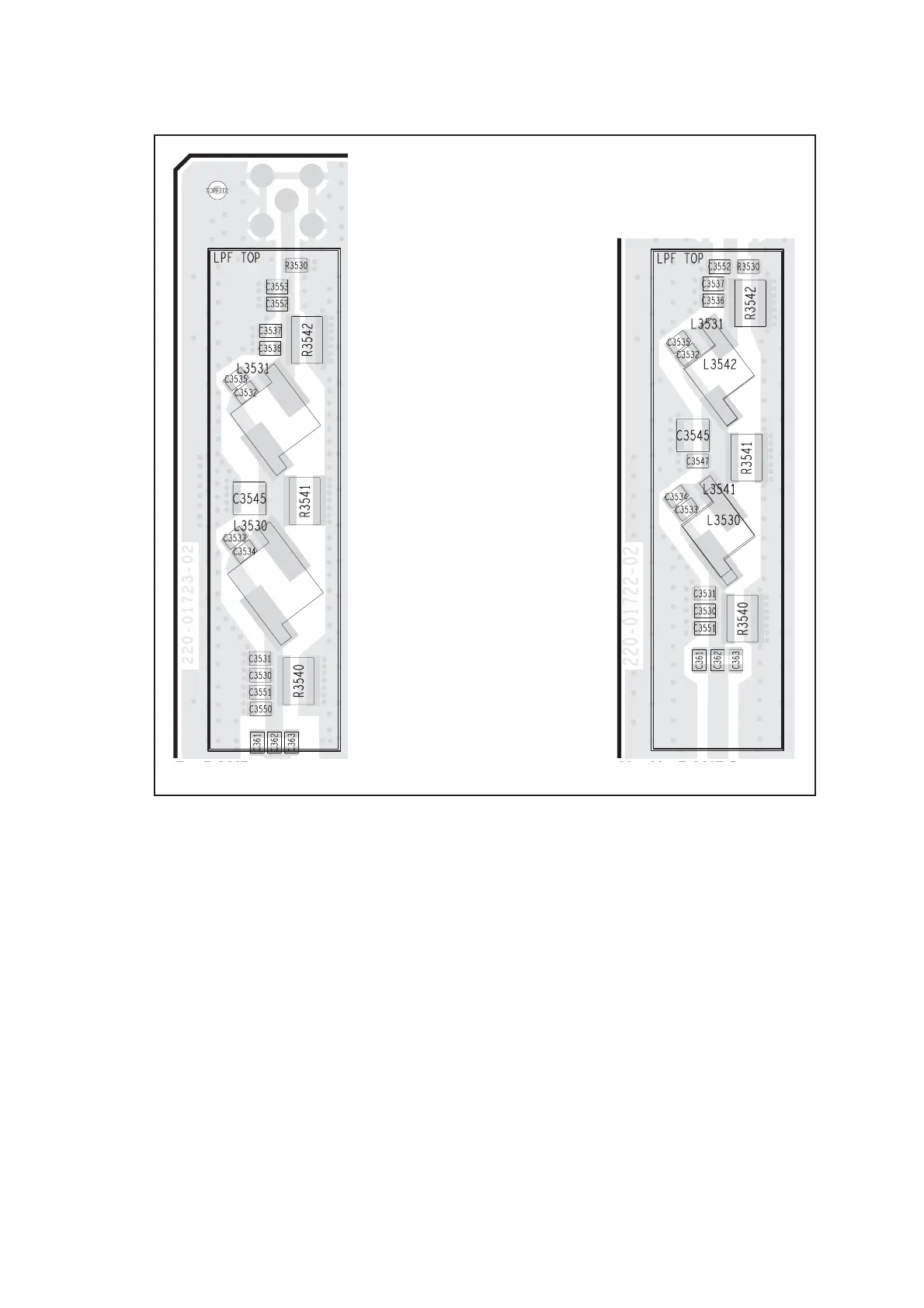

Figure 11.24 Circuitry under the LPF TOP can
B1 BAND H5, H7 BANDS
VHF UHF
