304 Transmitter Fault Finding (40W/50W) TM8100/TM8200 Service Manual
© Tait Electronics Limited June 2006

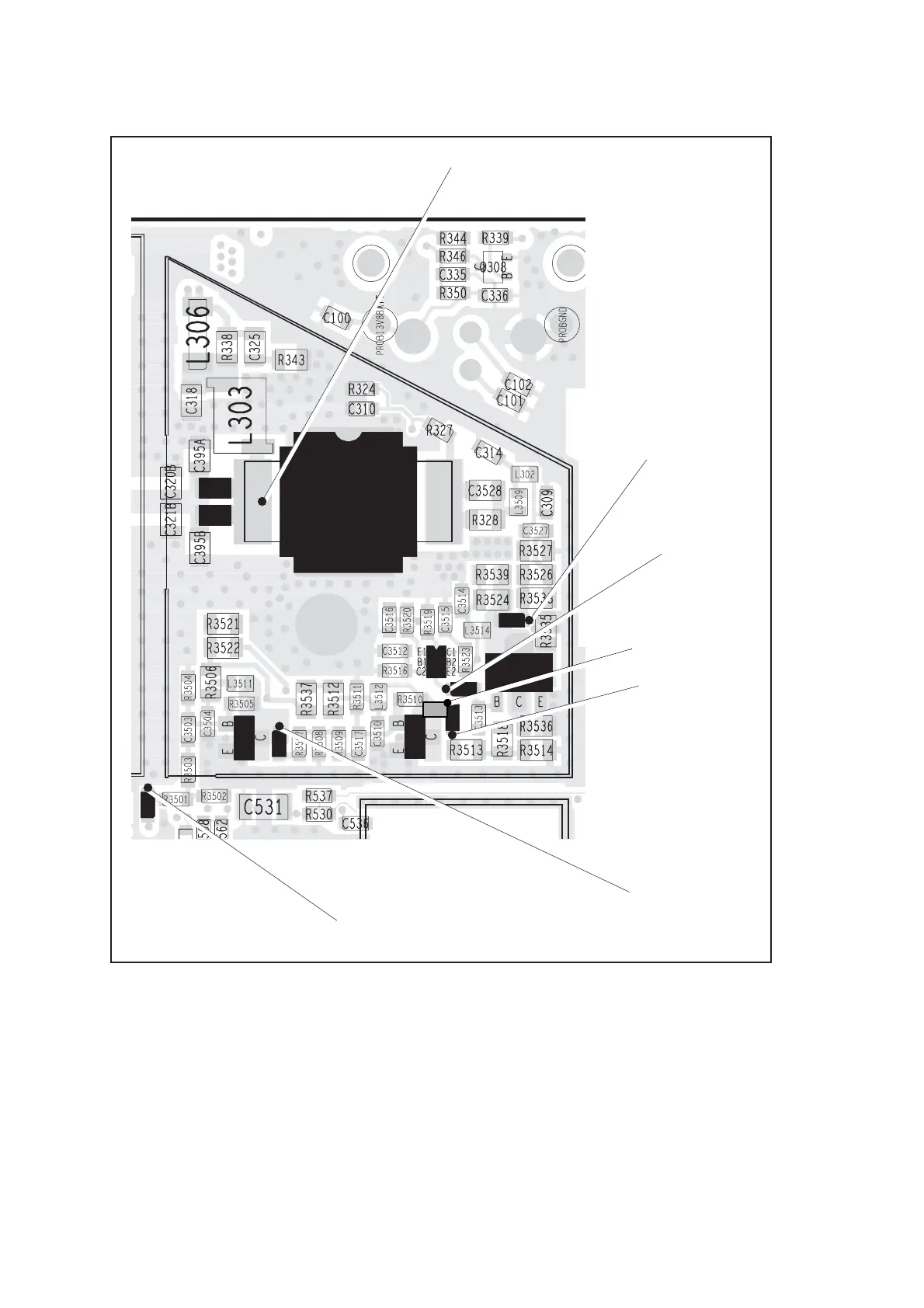

Figure 11.17 PA driver circuitry under the PAD TOP can (UHF shown)
PAD TOP
Q3504
C317
C389
Q306
C3500
C3505
C3509
C307
Q3501
Q3502
Q3505
H5, H7 BANDS
OUTPUT OF PA DRIVER
OUTPUT OF STAGE 3
OF EXCITER AT C307
R3525
JUNCTION OF
R3525 AND C3512
OUTPUT OF STAGE 2
OF EXCITER AT C3509
FCL TOP CAN
SYNTHESIZER
OUTPUT AT C3500
OUTPUT OF STAGE 2 OF
EXCITER AT C3505
C3509 (B1 BAND)
OUTPUT OF STAGE 2
OF EXCITER
