430 Fault Finding of Control Head with 1- 2- or 3-Digit Display TM8100/TM8200 Service Manual

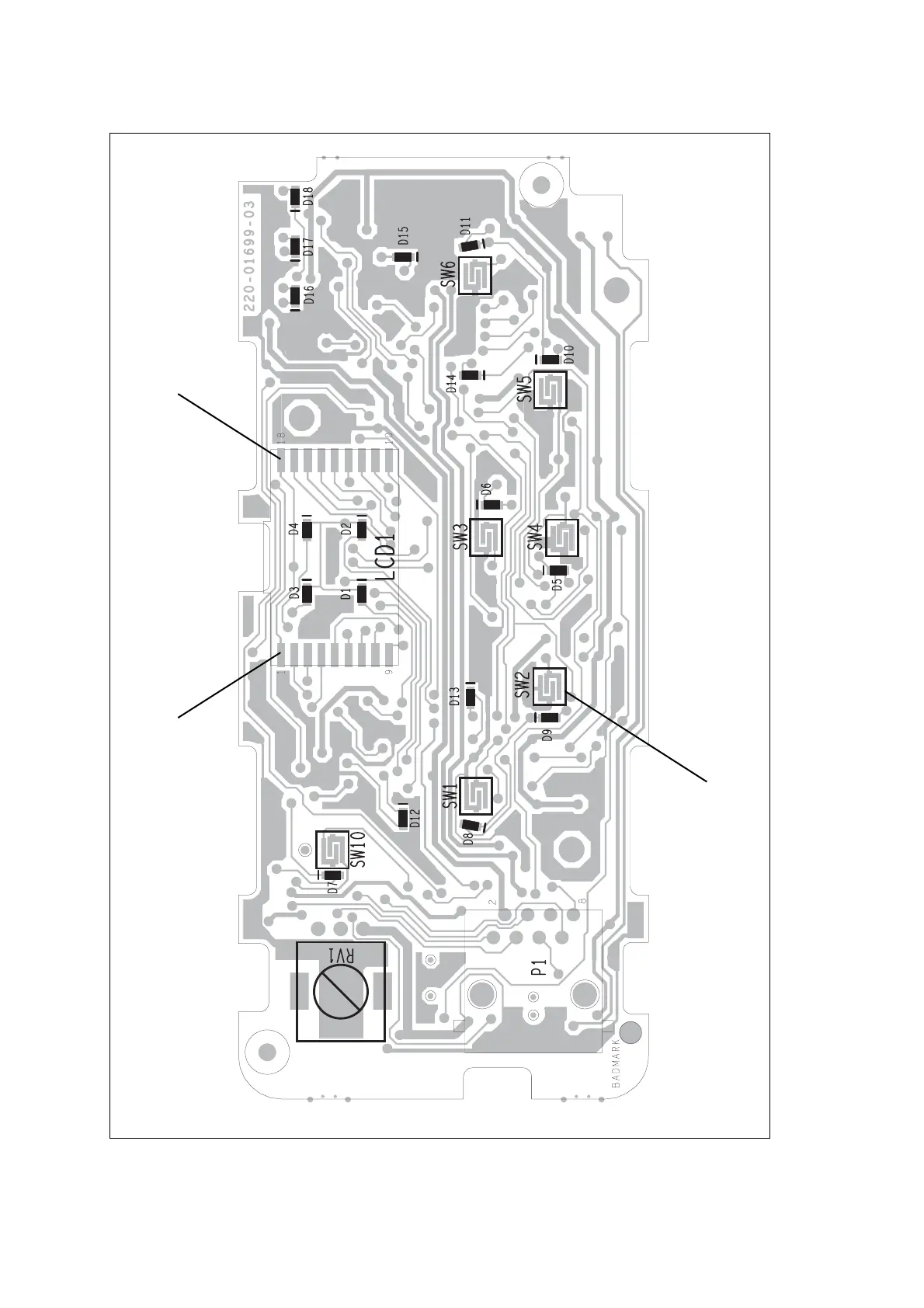

Figure 15.1 Top side of the control-head board (2-digit control head shown)

pads for LCDpads for LCD

pads for keys
