2. INSTALLATION

2.1 Main unit

Install the TF-711 main unit on a plane desk or a solid and plane wall with 4 pcs. of screws

and washers.

Caution: A print may become blurred if the installation place is uneven. In that case, put

some washers or suitable attachment to adjust the flatness as following figure.

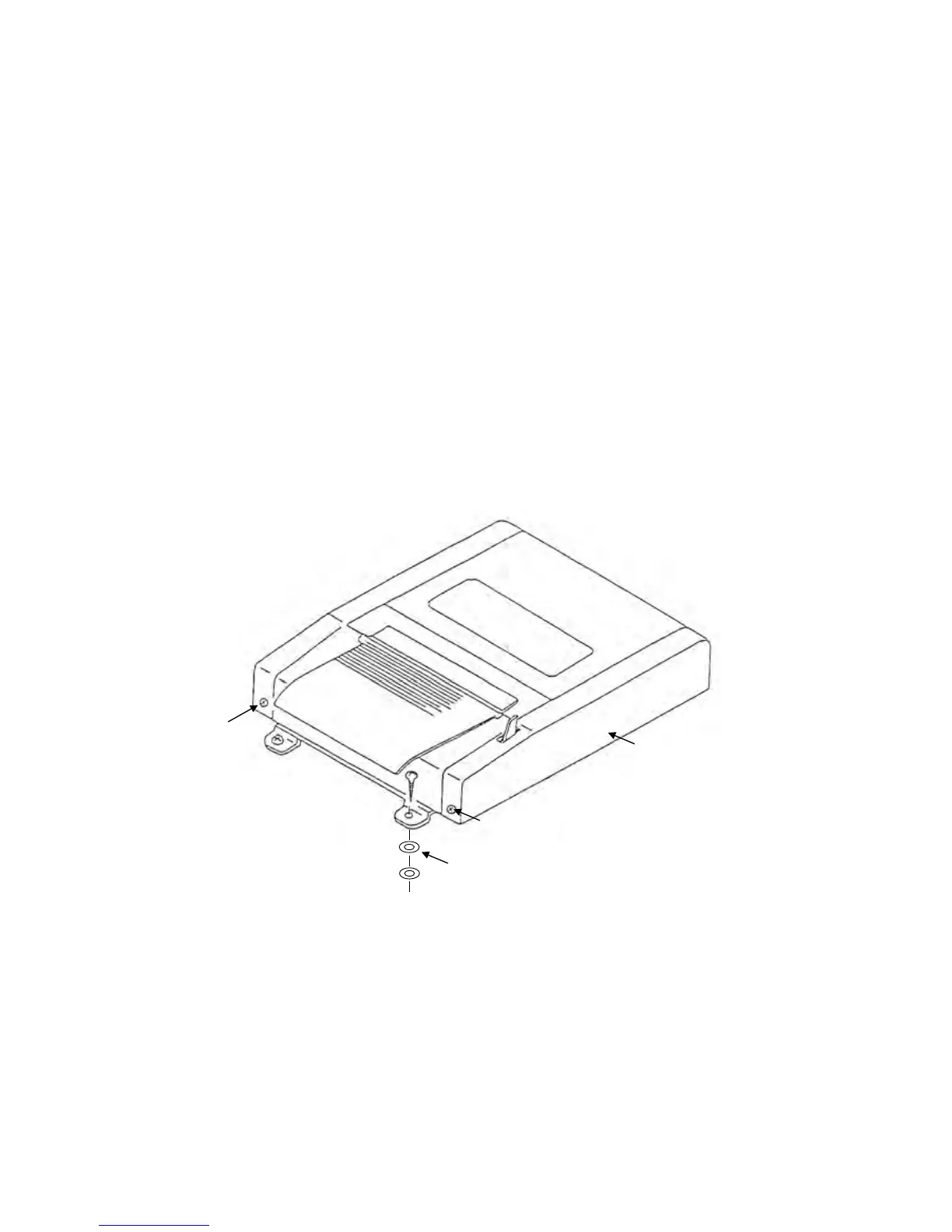

Setscrew for cabinet

Setscrew

For cabinet

Washer

TF-711 main unit
