2.2 Wiring of power supply cable
There are 2 kinds of power supply cable, DC power supply cable (2P), or AC power supply
cable (3P).
2.2.1 DC power supply cable
Use DC power supply cable when the main unit is DC power supply (DC 10 V – 40 V)
type.
Polarity is as follow;
Black wire : Connector socket 1 “–“ (minus)
White wire : Connector socket 2 “+” (plus)
2.2.2 AC power supply cable
Use AC power supply cable when the main unit is AC power supply (AC 100/115/200/230
V) type.
The voltage specified at the time of an order is set. When you change voltage, please
change a setup of the power supply part of the main unit.

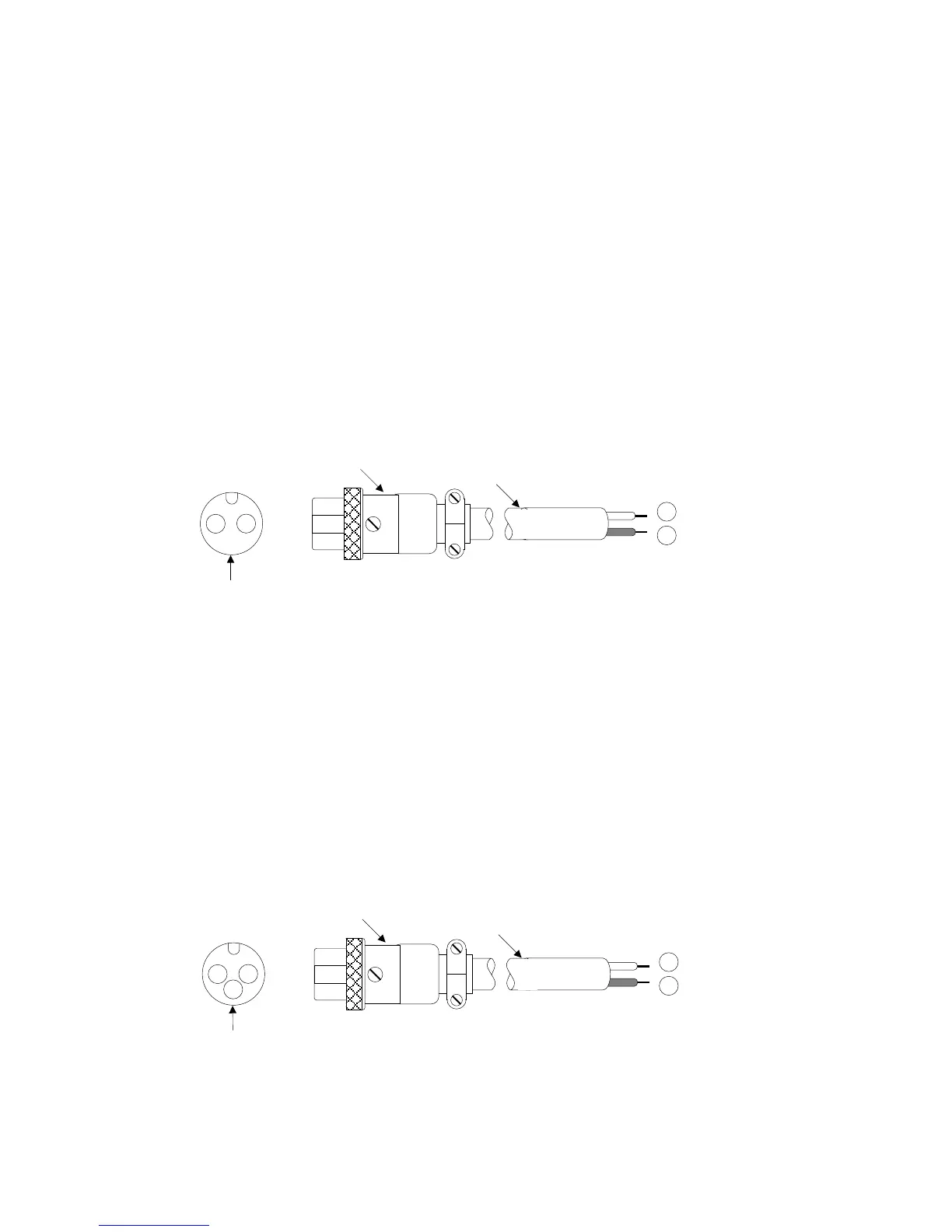

＋ (White)
2 1
16-P2F
Lookingfromreceptacleside
DCPowercableVCTF-0.75
2
1
− (Black)
(White)
2
1
16-P3F
Lookingfromreceptacleside
ACPowercableVCTF-0.75
3
1
(Black)
3
Nopolarity
